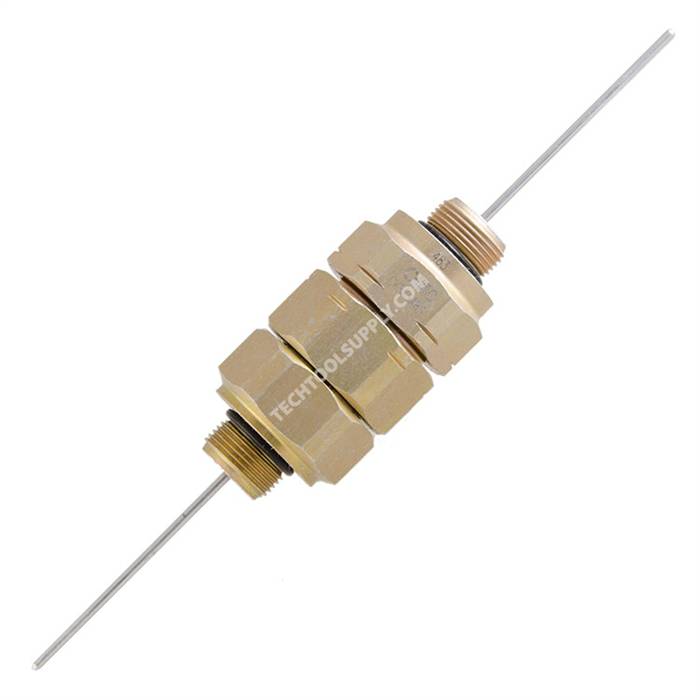

1 GHz Housing to Housing (Pin to Pin) Hardline Connector

1 GHz Housing to Housing (Pin to Pin) Hardline Connector




TTS PRICE: $12.29

STATUS:  IN STOCK



Availability:
Normally Ships Same Day

PRODUCT CODE: BEL-CKSKSARS
QUANTITY:

PRODUCT DESCRIPTION


This 1 GHz housing to housing coupling connector from PPC is a non-rotational connector designed to permit the cascadability of taps. Entry pins are fully weather sealed.

Specifications:
  • Quantity: 1
  • Bandwidth: 0 Mhz to 1 GHz
  • Impedance: 75 Ohms
  • Operating Voltage Rating: 90 Volts (@ 60 Hz continuous AC)
  • Operating Current Rating: 20 Amps (@ 60 Hz continuous AC)
  • Operating Temperature Range: -40 degrees to +140 degrees F

  • Suggested Tools Needed:
  • Two (2) 1-1/8” wrenches
  • Pin Cutters
