Arlington 2-Gang Pre-Wired Bridge Kit III

Arlington 2-Gang Pre-Wired Bridge Kit III




Alternative Views:


TTS PRICE: $102.09

STATUS:  IN STOCK



Availability:
Normally Ships Same Day

PRODUCT CODE: ARL-TVBR22K
QUANTITY:

PRODUCT DESCRIPTION

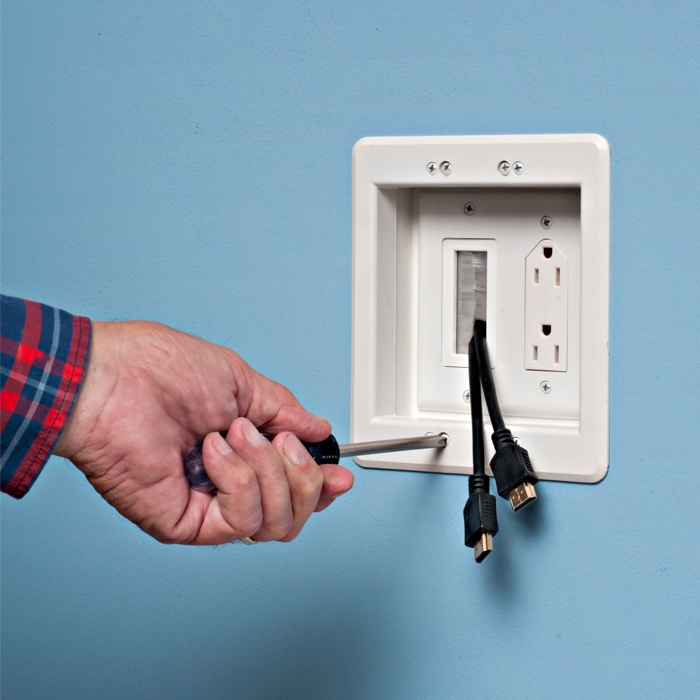

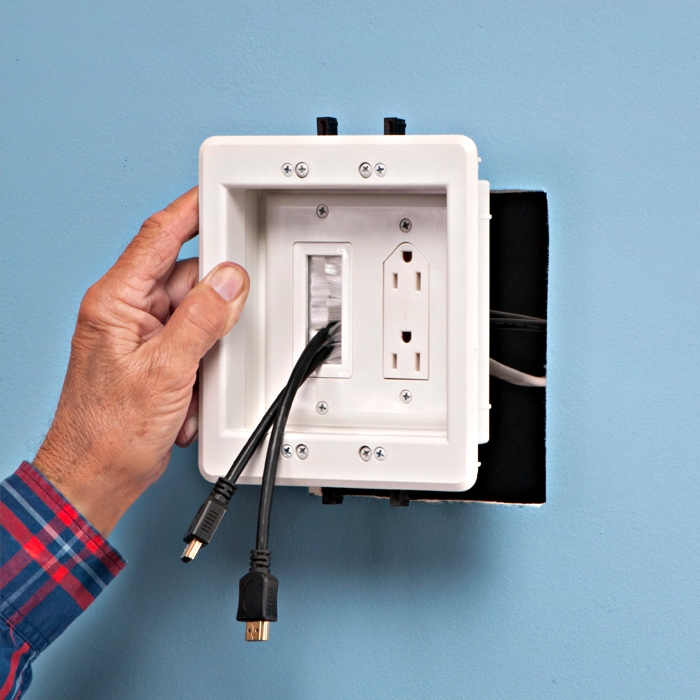

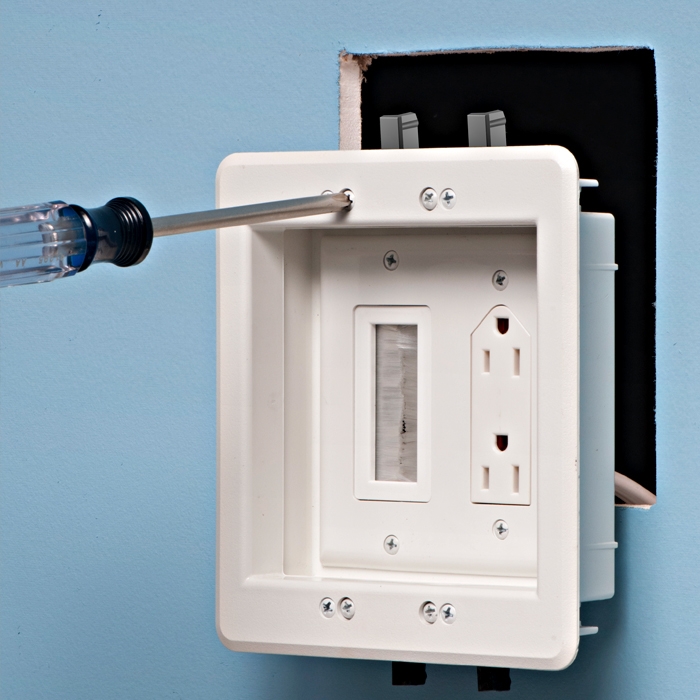

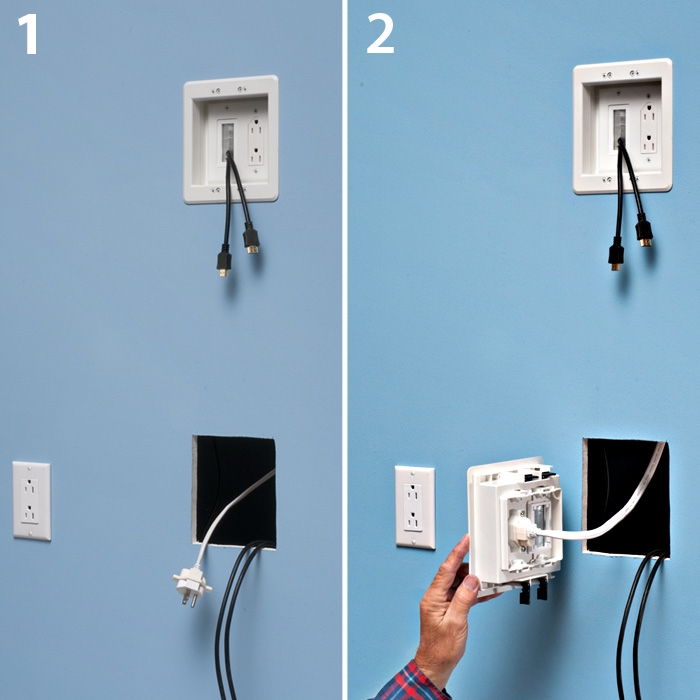

Arlington’s new UL Listed TV Bridge III kits are the easiest, fastest way to install a flat screen TV. Installation is faster because the kits are pre-wired and fully assembled. All you need to do is cut the openings in the wall – near a power source. There’s no need to cut framing members or to run power from a panel box. Then install two screws and tighten the four mounting wing screws that hold the boxes in the wall. That’s it.

Features:
  • UL Listed to meet NEC 400.7 (11) for interconnecting wiring between an existing receptacle and an inlet
  • Plugs and connections stay inside the recessed boxes; TV mounts flush against the wall

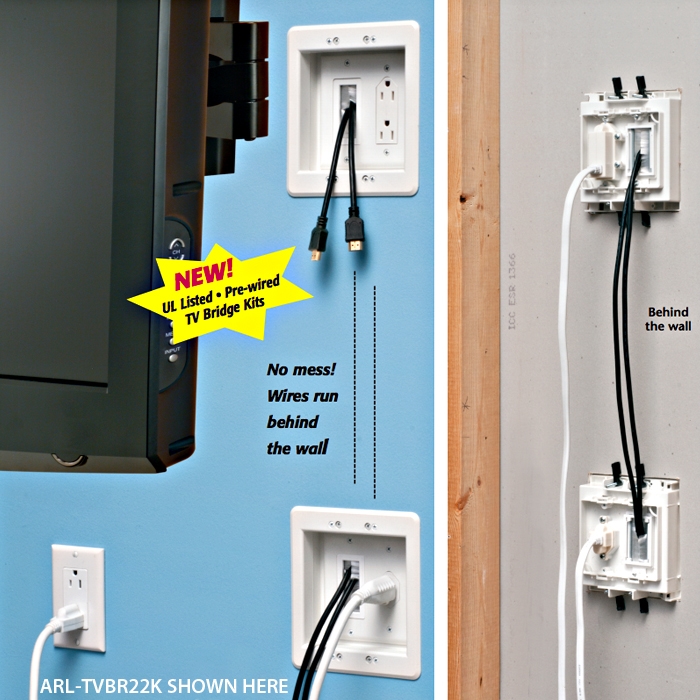

  • No mess! – wires stay hidden behind the wall

  • Specifications:
  • Upper Box: 2-Gang
  • Lower Box: 2-Gang
  • Color: White
  • Material: Plastic

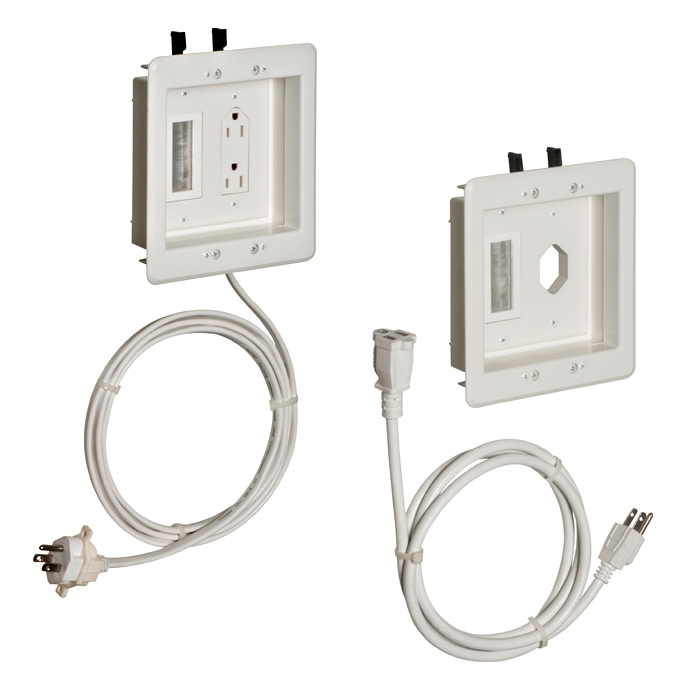

  • Kit Includes:
  • Pre-assembled UL Listed power cable with upper and lower mounting boxes with installed brush-style cable entry devices
  • 1 - UL Listed 6 ft, 14 gauge power extension cord
  • 2 - #8 x 1/2" pan head screws and template for cutouts

  • Arlington's Bridge Kit III Spec Sheet

    Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 1 WRITE A REVIEW

      So far, this Product Review was helpful to 0 TTS Customers.

    5 of 5 Made the job a breeze January 31, 2020
    Reviewer: Lynne from Marshfield, MA United States
    I was hesitating to mount my 52” tv due to the cables but this made the job simple. So glad I purchased this, very easy to install.
