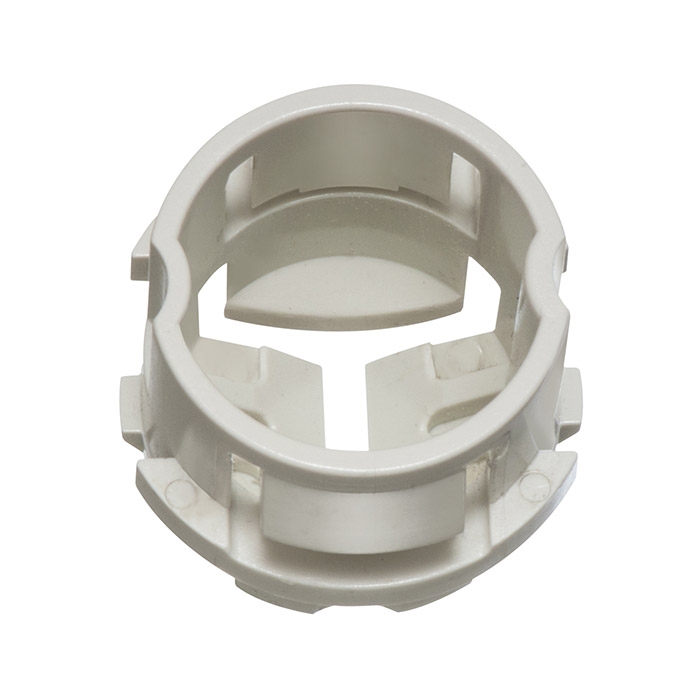

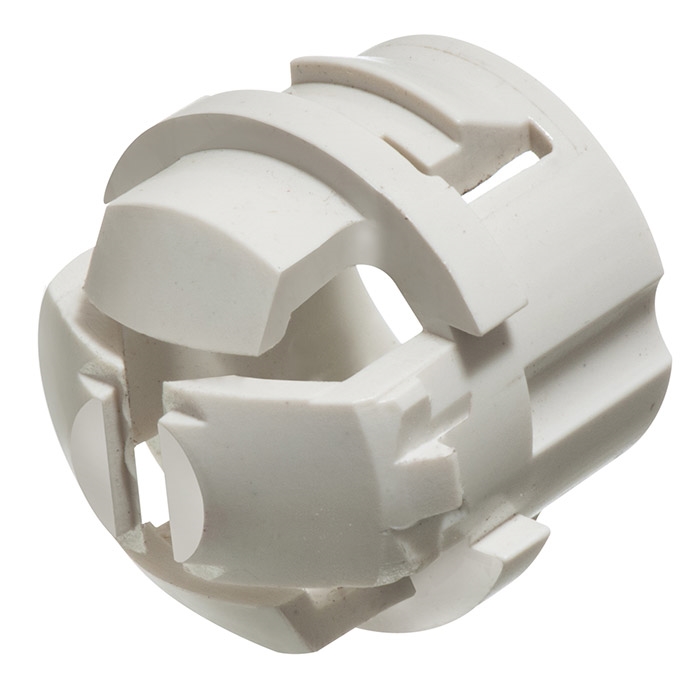

Save money with Arlington’s NM94X non-metallic NM cable connectors. They’re the lowest cost NM cable connectors on the market, and the fastest to install! Simply push the connector into the knockout, and you’re done.

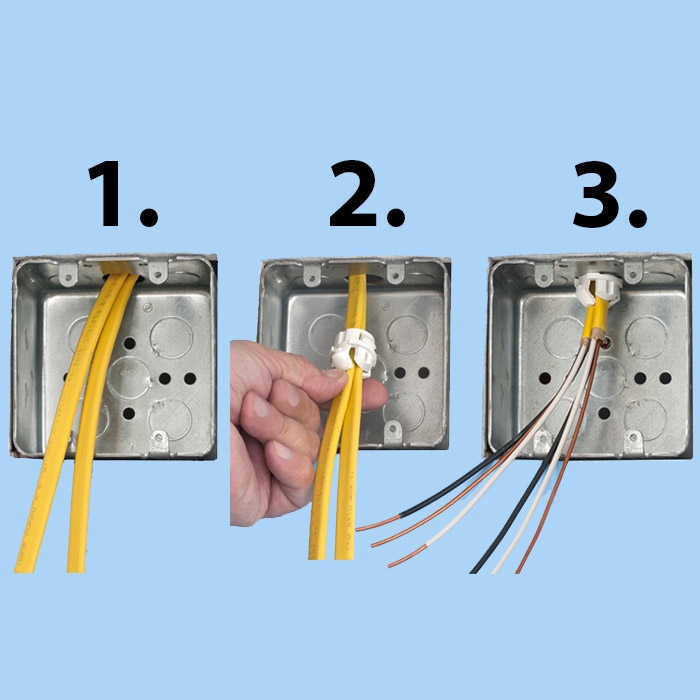

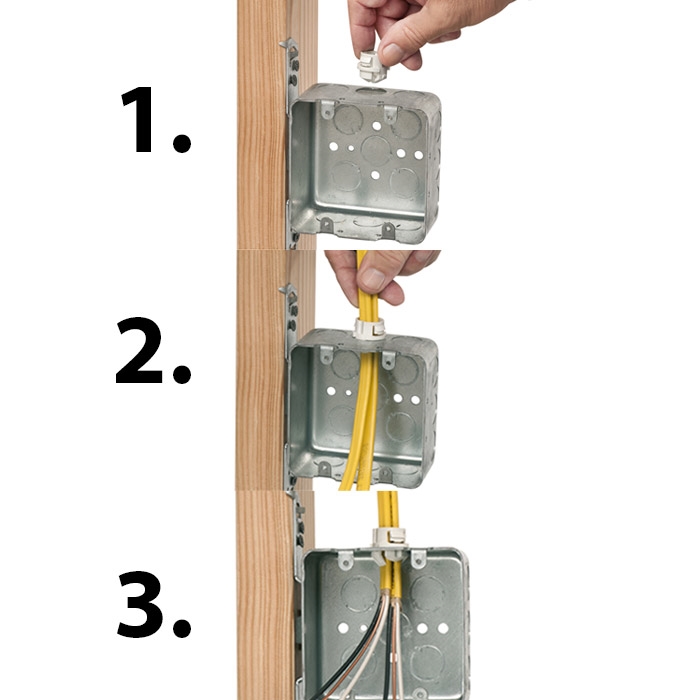

Listed for single or multiple cables, Arlington’s new White Button NM94X connector offers smooth, easy cable insertion of one or two cables into a single opening from the INSIDE or OUTSIDE of the box.

1/2" trade size NM94X holds:

One 14/2 to 6/2

One 14/2/2

One 12/4

One 12/2/2

One 14/3 to 10/3

Two 14/2 to 10/2

Two 14/3

Two 12/3

One 14/2 and One 12/2

One 14/2 and One 10/2

One 12/2 and One 10/2

Features:

Easy removal with pliers or screwdriver

UL Listed – exceeds UL and CSA pullout requirements

Made in the U.S.A.

Specifications:

Quantity: 100 Buttons

Size: 1/2in

Color: White

Material: Plastic

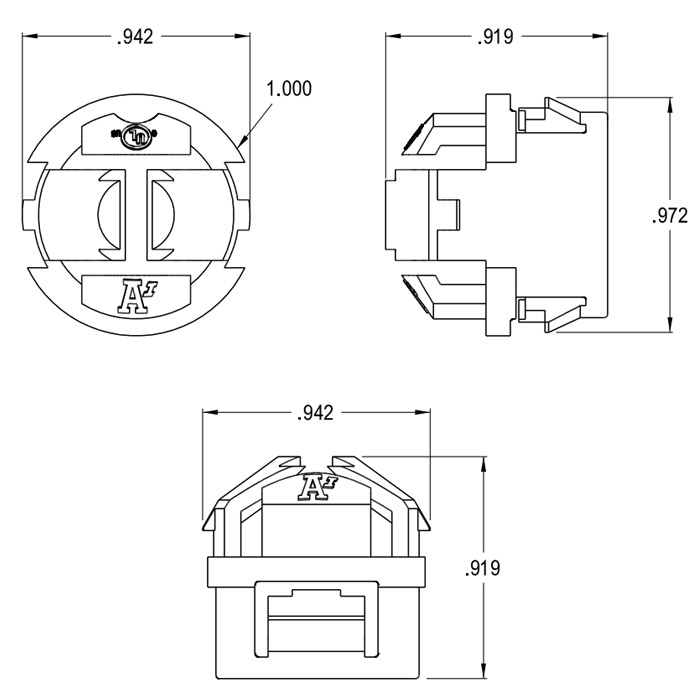

Height: 0.972"

Width: 0.942"
