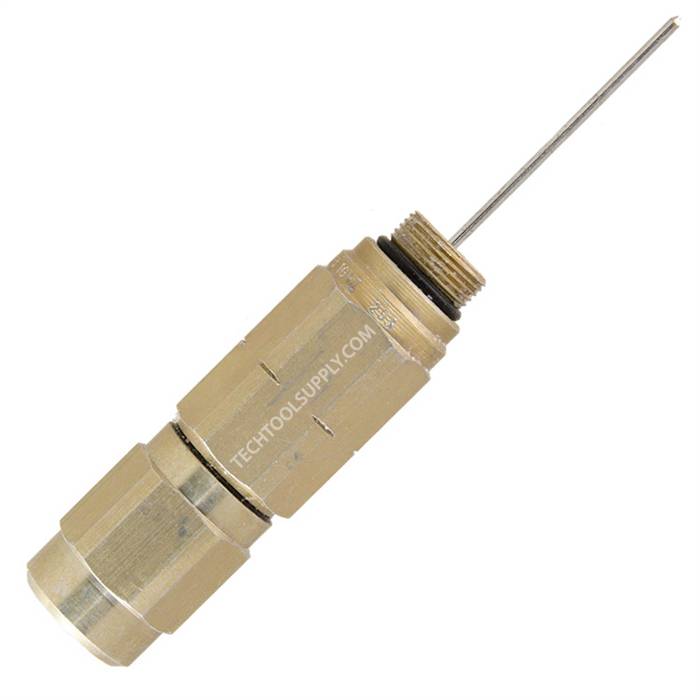

PPC Hardline 2pc Pin Connector for .500 P3 Cable

PPC Hardline 2pc Pin Connector for .500 P3 Cable




TTS PRICE: $6.29

STATUS:  IN STOCK


Availability:
Normally Ships Same Day

PRODUCT CODE: BEL-PP500P3
QUANTITY:

PRODUCT DESCRIPTION


PPC 2-piece .500 pin connectors designed to handle the challenges of today's digital cable networks including: high speed data, telephony, and performance beyond 1 GHz. PPC's hardline connectors are designed for all major CATV cable manufacturers.

2 Piece Product Specifications:
  • Bandwidth: 0 MHz to 1 GHz
  • Impedance: 75 Ohms (nominal)
  • Return Loss: Minimum -30 dB to 1 GHz
  • Insertion Loss: .05 dB at 500 MHz, .1 dB at 1 GHz
  • Surge Rating: 6 kV
  • RF Shielding Effectiveness: -120 dB
  • Operating Temperature: -40° F to +140° F (-40° C to +60° C)
  • AC Current (continuous): 20 Amps. Max
  • Meets or Exceeds all SCTE specifications

  • Construction for 2-Piece Hardline Connectors:
  • Heavy-duty 6262 alloy aluminum construction for superior corrosion resistance
  • Gold iridite plating for added protection
  • Ultraviolet-resistant EPDM O-Rings
  • Antigalling and long-life lubricant
  • Contacts: brass with tin plate for long life, impervious to aging and extreme environmental conditions
  • Withstands 40 PSIG pressurization
  • External 5/8-24 mounting threads
