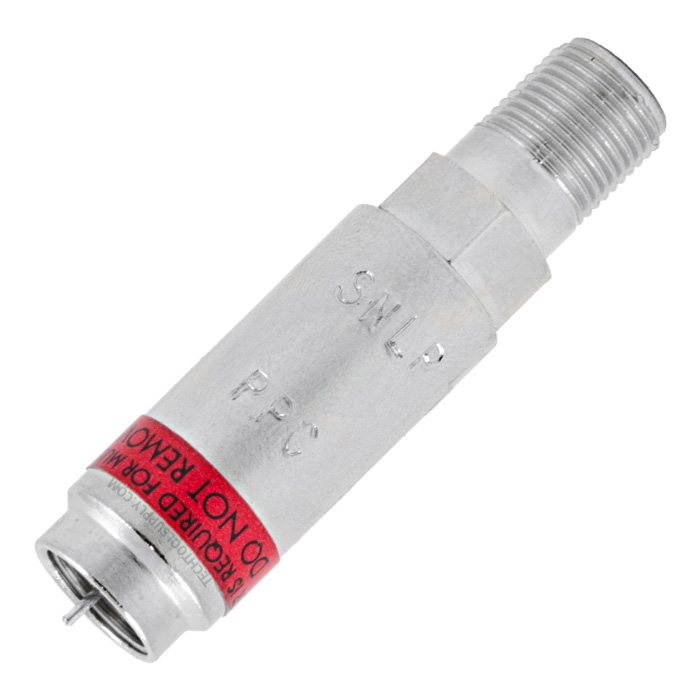

PPC MoCA PoE Filter, Combo Wave

PPC MoCA PoE Filter, Combo Wave




TTS PRICE: $10.89

STATUS:  IN STOCK



Availability:
Normally Ships Same Day

PRODUCT CODE: BEL-SNLP-1GCW
QUANTITY:

PRODUCT DESCRIPTION


PPC’s SNLP-1GCW MoCA filter offers next generation, future-proof technology. Designed not only to isolate a MoCA® signal and keep out interference in any Multi-room network devices like set top boxes and routers, the PPC MoCA filter also can be used in the house to protect the AGC in non-MoCA® devices like a cable modem. The PPC MoCA filter is DOCSIS 3.0 ready and is built to protect your network as technology and in-home services continue to advance in the future.

The PPC MoCA filter is optimized to protect your network and subscriber experience: it can withstand minor and major surges, keeping content flowing and service calls down.PPC also offers the only MoCA® filter in the industry with a built-in weather seal, offering guaranteed moisture protection as well.

Combo wave means that these parts will withstand/survive the 6kV 3000A combination wave surge test as defined by the SCTE.

Features:
  • Prevents interference between subscriber homes that use MoCA Technology
  • Supports a 1 GHz passband
  • Compliant to MoCA specifications
  • Enhances MoCA signal level within the subscriber’s home
  • Designed for ease-of-installation
  • Filters are bi-directional eliminating installation errors

  • Specifications:
  • Quantity: 1
  • Bandwidth: 5 MHz to 1525 MHz
  • Impedance: 75 Ohms (nominal)
  • Return Loss:
    • 5-860 MHz: -18 dB min
    • 860-1002 MHz: -14 dB min
  • Insertion Loss:
    • 5-750 MHz: -0.7 dB max
    • 750-1002 MHz: -1.5 dB min
    • 1125-1525 MHz: -40 dB min
  • Group Delay: 5 ns
  • Surge Withstand: 6 kV B3 Combo Wave
  • RFI Shielding: -140 dB
  • Operating Temperature: -40 F to +140F
  • Female Contact Retention Force: 200 grams
  • Physical Dimensions (inches): 0.50x1.94

  • PPC’s SNLP-1GCW Spec Sheet
