Signal Vision SV-05 5/8in to F Test Probe - AC Blocked

Signal Vision SV-05 5/8in to F Test Probe - AC Blocked




Alternative Views:
TTS PRICE: $49.79

STATUS:  IN STOCK



Availability:
Normally Ships Same Day

PRODUCT CODE: SV-05
QUANTITY:

PRODUCT DESCRIPTION

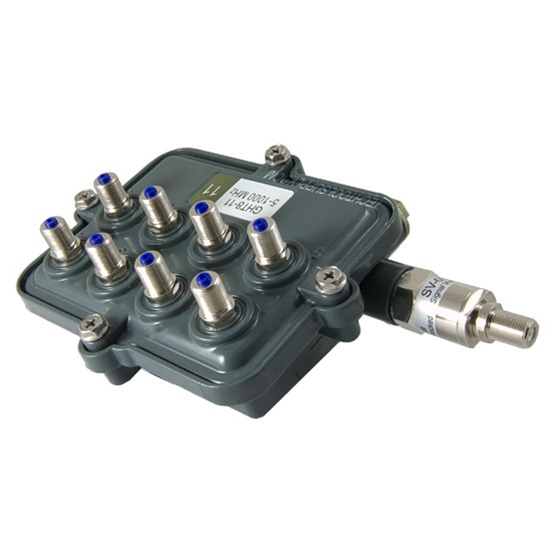

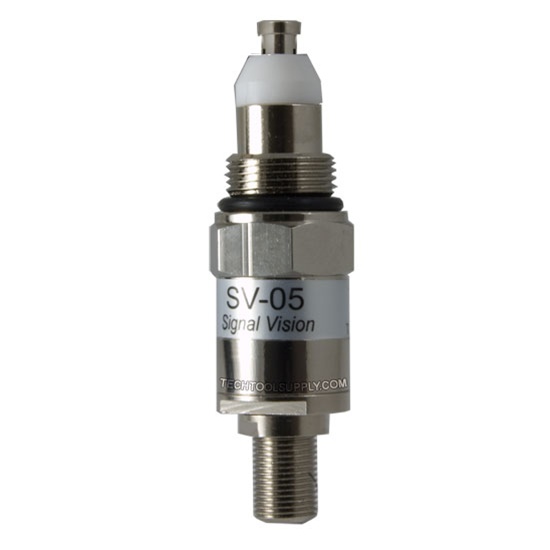

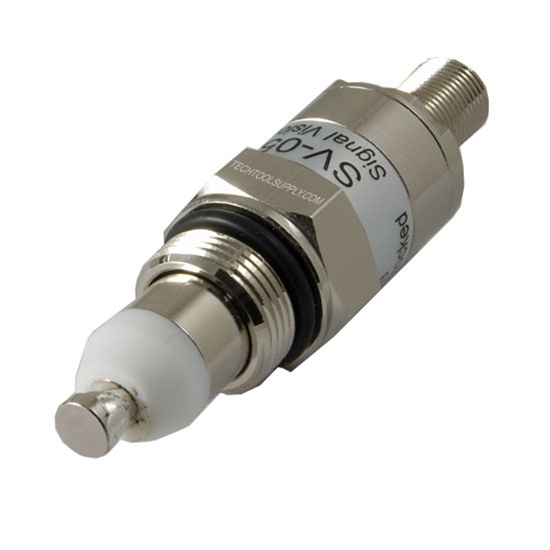

Signal Visions SV-05 is designed for technicians working on Taps, Line Extenders, Directional Couplers, Splitters, or any other component that uses 5/8" entry ports. With the SV-05 Test Probe adapter, you can quickly and easily measure a reading directly from the component while voltage is still live! The units built in AC block will protect signal meters not designed to measure AC voltage.

Features:
  • All brass construction
  • Spring loaded, Teflon protected tip ensures accurate and safe measurements
  • Fits 5/8" entry ports
  • RF -20 dB
  • AC blocked

    • Specifications:
  • Impedance: 75 ohm
  • Operating Frequency Band: 5 1002 MHz
  • Insertion Loss: 20 dB
  • Frequency Response: 1.0 dB
  • Return Loss, input, minimum: 15 dB
  • Shielding Effectiveness, minimum: 100 dB
  • Safety Standard: CE | EN 60728?4 | SCTE
  • RoHS 2011/65/EU Complaint
  • ISO 9001:2008
    •
