Vericom RG6 Coaxial Cable 1000ft Reel In Box - Black

Vericom RG6 Coaxial Cable 1000ft Reel In Box - Black




Alternative Views:
TTS PRICE: $93.99

STATUS:  IN STOCK


Availability:
Normally Ships Same Day

PRODUCT CODE: VER-XRG06-02404
QUANTITY:

PRODUCT DESCRIPTION

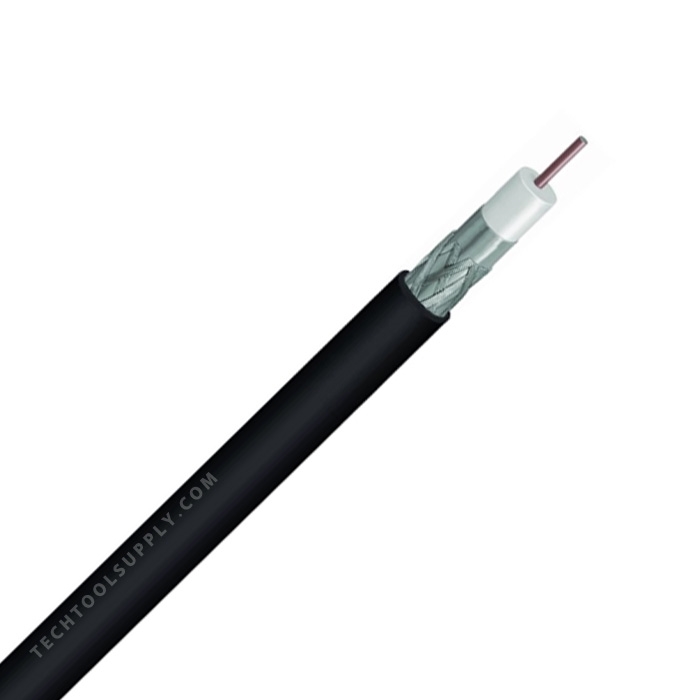

The XRG06-02404 1000 foot spools of RG-6 coaxial cable from Vericom have an insulated central conductor and are perfect for low loss, high frequency applications. The most commonly recognized use for RG-6 is for CATV and satellite applications. RG-6 are typically fit with different types of connectors at each end. In CATV distribution, these are F connector style; in professional base band video, BNC connectors; and in consumer A/V uses, other than RF and CATV, RCA plugs.

Features:

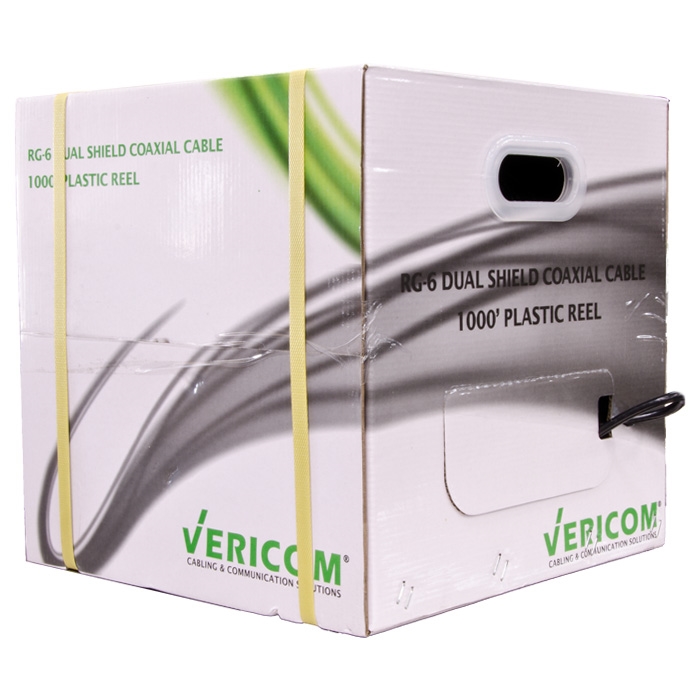

  • Reel In Box Packaging Design
  • 18 AWG Copper Clad Steel
  • Dual Shielded 60% braid
  • UL Listed
  • CM Rated

    • Specifications:
  • Length: 1000ft
  • Cable: RG6
  • Color: Black

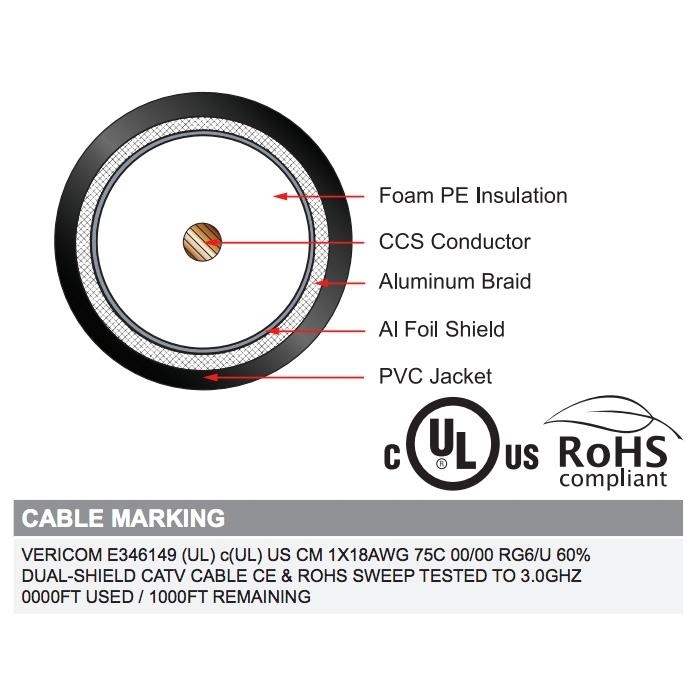

  • Conductor Material: CCS
  • Conductor Size: 18 AWG
  • Dielectric Material Type: Foam PE
  • Dielectric Nom. Diameter: 4.57 mm
  • Shield Material: Bonded Al Foil + Al Braiding
  • Shield Coverage: 60%
  • Jacket Material: PVC
  • Jacket Nom. Diameter: 6.9 mm
  • Jacket Flame Rate: CM

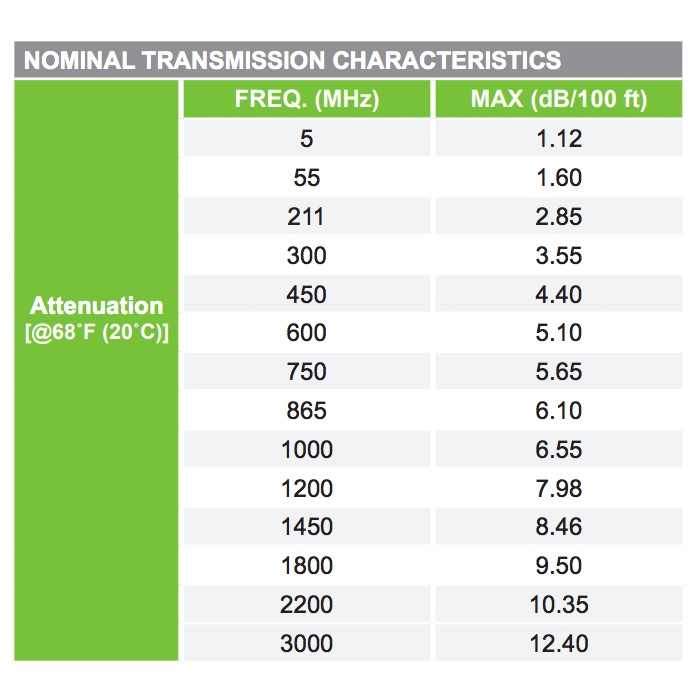

    • Electrical Characteristics:
  • Nominal Impedance 75 ohms
  • Nom. Vel. of Propagation: 83%
  • Nominal Capacitance: 52 pF/m
  • Sparker Test: 4000 VAC
    •
