104pc Platinum Tools EXO EZ-RJ45 Kit (CAT5e)

104pc Platinum Tools EXO EZ-RJ45 Kit (CAT5e)




TTS PRICE: $154.99

STATUS:  IN STOCK



Availability:
Normally Ships Same Day

PRODUCT CODE: PLA-EXO-KIT-62C
QUANTITY:

PRODUCT DESCRIPTION


This kit includes everything you need to properly terminate CAT5E cable with RJ45 ends. This kit includes Platinum Tools newest crimper which consists of the EXO tool and EX-RJ45 Die.

Are you new to EZ-RJ45? Looking for a simple to learn RJ45 connector for your technicians? This is it!

This EZ-RJ45 Kit includes everything you see in Platinum Tools EZ-RJ45 termination video as seen below. With this kit, you will be able to make perfect RJ45 terminations on CAT5e.

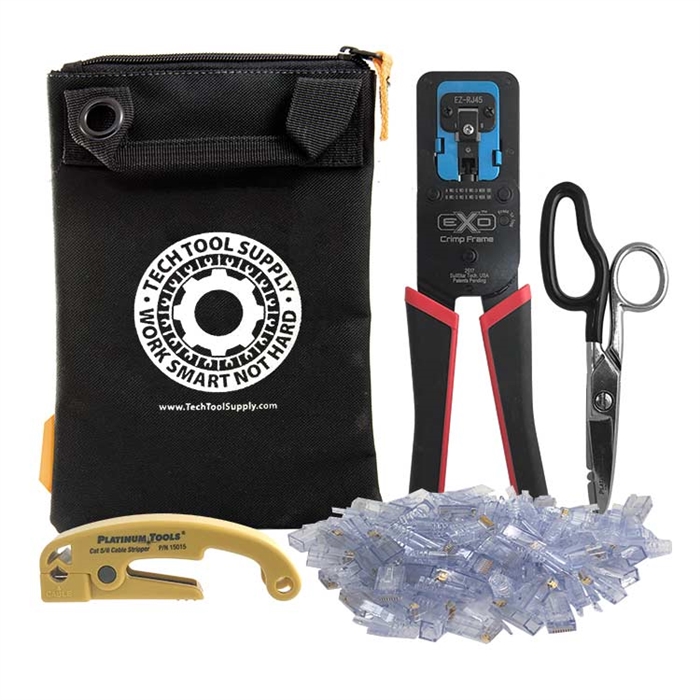

Kit Includes:
  • EXO Frame & EZ-RJ45 Die / Crimping Tool (PLA-100062C)
  • Pro Electricians Scissors (10525)
  • CAT5/6 Stripper (15015)
  • 50 EZ-RJ45 CAT5e Connectors (202015J)
  • 50 Strain Reliefs (202015J)
  • TTS-SGB Tool Pouch

  • What's so special about EZ-RJ45: The patented EZ-RJ45 Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician to easily verify the proper wiring order. Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. Reducing the distance between the wire twists and contacts improves performance! Reduces scrap, no wasted crimps. More reliable, higher performance. Crimp with the patented EZ-RJ45 Crimp Tool...crimps and trims in one cycle. Manufactured in the USA. Patented.

    Features:
  • Thru holes allow wire pairs to be inserted thru front of connector for faster terminations
  • Works with solid or stranded wire
  • Simple one piece design...no bars or liners
  • FCC compliant, UL rated. Use in category 3, 5, 5E compliant data networks
  • RoHS compliant
  • EZ to verify wire sequence

  • EXO EZ-RJ45 Crimping Tool: We are huge fans of manufacturers that are forward thinking with their product development; the EXO Crimp Frame is a great example of that. As technology advances, wire and connectors are going to continue to evolve. Platinum Tools EXO Crimp Frame is engineered to allow users to swap out dies as needed and avoid having to purchase an entirely new tool. The EXO Crimp Frame has dies available for EZ-RJ45 (included) as well as the newer exEZ-RJ45 connectors (not included).

    The patented EXO Crimp Frame + EZ-RJ45 Die from Platinum Tools was designed for easy termination of EZ-RJ45 connectors. The included EZ-RJ45 Die is interchangeable and reversible when used with the EXO Crimp Frame. The 100062C is designed for the original pass through EZ-RJ45 connectors which are a standard in the industry. The EXO Crimp Frame highlights a push button lock, ergonomic TPR handles, and works with the EXO-EX Die (Part Number PLA-100071C) for terminating ezEX-RJ45 connectors where cable diameters are larger.

    In today’s networks, twisted pair cables are demanding more speed and bandwidth. To help meet these requirements, Cat5e/6/6A cables have increased in size. Both the outer diameter of the cable and the insulation diameter of the conductors are larger and vary by manufacturer, making cable and connector compatibility a challenge. The new patented ezEX-RJ45 Termination System is the solution — providing greater cable to connector compatibility to meet higher performance demands. The ezEX-RJ45 connectors feature a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating.

    Features:
  • Single cycle crimp and flush trim
  • EZ-RJ45 Die is easily interchangeable
  • Reversible EZ-RJ45 Die for ambidextrous operation
  • Connectors lock into tool for correct positioning during crimp
  • Push button lock for easy storage
  • Ergonomic comfort grip TPR handles
  • Includes the EZ-RJ45 Die for crimping EZ-RJ45 connectors
  • EXO Crimp Frame works with EXO-EX Die for crimping ezEX-RJ45 connectors

  • Scissors: Platinum Tools Professional Electrician's Scissors are designed for use in electrical, telephone and datacom service applications. The ergonomically designed large ring provides more power while reducing fatigue and wrist strain. The bottom blade features serrated teeth for gripping cable and wire. The Professional Electrician's Scissors are a great addition to any tool kit.

    Features:
  • Cuts stranded wire to 12 AWG
  • Cuts solid wire to 16 AWG
  • Trims kevlar in fiber optic cable
  • Strips 19 to 23 AWG wire
  • Serrated edges on back of blades for cleaning wire and binding posts

  • CAT5/6 Stripper: This economical tool has been specifically designed to strip the cable jackets from Category 5 and 5e twisted pair cables. No adjustments are required and will not nick the inner conductors. Durable high impact plastic housing is molded from yellow plastic to make it easier to locate. Long life blade.

    Features:
  • Designed for stripping the cable jacket on Category 5, 5e cables
  • No adjustments required
  • Will not nick inner conductor


    Average Customer Review: Average Customer Review: 4 of 5 4 of 5 Total Reviews: 1 WRITE A REVIEW

      So far, this Product Review was helpful to 0 TTS Customers.

    4 of 5 Great Tools, Great Bag, Not necessarily together March 8, 2020
    Reviewer: Samuel Paioletti from Cedar City, UT United States
    I like the updated EXO tool, especially the changeable die. I'm a huge fan of these Tech Tool bags also, but its a little hard to get mine to zip up all the way (though it does close eventually with some repositioning) the bag is just half an inch to short to fit the tool comfortably. May just be my experience but I ended up using a different case i had for the tool and repurposed the TTS bag for something else.

    Still a happy customer though!
