The PulseAudio PA230SWA is an in-wall streaming audio receiver with a built-in 2x30W amplifier in a single gang wall plate form factor, which creates a simple distributed distribution audio system to stream music over a wireless internet connection. Install in one zone or multiple zones, a great solution to stream music and create wireless distributed audio system, all while using the easy-to-use and intuitive PASTREAM app! Play and control music, downloaded or streamed from your phone, tablet, or computer. The PA230SWA is compatible with Airplay, and Wi-Fi Direct that are found within the same network, allowing for songs to be shared easily in a distributed audio system.
In addition, a mobile app is available on iOS and Google Play marketplaces and allows the end-user to sync their Spotify, Amazon Music, Qplay, TuneIn, iHeartRadio, and Tidal accounts for an effortless and enhanced listening experience. Multiple PA230SWA amplifiers can be used within the same systems allowing everyone to listen to their own music and playlists or join multiple units together for a party mode!
Features:
Stream music directly or through a connected network
Mobile control app available on iOS and Android marketplaces
Compatible with Airplay, and WiFi Direct devices that are found within the same network, allowing for songs to be shared easily in a distributed audio system
Allows the user to sync their Spotify, Amazon Music, Qplay, TuneIn, iHeartRadio, and Tidal accounts for an effortless and enhanced listening experience

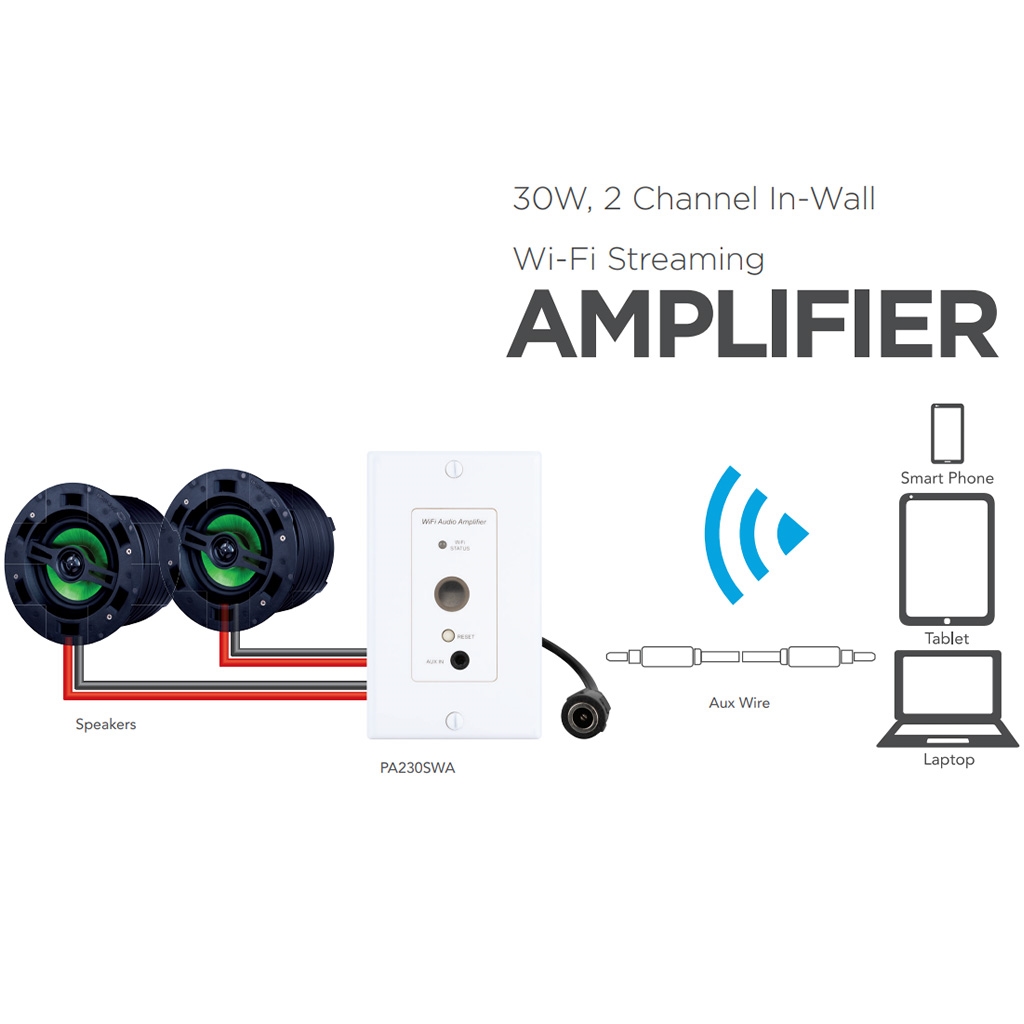

Install for one zone or multiple zones with additional units that can be joined together to create a wireless distribution system
Multiple PA230SWA amplifiers can be used within the same systems allowing everyone to listen to their own music and playlists or join multiple units together for party mode
Specifications:
Wireless Network: IEEE802.11 b/g/n 2.4G
Power Input: DC 24V
Output Power: 2x30W; 8ohm
Audio Source Input: 3.5mm Phone Jack
Frequency Response: 20Hz to 20kHz
EQ (Bass/Treble): ±10db
Music Format: MP3/WMA/AAC/AAC+/ALAC/FLAC/APE/WAV
OS: iOS, Android
Application: PASTREAM
Music Platforms: Spotify, Qplay, TuneIn, iHeartRadio, Tidal, and Napster; supports Airplay, and WiFi Direct for additional listening
options
Weight: 0.22 lbs (100g)
Dimensions: 2.8” x 4.5” x 2” (70mm x 114mm x 50mm)
Kit Contents:
PA230SWA Amplifier

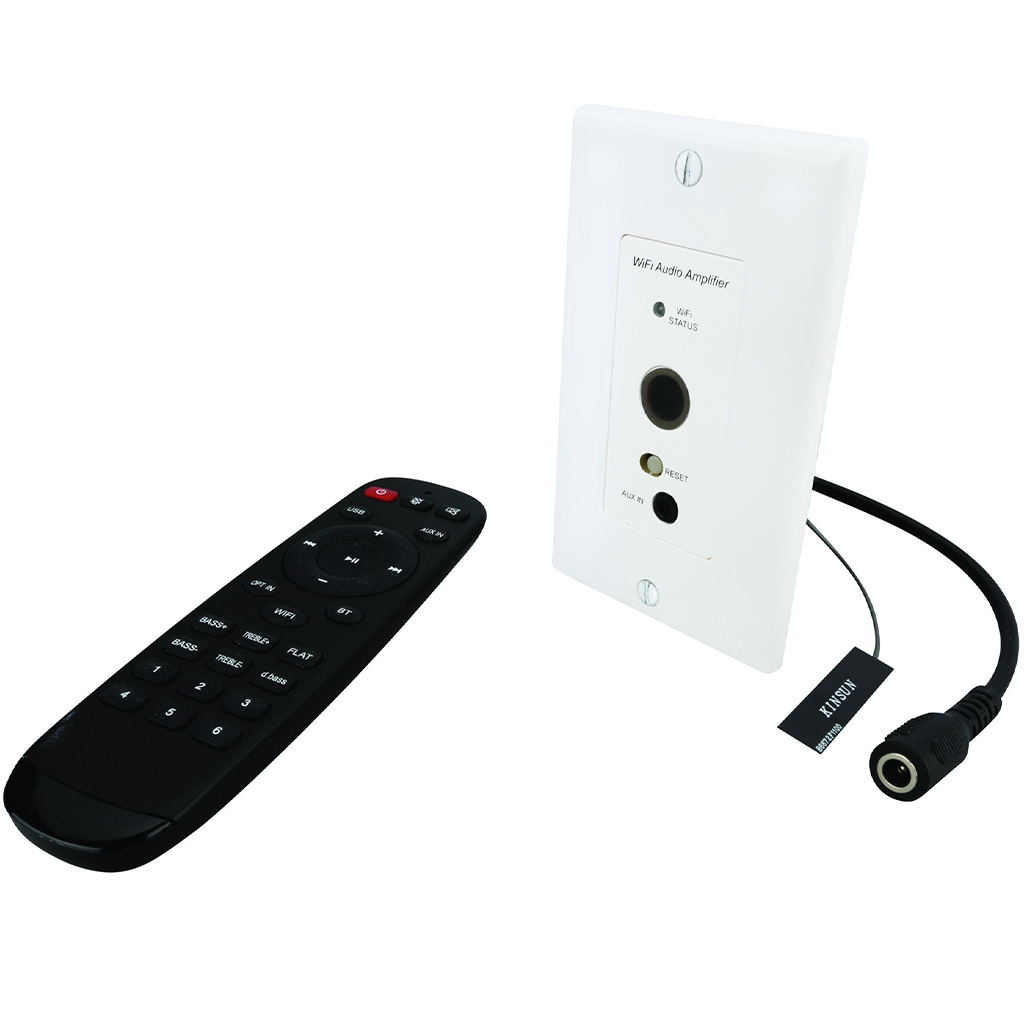

IR Remote
Power Adapter
4-Terminal Phoenix Connector
White Single Gang Decora Wall Plate
Mounting and installation screws
Product Manual
The PA230SWA does not have a WPA button. When setting up the unit with the app, click on NEXT when prompted, then select CANCEL to manually configure PA230SWA
|
|
|
 |
|
 |
|
