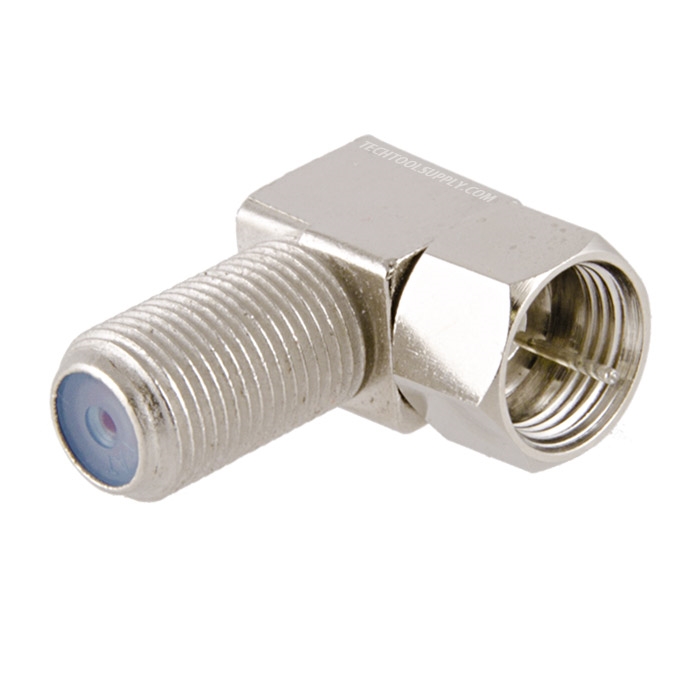

Holland Electronics right angle adapters are one of the highest quality 3GHz adapters available on the market today. Holland's Patented Pin seizure mechanism offers twice the pin contact area and holding force as compared to conventional right angle adapters. This allows for the higher current handling required by newer satellite systems and offers long-term reliability.
Advantages of Holland's Premium Design
Lower Insertion Loss:
The F90-HR has approximately 1/3 the insertion loss of standard adapter at higher frequencies.(Savings of over .5 dB at 2 GHz).
Higher Return Loss:
With a return loss of over 35 dB @1 GHz, as compared to 13 dB for standard adapters, the F90-HR can assure a higher match resulting in faster digital speeds. The F90-HR series exceeds current SCTE minimum RL levels of 20 dB.
Round, Multi-Point Seizing Pin:
The patented multi-point seizing pin provides a larger contact area than standard, dual flat pin splices. This results in lower contact resistance and thus higher current handling capability when needed, as well as a greater resistance to long term center conductor oxidation. The patented design also creates a mild wiping action which removes a few microns of oxidation upon insertion.
Beryllium Copper Seizing Pin
The use of the more expensive beryllium copper material for the center conductor seizing pins insures a greater holding force than the traditional phosphor bronze or copper pins used in standard splices. The advanced material also maintains a higher spring tension over repetitive insertions.
Accepts a Wider Range of Cable Center Conductors:
Due to the greater elastic capability of beryllium copper, the F90-HR series can accept a wider variation in cable center conductor sizes and maintains its high strength on the smallest cables even after repetitive insertions of the largest cables.
Specification Sheet.
|
|
|
