3M B/G Performance Plus Wire Connector - 50pc

3M B/G Performance Plus Wire Connector - 50pc




Alternative Views:


TTS PRICE: $24.99


STATUS: ON ORDER


Availability:
Normally Ships Same Day

PRODUCT CODE: 3M-B-G-POUCH
QUANTITY:

PRODUCT DESCRIPTION

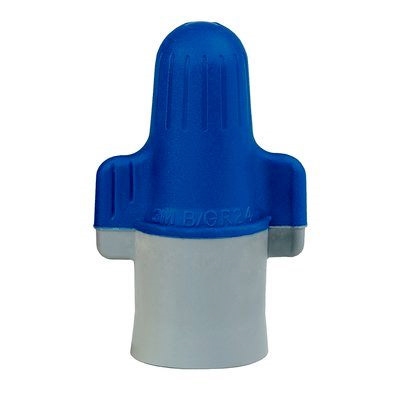

3M's B/G + covers both the large blue and gray connectors. This simplifies selection of the right connector for a wide range of wiring jobs. There's also less inventory to manage, and a better chance you'll have the connector you need to do every job.

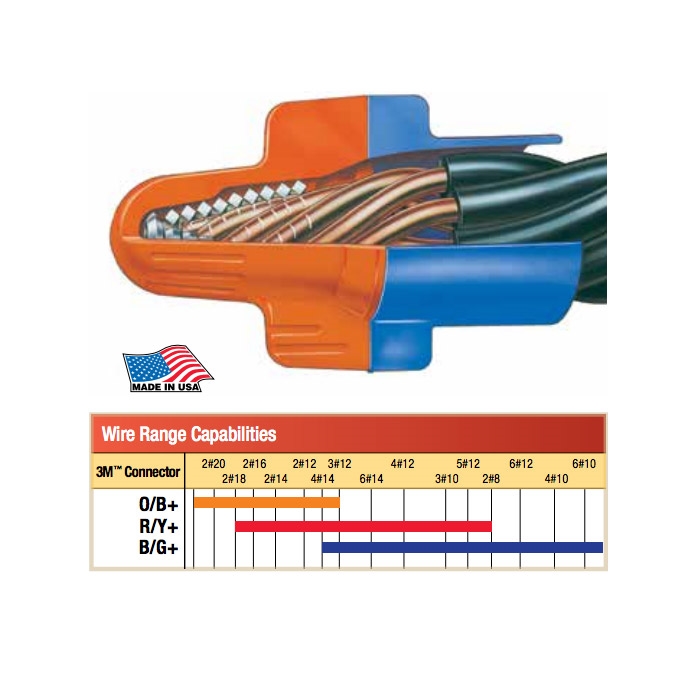

The rounded wings make 3M wire connectors exceptionally easy to handle. The flexible skirt covers over-strips yet conforms to whatever space is available in a box. Inside, the unique spring grips quickly and bites into conductors for solid, secure connections. These connectors are UL listed for 600 volts on copper wire.

Features:
  • In a pigtail application it offers a strong bite so you get a long-lasting connection
  • Features an expandable spring that lets you take in more wire and allows you to use again
  • The B/G+ is dual color-coded so this 1 connector replaces your traditional blue and gray connectors
  • Ideal for all kinds of jobs - from industrial and residential construction, to automotive, marine and appliance applications
  • Use with copper conductors ranging from 14 to 6 AWG
  • Built with polypropylene and thermoplastic elastomer material
  • Blue/gray connector is flame-retardant and operates in temperatures up to 221 degrees F (105 degrees C)
  • Use on building wire rated 600V and on signs, fixtures or luminaires rated 1000V
  • UL Listed and CSA Certified

  • Specifications:
  • Quantity: 50
  • Agency Approvals: UL, CE, IEC, and CSA
  • Color: Blue/Gray
  • Conductor Sizes: 14 - 6 AWG
  • Connection Type: Wire
  • Connector Style: Twist On
  • Flame Retardant: Yes
  • Insulation Material: Polypropylene and thermoplastic elastomer
  • Material: Plastic
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 6 AWG
  • Minimum Wire Gauge: 14 AWG
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
