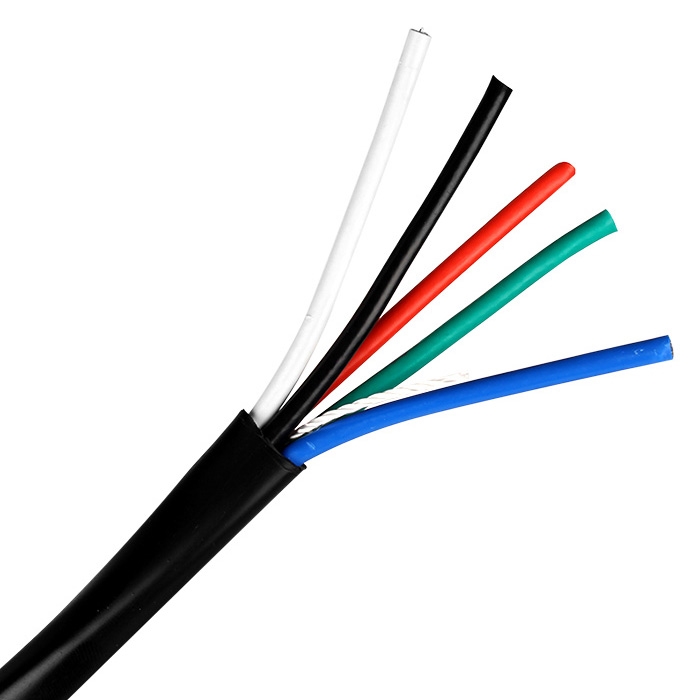

5 Conductor Mini Coax - 350'

5 Conductor Mini Coax - 350'


TTS PRICE: $273.99

STATUS: ON ORDER


Availability:
SHIP ESTIMATE 8-10 DAYS

PRODUCT CODE: SKY1231B
QUANTITY:

PRODUCT DESCRIPTION


With this UL Listed mini-coax, you can fit up to 3 times the amount of cable through runways, holes and plates designed to handle ordinary coax cable. You'll do less cutting and drilling, and your installations will look neater. This UL, CM rated 5-conductor mini coax has an ultra-flexible PVC jacket for easy installation. The conductors are color-coded for easy identification.

Features:
  • Central Conductor: 23awg Solid Bare Copper
  • Dielectric: 0.102" Gas Foam PE
  • Shield: Bonded AL-Poly Film Overlap
  • Braid: Tin Copper 95% Coverage
  • Jacket: 0.159" Black Flame Retard PVC Jacket
  • Outer Jacket 5-bundle: 0.42" Black Flame Retard PVC
  • Operation Temp: -30C -- 75C
  • Central Conductor DC Resistance: 20.1 ohm /1000ft
  • Shield DC Resistance: 7.6ohm/1000ft
  • Impedance. 75ohm
  • Velocity Of Propagation: 83%
  • Swept-tested to 3.0GHz
  • U.L.: CM rated
  • Outer Jacket Color: Black
  • Conductor Colors: Blue, Red, Green, White, Black
  • 350' Spool

    PERFORMANCE
    Frequency (MHz) dB Loss @ 100'
    10.0 1.2
    200.0 4.63
    600 8.4
    1000.0 10.4
    1500.0 13.3
    2500.0 17.2
    3000.0 18.7


    ** Connectors not included.
    •
