Arlington LVU1W Recessed Low Voltage Mounting Bracket - 1-Gang, White, Old or New Work
Arlington's LVU series for new or existing construction is a recessed design that keeps low voltage connectors inside - without extending past the wall. The LVU1W is the 1-gang, white paintable version, designed for Class 2 low voltage wiring only.
Features:
Non-metallic
Suitable for old or new work
Trim plate is paintable
Quick and easy installation and it's recessed so connectors don't extend past the wall surface
Adjusts to fit 1/4" to 1-1/2" wall thickness
Specially designed wing flips up when mounting screw is tightened for a secure mount
Built-in loops for cable tie-off
UL & CSA listed

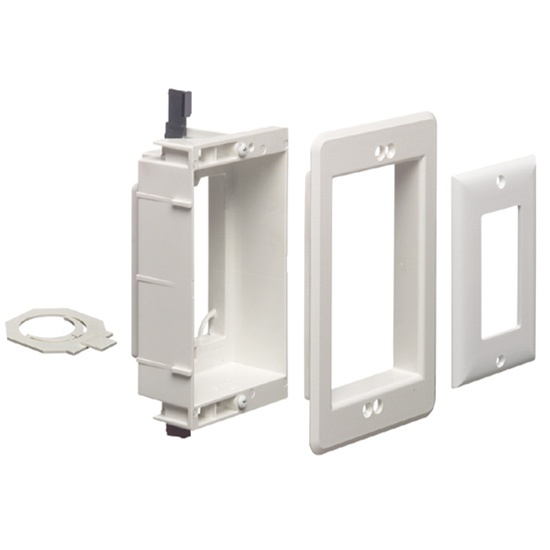

Includes:
1 x Bracket
1 x Trim plate
1 x Single-Gang decorator-style / GFCI wall plate with screws
2 x Combination 3/4" and 1" attachable knockouts
2 x #8 x 3" long screws
2 x #6-32 x 3/4" long screws
Specifications:
Type: Recessed Low Voltage Mounting Bracket
Trade Size: 1-Gang (Single-Gang)
Quantity: 1
Wiring: Class 2 low voltage only
Wall Thickness: 1/4" to 1-1/2"
Height: 6.698"
Width: 4.200"
Color: White
Material: Paintable Plastic
Weight: 0.513 lbs/each
Model: LVU1W
Related Products:
| Part # | Arlington # | Description |
|---|
| ARL-LVU2W | LVU2W | 2-Gang recessed low voltage mounting bracket, white |
| ARL-LVU3W | LVU3W | 3-Gang recessed low voltage mounting bracket, white |
| ARL-LVU4W | LVU4W | 4-Gang recessed low voltage mounting bracket, white |
