Arlington TVBU505 Recessed TV BOX - 2-Gang, Power & Low Voltage, White
Arlington's recessed TVBU505 non-metallic combination power and low voltage TV BOX is the secure, easy way to mount a flat screen TV flush against a wall. It features power in one side and low voltage in the other for Class 2 wiring of satellite or cable TV, speakers and more.

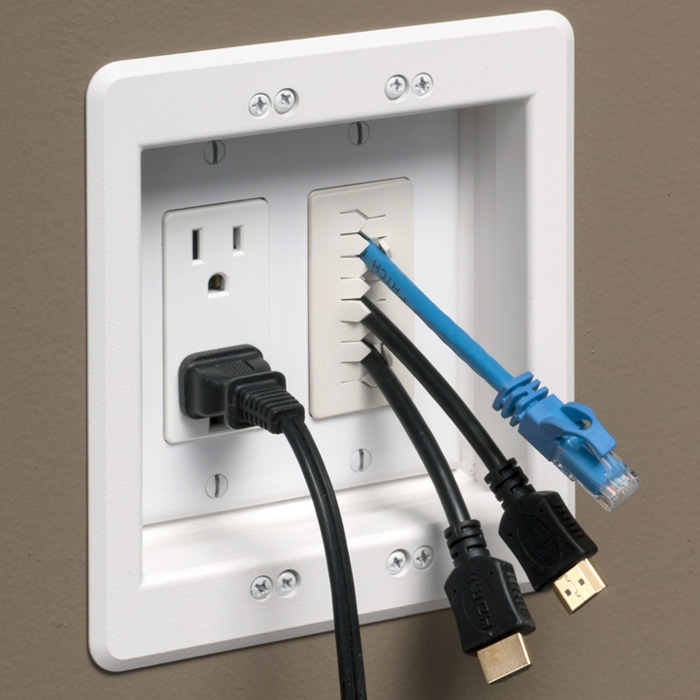

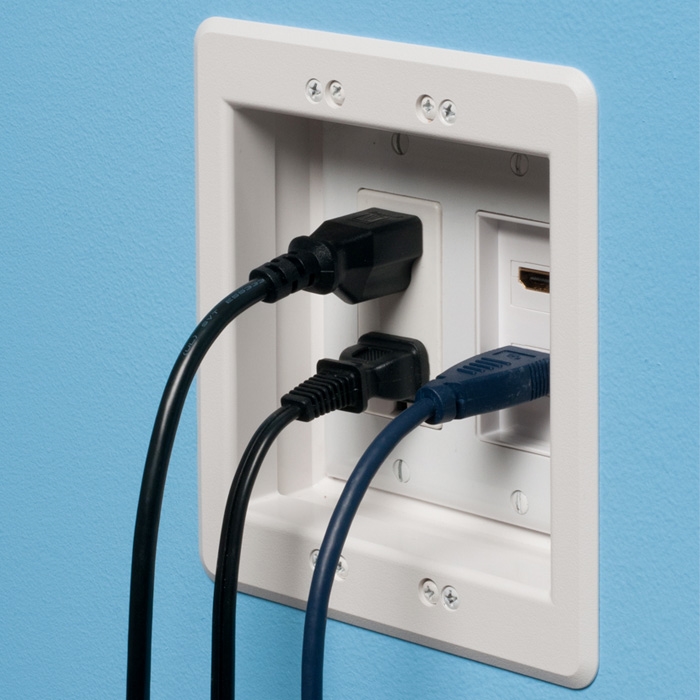

The job will look great! Plugs and connectors stay inside this two-gang box, without extending past the wall.
Features:

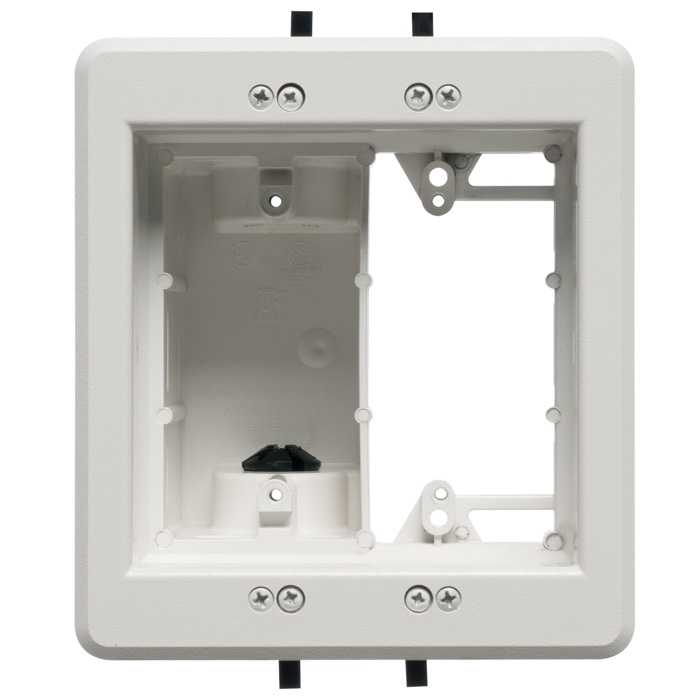

2-Gang TV Box

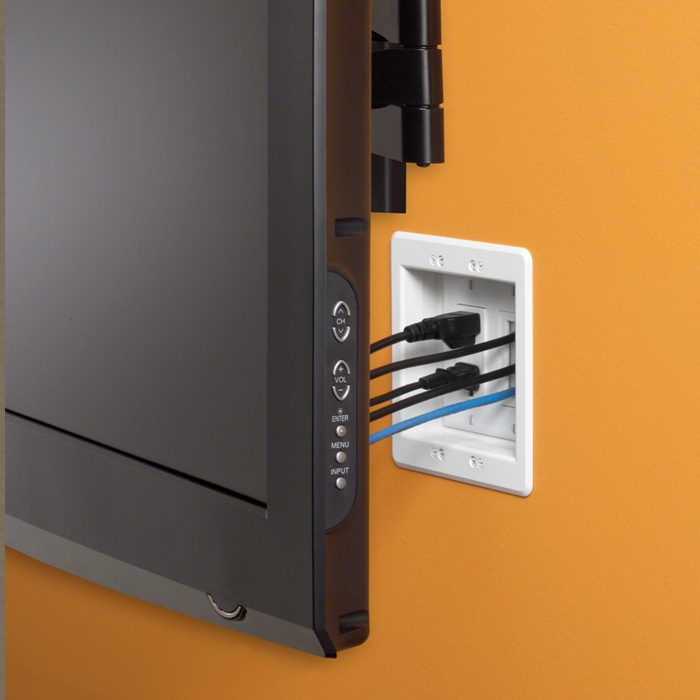

Recessed combo box allows you to mount LCD/plasma TVs and other system components flush against the wall
Comes with low voltage divider
Secure and attractive installation

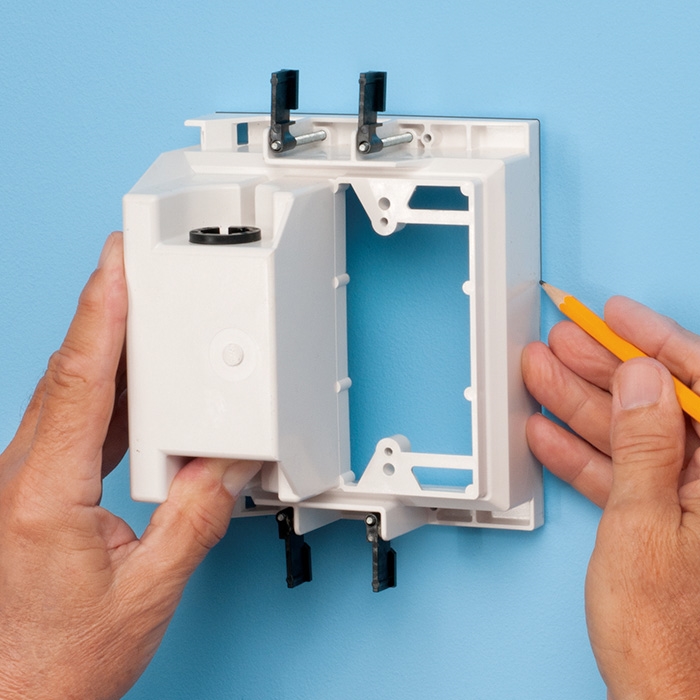

For new or existing construction
Trim plate is textured/paintable and covers edges of cut wall surface
Secure mount - specially designed wings hold bracket securely against wall when screws are tightened
Usable with Arlington's SCOOP series entrance hoods and plates
UL & CSA listed
Includes:

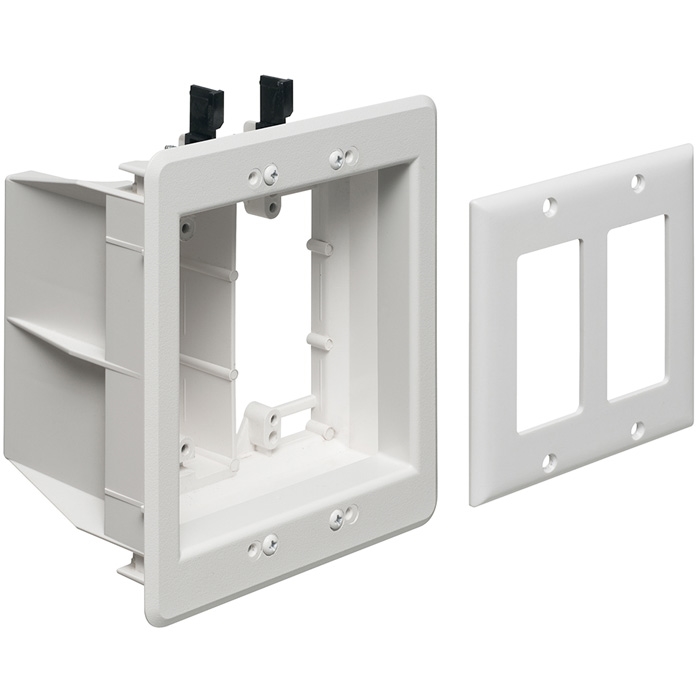

1 x Recessed combo box
1 x Trim plate
1 x 2-Gang decorator-style / GFCI wall plate with screws
2 x NM94 cable connectors
2 x #8 x 3" long screws
4 x #6-32 x 1/2" long screws
Specifications:
Trade Size: 2-Gang
Color: White

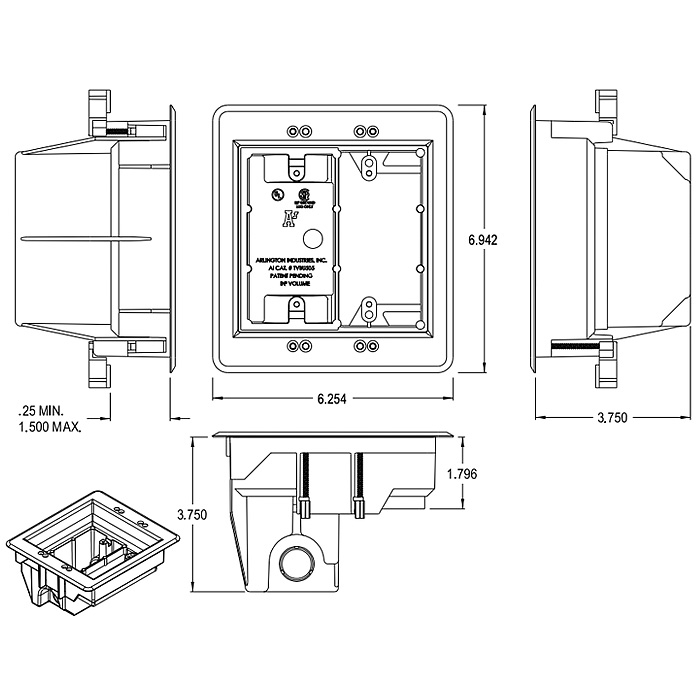

Height: 6.942"
Width: 6.254"
Material: Plastic
Wall Depth: 1/2", 5/8", and up to 1-1/2"
Weight: 0.726 lbs
Model: TVBU505
Accessories:
| Part # | Arlington # | Description |
|---|
| ARL-CED1 | CED1 | SCOOP single-gang reversible entrance hood, white |
| ARL-CEDH1 | CEDH1 | SCOOP single-gang horizontal entrance hood, white |
| ARL-CE1 | CE1 | SCOOP single-gang reversible entrance plate, white |
Related Products:
| Part # | Arlington # | Description |
|---|
| ARL-TVBU507 | TVBU507 | Recessed TV BOX for power and low voltage, 3-gang, white |
