Arlington Versatile Home Theater TV Box 8"x10"

Arlington Versatile Home Theater TV Box 8"x10"

Alternative Views:

TTS PRICE: $27.99


Normally Ships Same Day

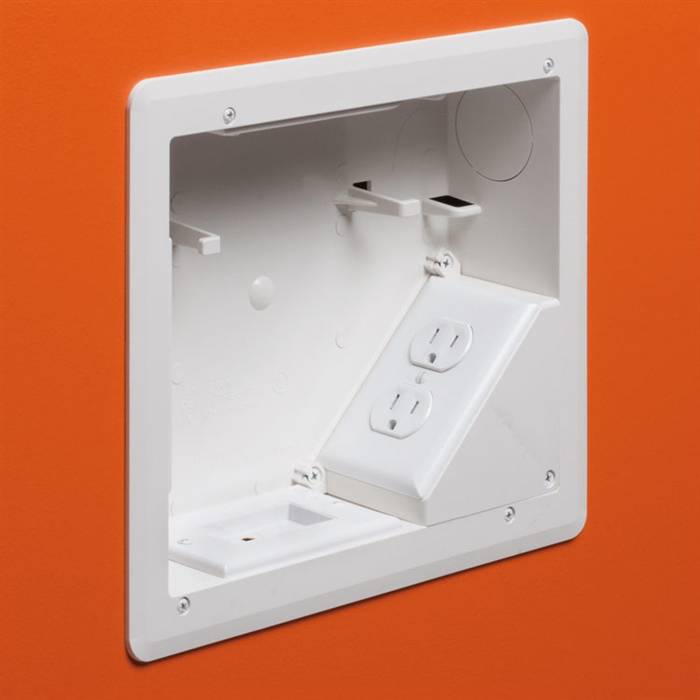

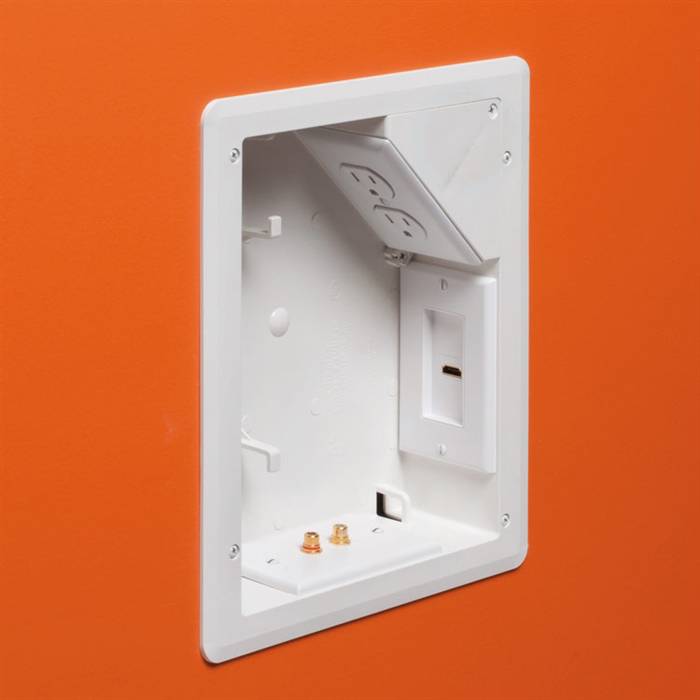

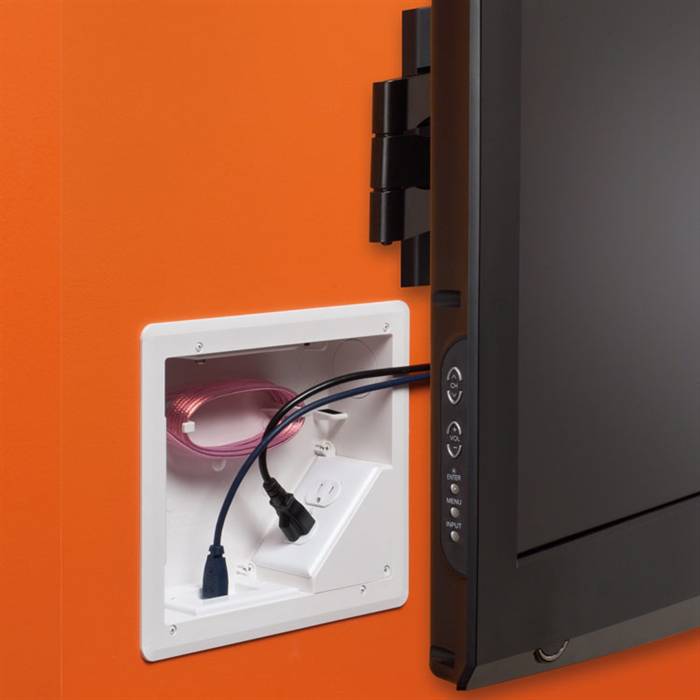

Arlington's TVB810 TV Box delivers the ultimate in versatility for installing wall-mounted TVs. There's more room in the box for wires. And, you can install it horizontally or vertically to ensure proper positioning of low voltage connections behind the TV. TVB810 is ideal for home theater systems where multiple connections are needed for sound systems, satellite TV, cable TV, DVRs, and more.

  • Accepts standard-style plates with receptacles and decorator-style devices with plates - and Arlington's SCOOP series entrance plates and hoods.
  • Mounting wing screws hold box secure against wall.
  • Supplied with cover blanks, wall plate, a SCOOP cable entry device (CED130) and cable connectors for unused openings.

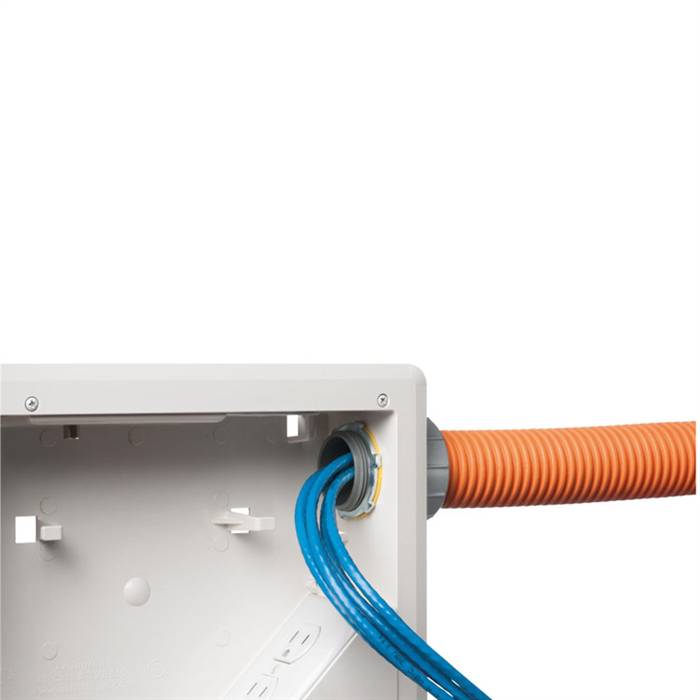

  • 1-1/2" knockout for ENT or other low voltage wiring.
  • UL/CSA Listed.

  • Specifications:
  • Weight: 1.722lbs
  • Dimensions: 8.81" x 10.25"
  • Color: White
  • Material: Paintable Plastic
  • Entrance Cable Size: 1-1/2"
  • Knockout Size: 1/2" (Power)
  • Made in USA

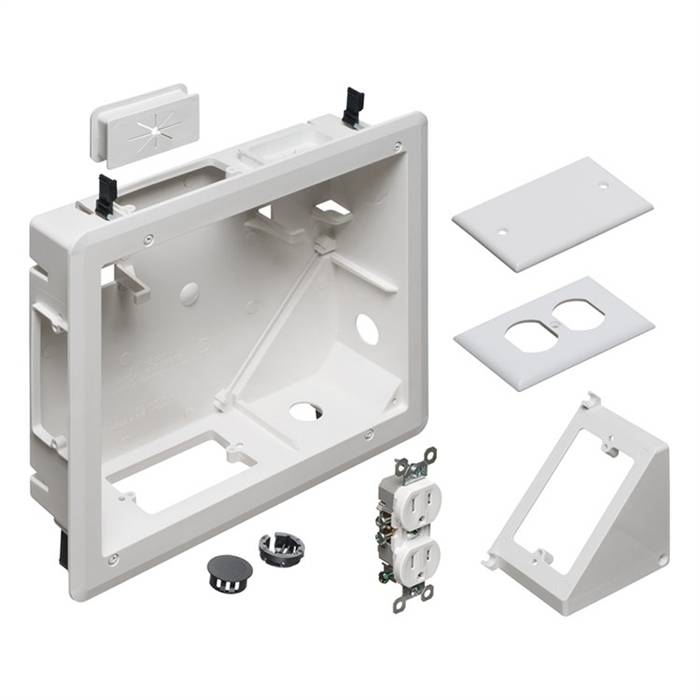

  • Kit Includes:
  • (1) TVB810 - 8" x 10" TV Box
  • (1) UL-Listed Duplex Receptacle
  • (1) Duplex Wall Plate
  • (1) Cover Blank
  • (1) CED130 - Cable Entry Device
  • (1) NM94 Push-In Cable Connector
  • (1) NM900 Snap-In Blank
  • Line Drawing

    Average Customer Review: 4.5 of 5 Total Reviews: 2 WRITE A REVIEW

      So far, this Product Review was helpful to 0 TTS Customers.
    Easy Install July 3, 2016
    Reviewer: Daniel Wiley from Tyngsboro, MA United States
    The Arlington HT TV box allows anyone with modest electric and construction skill to do a first class job of managing the wiring and cabling of a large screen TV.

    Was this review helpful to you?

      So far, this Product Review was helpful to 0 TTS Customers.
    Pretty good September 26, 2015
    Reviewer: nathaniel gordon from nashua, NH United States
    Cool product...great flexibility in the design. Pleasantly surprised that the AC outlet was included. Bummed out that the cut-out dimensions listed on the install guide were incorrect...too large. At least the flange covered up the extra space around the box.
