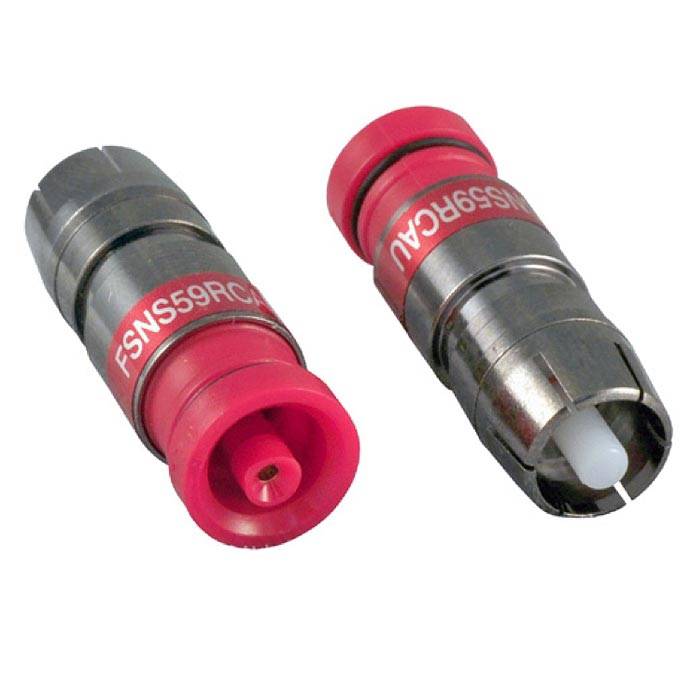

Belden SNS RG59 RCA Compression Connectors - Bag of 25

Belden SNS RG59 RCA Compression Connectors - Bag of 25




TTS PRICE: $43.99

STATUS:  IN STOCK


Availability:
Normally Ships Same Day

PRODUCT CODE: BEL-FSNS59RCAU
QUANTITY:

PRODUCT DESCRIPTION


Installations in Commercial and Residential Audio/Video, Security, and Broadband markets will be a "snap", thanks to the low compression force associated with traditional Snap-N-Seal?? connectors along with the patented non-blind entry with a floating pin design from F-Conn.

The patented removable plastic sleeve guide is also a design feature of the ProSNS RCA connector. The plastic guide is attached to the front of the RCA pin. As the cable center conductor is inserted into the RCA pin and pushed forward, the removable plastic guide is pushed up and out of the front end of the connector. The plastic guide will need to be detached and removed from the RCA pin, once the cable and pin are properly inserted into the connector.

Features:
  • TRUE 360 compression
  • Superior RF shielding performance
  • Patented floating-pin insertion guide
  • Low insertion force
  • UV resistant plastic

  • Specifications:
  • Cable Type: RG-59 Standard and Quad
  • Connector: Universal RCA
  • Color Band: Red
  • -85 dB effective shielding (typical on 60% bonded foil cable)
  • Requires the industry standard 1/4" x 1/4" cable preparation
  • RoHs compliant

  • Return Loss:
  • -29.21dB up to 1GHz
  • -19.12dB up to 4GHz
  • -20.14 dB up to 2 GHz
  • -19.04 dB up to 4.5 GHz
  • -18.81 dB up to 3 GHz
  • The Belden Name now encompasses the PPC, ICM Corp, Cable Pro, and Thomas & Betts names.


    Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 1 WRITE A REVIEW

      So far, this Product Review was helpful to 0 TTS Customers.

    5 of 5 Good quality May 28, 2019
    Reviewer: Kenny from Boise, ID United States
    I am a system integrator and once in a while I need to make up a long or custom length cable for either digital audio or a subwoofer. These have always worked well.
