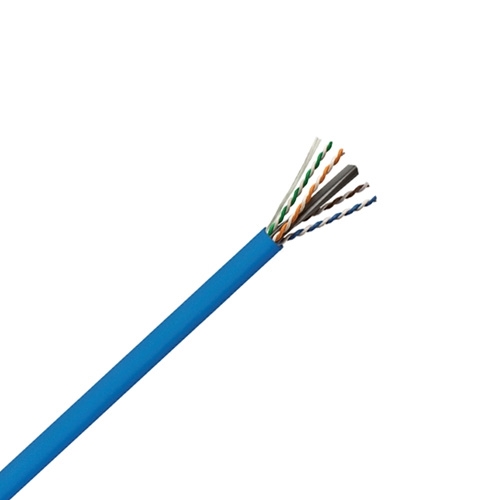

CAT 6A U/UTP Solid Riser Cable - 1000ft Blue

CAT 6A U/UTP Solid Riser Cable - 1000ft Blue


TTS PRICE: $295.99

STATUS: ON ORDER

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: VER-MBW6A-04378
QUANTITY:

PRODUCT DESCRIPTION


The Vericom Category 6A Cable (MBW6A-04378) supports 10GBASE-T Ethernet up to 100 meters per the standard, 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet), 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, CDDI, ATM, Token Ring, Digital video and broadband/baseband analog video, Voice over Internet Protocol (VoIP). Category 6A is backward compatible with CAT6 and Category 5e systems as well as IEEE 802.3af/802.3af and 802.3at for PoE applications.

Vericom Category 6A Riser Cable is designed to meet and exceed ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA electrical performance requirements for frequencies up to 500 MHz and is sweep tested up to 650MHz. The 1000ft spool of cable is constructed with 23AWG solid conductors in a four-pair configuration, separated with an integral cross filler to reduce crosstalk to provide maximum system performance. Vericom Category 6A CMR Cable has a nominal cable diameter of 0.33” (8.3mm), is rated for non-plenum spaces.

Features:
  • Cross filler keeps pairs separated and pair twist consistent through the length of the cable reducing crosstalk up to and beyond 500 MHz
  • Tested to 650 MHz to ensure consistent, repeatable performance within the existing standards as well as any future requirements for Category 6A cables
  • ANSI/TIA-568.2-D and ISO 11801 Class E Category 6A ensures interoperability with all standards compliant connectivity
  • Cost-effective solution for future-proofing networks

    • Specifications:
  • Conductor Size: 23AWG
  • Length: 1,000 ft
  • Packaging: Pull box to ease installation and storage
  • Conductor Material: 23 AWG Solid Bare Copper
  • Insulation Material: Polyolefin (PO)
  • Color Code : BL & WH, OR & WH, GN & WH, BR & WH
  • Filler Material: Polyolefin (PO)
  • Ripcord Material: Polyester Multi-Yarn
  • Jacket Material: Flame Retardant PVC Compound (FRPVC)
  • Jacket Color: Specied By Item Number
  • Mutual Capacitance: 5.6 nF/100m max
  • DC Resistance: 9.38 Ω/100m max
  • DC Resistance Unbalance: 4% max
  • Capacitance Unbalance Pair-to-Ground: 330 pF/100m
  • UL Voltage Rating: 300 V (CMR)
  • Maximum Delay: 537.6 ns/100m @ 100 MHz
  • Maximum Delay Skew: 45 ns/100m
  • Velocity of Propagation: 66% nom
  • Conductor Diameter: 0.023 in. (0.58 mm)
  • Insulated Conductor Diameter: 0.043 in. (1.10 mm)
  • Cable Diameter: 0.33 in. (8.3 mm) Nom.
  • Cable Weight: 46.76 lb. (21.21 kg)
  • Max. Installation Tension: 25 lb. (110 N)
  • Min. Bend Radius: ≥ 4 times of overall diameter
  • UL Rating: 75ºC
  • Operating: -4 °F to 140 °F (-20 °C to 60 °C)
  • Installation: 32 °F to 140 °F (0 °C to 60 °C)
  • Storage: -4 °F to 167 °F (-20 °C to 75ºC)

    • Standards Compliance:
  • ANSI/TIA-568.2-D
  • ISO/IEC 11801
  • EN 50173-1 Class EA
  • IEC 61156-5
  • UL Rated Temperature: 75° C
  • UL1666 (CMR)
  • UL 444
  • CSA 22.2 No. 214
  • RoHS Compliant
  • Supports IEEE 802.3af/802.3at
    •
