Cable Prep AIO-565 All-In-One Stripping/Coring Tool

Home > Categories > Cable Prep & Termination > Coring Tools > 565TX Coring Tools >

Cable Prep All-In-One Stripping/Coring Tool - .565" Coaxial Cables

TTS PRICE: $167.09

STATUS:

IN STOCK

Availability:

IN STOCK & READY TO SHIP

PRODUCT CODE: CPR-AIO-565

QUANTITY:

PRODUCT DESCRIPTION

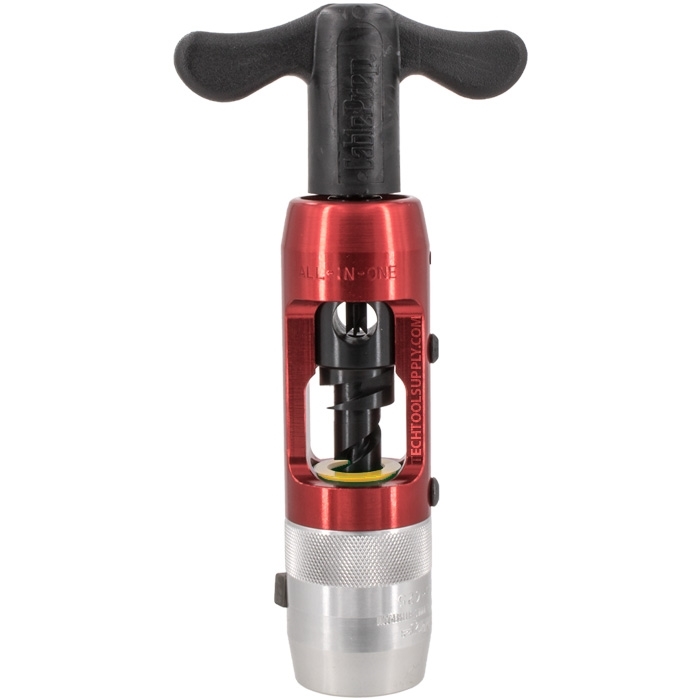

Cable Prep AIO-565 All-In-One Stripping/Coring Tool - .565" Hardline, Standard Handle, Orange Sleeve

Cable Prep's AIO (All-In-One) cable preparation tool performs six functions in one - simultaneously strip back the jacket, core the dielectric, strip back and bevel the outer conductor, and measure and bevel the center conductor on hard-line cables. Works on .565" coaxial cables.

The AIO-565 has a bronze-colored anodized aluminum body with a orange guide sleeve for .565" cable and a standard handle. The two halves thread together and can be separated when space is tight or the cable end is too short for all-in-one operation. AIO tools can be used in place of Cable Prep JCS jacket strippers and SCT strip & core tools.

Features:

Performs 6 functions in one: stripping back the jacket, coring the dielectric, stripping back and beveling the outer conductor, and measuring and beveling the center conductor

Cone-shaped cable entry

Unique one-piece coring bit for perfectly aligned cutting edges

Heat-treated tool-steel coring bit holds a sharp edge over a long life

Adjustable center conductor stop

Aligns coring and stripping blades

Reshapes flattened cables

Operates manually or with a 3/8" variable speed drill

Open body and blade design allows debris to fall freely and facilitates cleaning the tool

Separates into two tools (can be separated and used as a standard stripping and coring tool)

Color-coded guide sleeves (color based on cable size)

Guide sleeve can be removed and stored in the coring tool body when coring flooded cable in all-in-one mode

Specifications:

Type: All-In-One Hardline Stripping/Coring Tool

Cable Size: .565" Hardline Coaxial

Guide Sleeve Color: Orange

Handle: Standard (removable for 3/8" drill operation)

Body: Bronze-colored anodized aluminum

Core Depth: 0.875"

Center Conductor Stop: Adjustable, 0.875" to 1.625"

Jacket Strip Back: 2.5"

Weight: 19.2 oz (544.32 g)

Model: AIO-565

Available Sizes (AIO / RAIO All-In-One Tools):

Part #	Cable Prep #	Cable Size	Handle	Color Code	Weight	Full Blade Kit	Coring Bit Kit	Stripper Kit	Beveller Kit
CPR-AIO-412	AIO-412	0.412"	Standard	Light Blue	18.56 oz (526.17 g)	AIO-412RBKIT	AIO-412RB	JCS-412RB	AIO-412BVL
CPR-RAIO-412	RAIO-412	0.412"	Ratchet T-Handle	Light Blue	26.88 oz (762.04 g)	AIO-412RBKIT	AIO-412RB	JCS-412RB	AIO-412BVL
CPR-AIO-500	AIO-500	0.500"	Standard	Yellow	19.2 oz (544.32 g)	AIO-500RBKIT	AIO-500RB	JCS-500RB	AIO-500BVL
CPR-RAIO-500	RAIO-500	0.500"	Ratchet T-Handle	Yellow	27.52 oz (780.19 g)	AIO-500RBKIT	AIO-500RB	JCS-500RB	AIO-500BVL
CPR-AIO-565	AIO-565 (this item)	0.565"	Standard	Orange	19.2 oz (544.32 g)	AIO-565RBKIT	AIO-565RB	JCS-565RB	AIO-565BVL

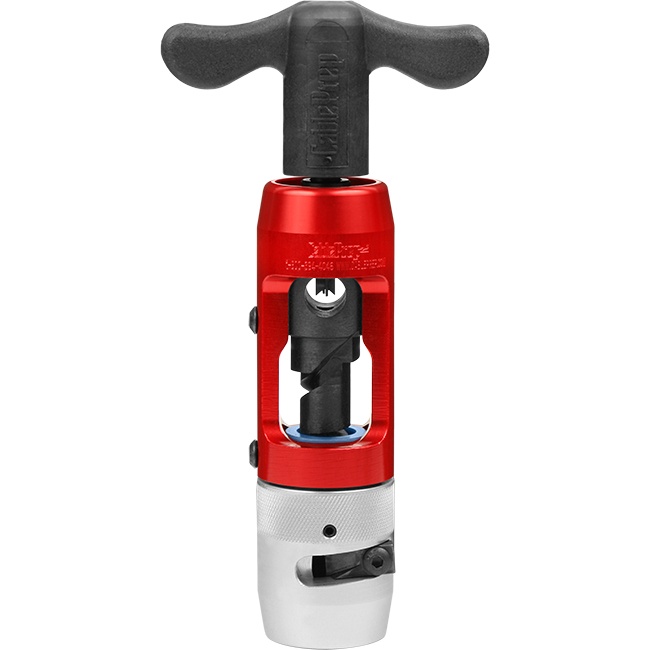

CPR-RAIO-565	RAIO-565	0.565"	Ratchet T-Handle	Orange	27.52 oz (780.19 g)	AIO-565RBKIT	AIO-565RB	JCS-565RB	AIO-565BVL
CPR-AIO-625	AIO-625	0.625"	Standard	Green	19.2 oz (544.32 g)	AIO-625RBKIT	AIO-625RB	JCS-625RB	AIO-625BVL
CPR-RAIO-625	RAIO-625	0.625"	Ratchet T-Handle	Green	27.52 oz (780.19 g)	AIO-625RBKIT	AIO-625RB	JCS-625RB	AIO-625BVL
CPR-AIO-700	AIO-700	0.700"	Standard	Maroon	19.52 oz (553.39 g)	AIO-700RBKIT	AIO-700RB	JCS-700RB	AIO-700BVL
CPR-RAIO-700	RAIO-700	0.700"	Ratchet T-Handle	Maroon	27.84 oz (789.26 g)	AIO-700RBKIT	AIO-700RB	JCS-700RB	AIO-700BVL
CPR-AIO-750	AIO-750	0.750"	Standard	Red	19.52 oz (553.39 g)	AIO-750RBKIT	AIO-750RB	JCS-750RB	AIO-750BVL
CPR-RAIO-750	RAIO-750	0.750"	Ratchet T-Handle	Red	27.84 oz (789.26 g)	AIO-750RBKIT	AIO-750RB	JCS-750RB	AIO-750BVL
CPR-AIO-840	AIO-840	0.840"	Standard	Light Grey	19.52 oz (553.39 g)	AIO-840RBKIT	AIO-840RB	JCS-840RB	AIO-840BVL
CPR-RAIO-840	RAIO-840	0.840"	Ratchet T-Handle	Light Grey	27.84 oz (789.26 g)	AIO-840RBKIT	AIO-840RB	JCS-840RB	AIO-840BVL
CPR-AIO-875	AIO-875	0.875"	Standard	Grey	19.52 oz (553.39 g)	AIO-875RBKIT	AIO-875RB	JCS-875RB	AIO-875BVL
CPR-RAIO-875	RAIO-875	0.875"	Ratchet T-Handle	Grey	27.84 oz (789.26 g)	AIO-875RBKIT	AIO-875RB	JCS-875RB	AIO-875BVL

Replacement Parts:

Part #	Cable Prep #	Description
-	AIO-565RBKIT	Full blade kit for .565" AIO tools - coring bit, jacket-stripping blade, beveller blade and hardware
-	AIO-565RB	Coring bit kit for .565" AIO tools
-	JCS-565RB	Jacket-stripping blade kit (stripper kit) for .565" AIO tools
CPR-AIO-565BVL	AIO-565BVL	Beveller kit for .565" AIO tools - beveller blade, set screw, hex key, ruler

AIO All-In-One Tools Brochure
