Cable Prep JCS-625 Jacket Stripper for .625 T10 & PIII

Home > Categories > Cable Prep & Termination > Jacket Strippers >

Cable Prep Jacket Stripper for .625 T10 & PIII

TTS PRICE: $39.09

STATUS:

IN STOCK

Availability:

IN STOCK & READY TO SHIP

PRODUCT CODE: CPR-JCS-625

QUANTITY:

PRODUCT DESCRIPTION

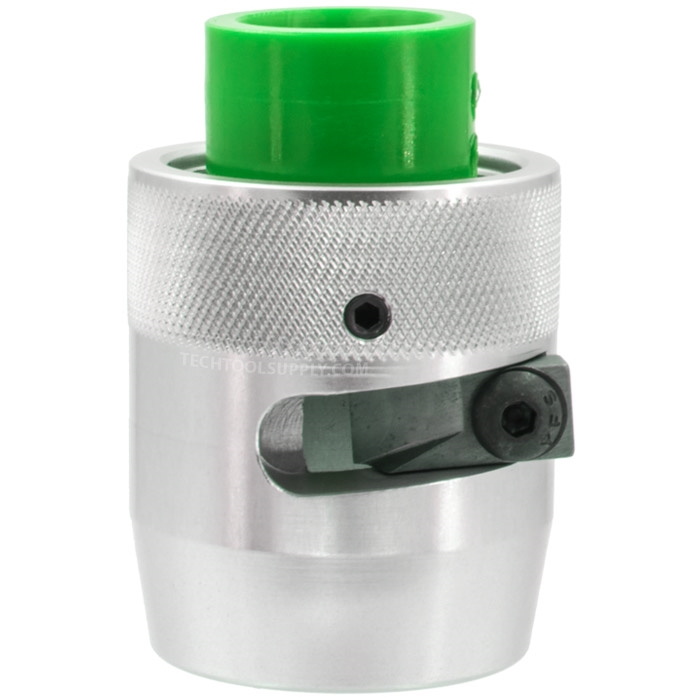

Cable Prep JCS-625 Jacket Stripping Tool - .625 PIII & T10 Hardline, Green Guide Sleeve

Durable and ergonomically designed, Cable Prep's JCS cable jacket strippers cleanly remove the jackets on hard-line trunk and distribution cables. The JCS-625 tool strips the jacket on 0.625" T10 & PIII cables.

Features:

Dual-edged steel blade bites into and lifts the cable jacket with ease, cleanly removing the jacket without damaging the soft outer conductor

Blade is made of heat-treated tool steel and is easy to replace after a long life of sharpness

Knurled tool body ensures a firm hold during the stripping operation; the body is anodized and sealed to protect it from the elements

Green plastic guide sleeve keeps all metal surfaces away from the soft aluminum outer conductor

Guide sleeve is color-coded to match the corresponding Cable Prep brand SCT stripping/coring tool, making it easy to pick the right tool for the application

Threads onto the matching SCT tool to strip the jacket, strip back and bevel the outer conductor and core the dielectric in one operation

Specifications:

Type: Hardline Cable Jacket Stripping Tool

Cable Size/Type: .625 PIII & T10

Guide Sleeve Color: Green

Blade: Dual-edged heat-treated tool steel

Body: Knurled, anodized and sealed

Weight: 0.42 lb (0.19 kg)

Model: JCS-625

Available Sizes (JCS Jacket Strippers):

Part #	Cable Prep #	Cable	Color Code	Weight	Blade Kit
CPR-JCS-412	JCS-412	.412 T10 & PIII	Light Blue	0.46 lb (0.21 kg)	JSB-3011
CPR-JCS-500	JCS-500	.500 T10 & PIII	Yellow	0.44 lb (0.2 kg)	JSB-3011
CPR-JCS-625	JCS-625 (this item)	.625 T10 & PIII	Green	0.42 lb (0.19 kg)	JSB-3011
CPR-JCS-750	JCS-750	.750 T10 & PIII	Red	0.4 lb (0.18 kg)	JSB-3011
CPR-JCS-875	JCS-875	.875 T10 & PIII	Grey	0.34 lb (0.16 kg)	JSB-3011
CPR-JCS-1000	JCS-1000	1.000 T10 & PIII	Black	0.34 lb (0.16 kg)	JSB-3025
CPR-JCS-565	JCS-565	.565 TX10 & PIII	Orange	0.44 lb (0.2 kg)	JSB-3011
CPR-JCS-700	JCS-700	.700 TX10 & PIII	Maroon	0.42 lb (0.19 kg)	JSB-3011
CPR-JCS-840	JCS-840	.840 TX10 & PIII	Light Grey	0.38 lb (0.17 kg)	JSB-3011

Replacement Parts:

Part #	Cable Prep #	Description
-	JSB-3011	JCS replacement blade kit for JCS-625

Fits These Tools:

Part #	Cable Prep #	Description
CPR-SCT-625	SCT-625	SCT-625 strip & core tool - .625 PIII & T10, plastic, standard handle
CPR-SCT-625-ALU	SCT-625-ALU	SCT-625-ALU strip & core tool - .625 PIII & T10, aluminum, standard handle
CPR-RSCT-625	RSCT-625	RSCT-625 strip & core tool - .625 PIII & T10, plastic, ratchet T-handle
CPR-RSCT-625-ALU	RSCT-625-ALU	RSCT-625-ALU strip & core tool - .625 PIII & T10, aluminum, ratchet T-handle

JCS Jacket Stripping Tools Brochure
