Strip, bevel, core and jacket-strip 0.320in (7mm) QR cable for F320-style connectors - one tool set, no separate jacket stripper to order.

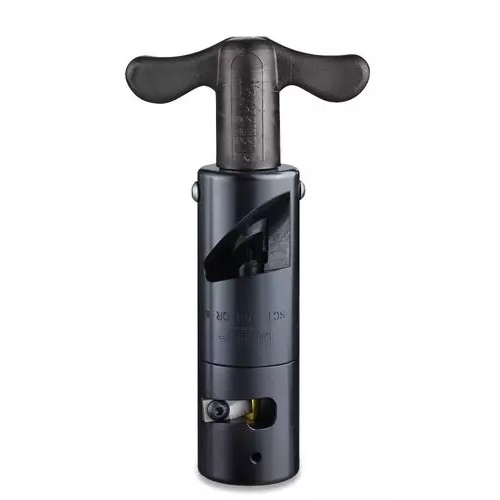

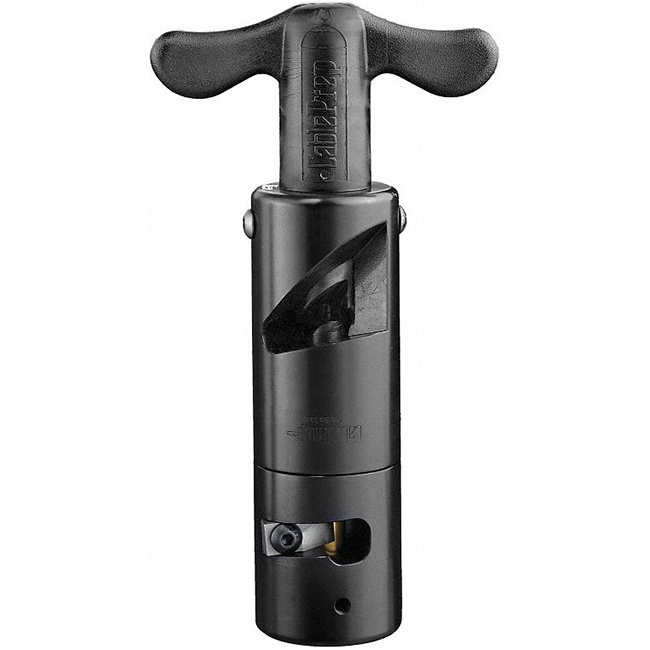

The Cable Prep SCT-F320QR strips back and bevels the outer conductor, cores the dielectric and strips back the outer jacket on 0.320in (7mm) QR cable for F320-style connectors. Because QR jacket has to come off after coring, each SCT-QR tool ships with its own threaded jacket stripping tool with a patented mandrel pin that supports the soft aluminum outer conductor.

Factory-set stops, self-aligning blade.
A non-clogging internal stop is set at the factory to the cable's dimensions, and the bevel on the coring edge self-aligns on the center conductor so the tool cores even out-of-round cable. Turn it with the standard ergonomic handle, or remove the handle and run it on a 3/8in variable-speed drill.

• Strips back and bevels the outer conductor and cores the dielectric in one operation
• Includes the matching threaded jacket stripping tool (assembles with the corer for storage)
• Non-clogging internal stop factory-set to the cable
• Patented blade self-aligns on the center conductor - cores out-of-round cable
• Tool steel blades heat treated to full hardness; beveled edge eliminates O-ring damage
• Standard ergonomic handle; removes for 3/8in variable-speed drill operation
• Black anodized aluminum construction

• Model: Cable Prep SCT-F320QR
• Cable: 0.320in (7mm) QR for F320 connectors
• Core Depth: 0.5625in
• Center Conductor Stop Length: 0.4375in
• Jacket Strip Back: 0.375in
• Connector Compatibility: Corning Gilbert GAF-360-320-QR, Thomas & Betts SNS320QR, PPC EX320QR
• Handle: Standard ergonomic handle (removable)
• Body: Black anodized aluminum
• Weight: 15.4 oz
• Replacement Blade Kit: SC-F320QR
• Ratchet T-Handle Version: CPR-RSCT-F320QR
