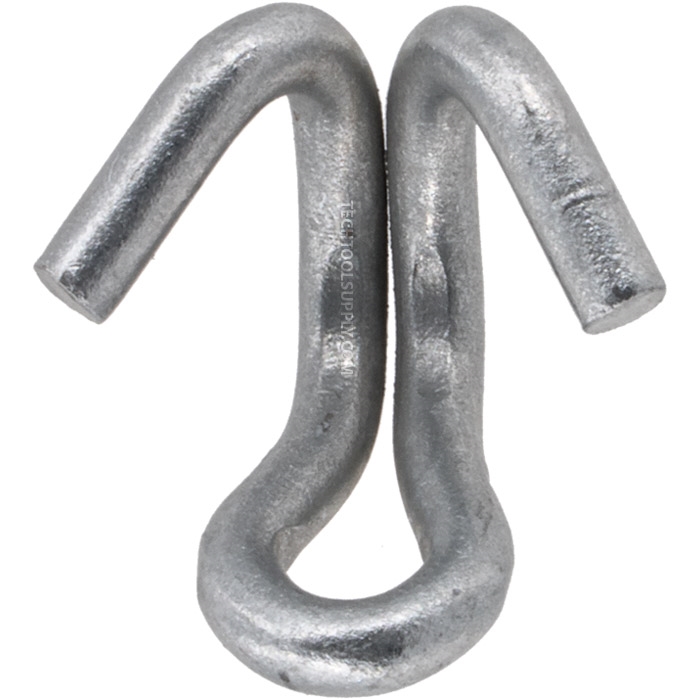

The Diamond 30-01732 rams horn is the building-end anchor of a telephone or fiber drop: secure it to a masonry or wood surface with a No. 16 screw and hook the bail of the drop wire clamp over the horns. The open rams-horn profile makes attaching and detaching the drop quick while holding it captive under tension - which is why this pattern is used as a standard by major telephone companies across the telecommunications industry.
Formed from high-quality steel wire and mechanically galvanized to ASTM A153 and B695, it exceeds 700 lbs load capacity and is R.E.A. accepted.
Key Features:
- Attaches drop wire clamp bails to masonry or wood surfaces
- Industry-standard rams horn pattern used by major telephone companies
- High-quality steel wire, mechanically galvanized to ASTM A153 and B695
- R.E.A. accepted
Specifications:
- Load Capacity: Exceeds 700 lbs
- Mounting: No. 16 screw (not included)
- Finish: Mechanically galvanized
- Quantity: 1
Pair with the PPC drive hook at the pole end.
