New!  GMP Heavy Duty 45 Degree Corner Block with Mounting Bracket

GMP Heavy Duty 45 Degree Corner Block with Mounting Bracket


TTS PRICE: $1,958.99

STATUS: ON ORDER

Free Shipping

Availability:
SHIP ESTIMATE 7-9 DAYS

PRODUCT CODE: GMP-70437
QUANTITY:

PRODUCT DESCRIPTION


GMP 70437 Heavy Duty 45° Corner Block with Mounting Bracket - Fiber up to 0.688", 750 lb WLL

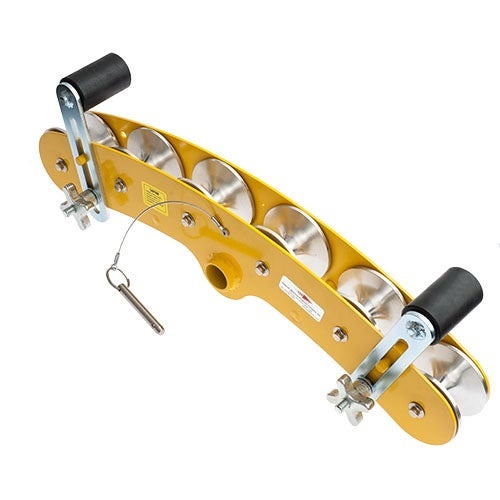

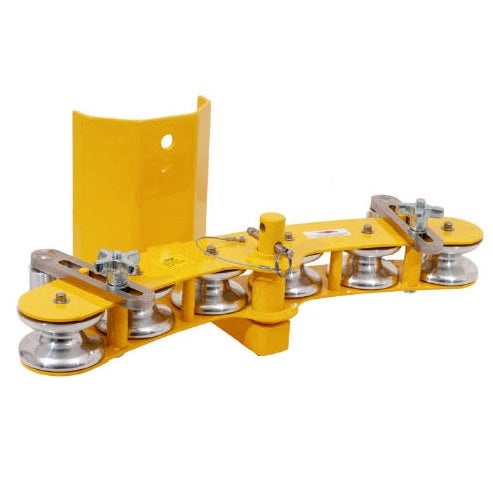

The GMP 70437 is a complete heavy duty 45° corner block assembly: the 45° heavy duty aluminum-roller corner block (P/N 70435) together with its pole mounting bracket (P/N 70550), ready to hang. It is built for fiber optic cable up to 0.688in diameter and rated to a 750 lb working load limit, so it holds up on long, heavy placing pulls. High-strength aluminum rollers ride on self-lubricating bearings for a smooth, low-friction pull with less maintenance. An aluminum cable retaining roller keeps the cable from jumping off the rollers while it is under tension. The bracket connects to the pole with a 5/8in through bolt in the top hole and a lag bolt in the bottom hole. Need the block only? See GMP-70435.

Features:
  • 45° heavy duty corner block for fiber optic cable
  • High-strength aluminum rollers with self-lubricating bearings
  • Aluminum cable retaining roller helps prevent cable from jumping off the rollers
  • 750 lb working load limit
  • Accepts fiber optic cable up to 0.688in diameter
  • Mounting bracket included - bolts to the pole with a 5/8in through bolt and a lag bolt

  • Kit Includes:
  • 1 x Mounting bracket (P/N 70550)
  • 1 x 45° heavy duty corner block with aluminum rollers (P/N 70435)

  • Specifications:
  • Angle: 45°
  • Working Load Limit: 750 lb
  • Max Cable Diameter: 0.688in (fiber optic)
  • Rollers: Aluminum, self-lubricating bearings
  • Mounting: Bracket 70550 included - 5/8in through bolt (top hole) and lag bolt (bottom hole)
  • Weight: 24.9 lb
  • Model: 70437


  • Related Products:
    Part #GMP #Description
    GMP-704357043545° heavy duty corner block only
    GMP-704367043690° heavy duty corner block only
    GMP-704627046290° heavy duty corner block with mounting bracket 70550
    HD Corner Block Cut Sheet HD Corner Block Instructions and Parts List
