New!  GMP 90248 3/8" Continuous Duct Rodder – 1800 ft (549 m)

GMP 90248 3/8" Continuous Duct Rodder – 1800 ft (549 m)


Alternative Views:


TTS PRICE: $2,874.99

STATUS: ON ORDER


Availability:
SHIP ESTIMATE 7-9 DAYS

PRODUCT CODE: GMP-90248
QUANTITY:

PRODUCT DESCRIPTION

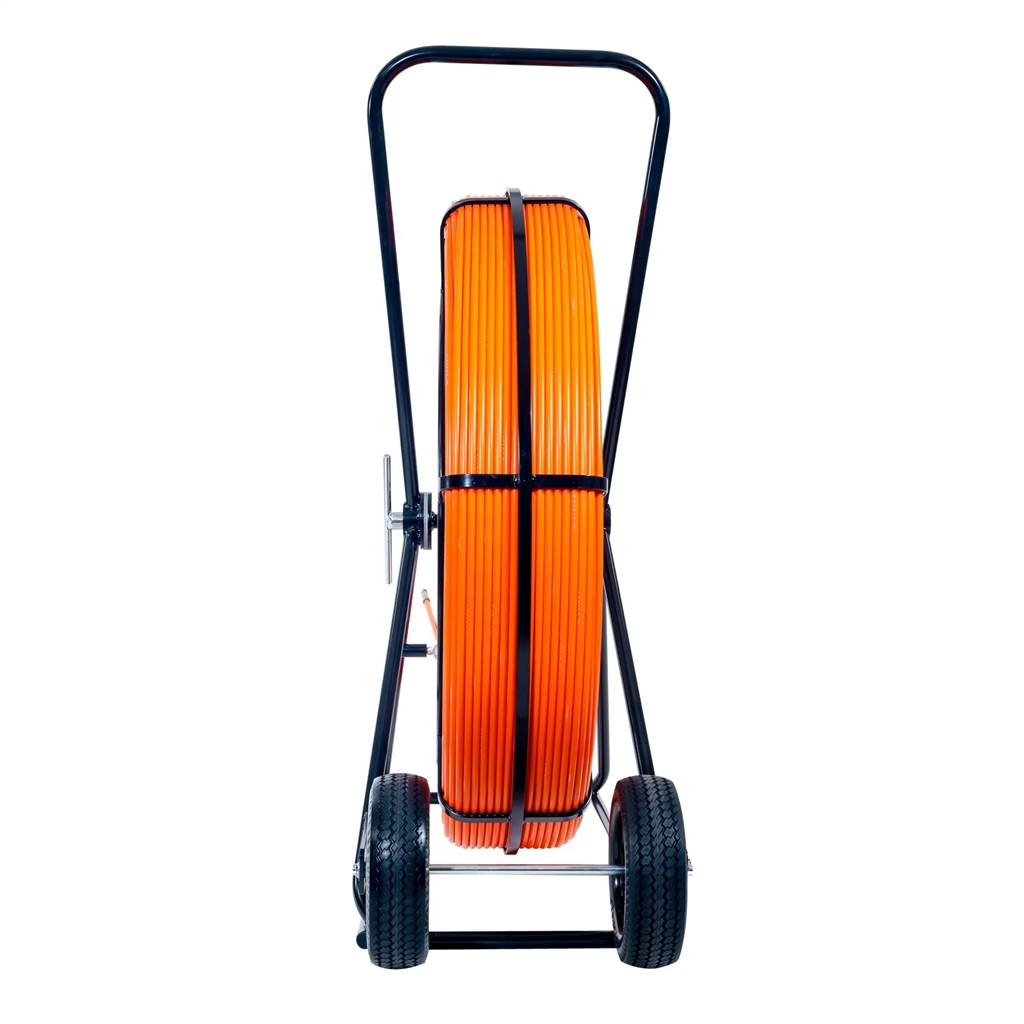

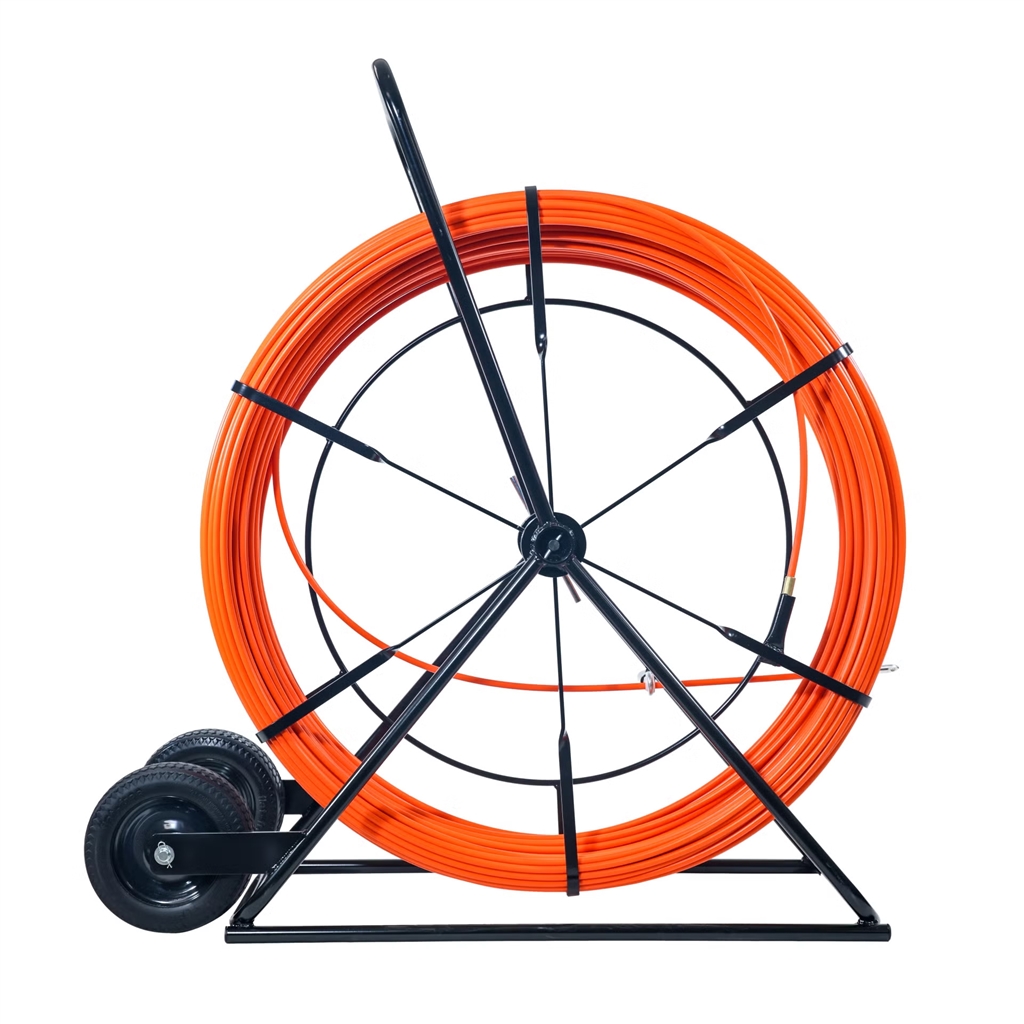

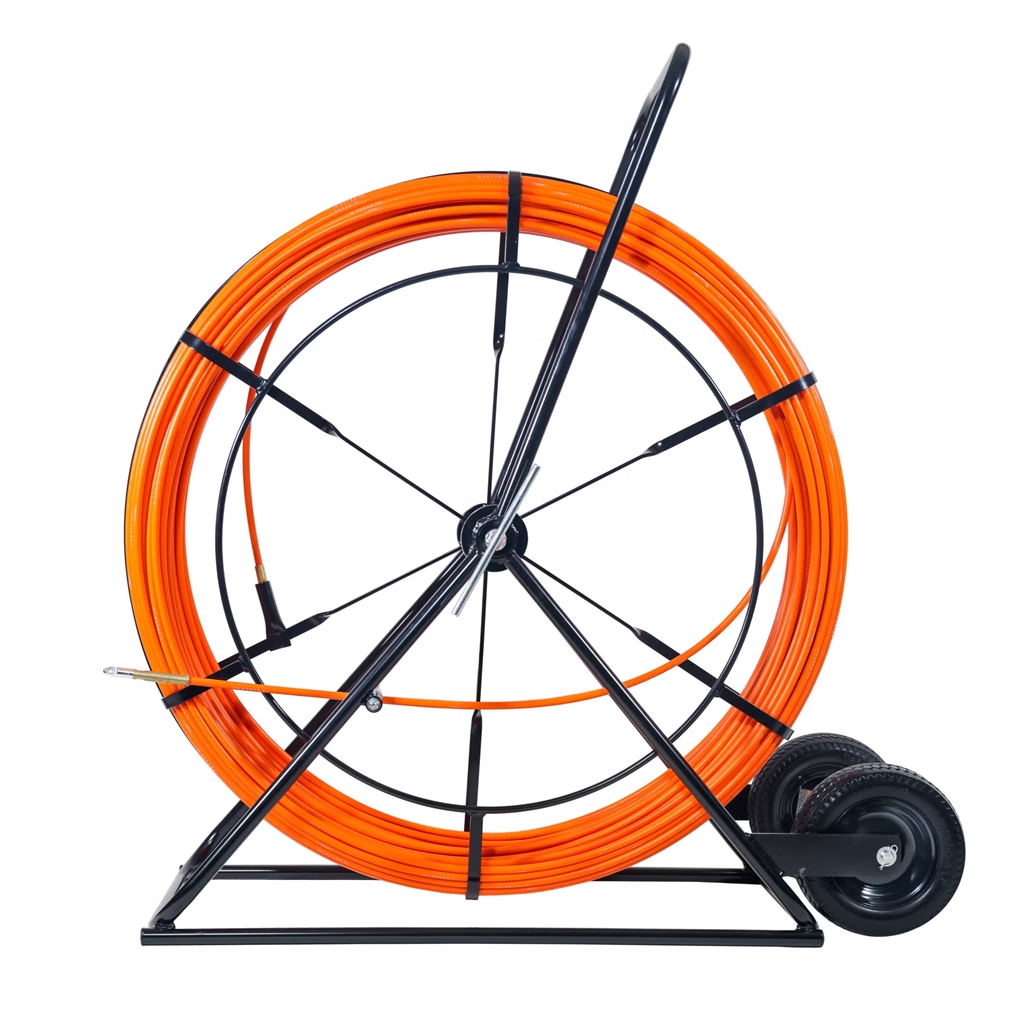

GMP 90248 3/8" Continuous Duct Rodder - 1800 ft (549 m), Standard Orange Rod

The GMP 90248 Continuous Duct Rodder is engineered for maximum performance on long-distance conduit runs where strength, control, and durability are essential. This professional-grade 3/8 inch (9 mm) fiberglass rodder features an impressive 1800 ft (549 m) reach, making it ideal for large-scale underground cable pulling, duct cleaning, and locating applications. Its high-visibility orange fiberglass rod is marked every 2 feet, ensuring accurate length tracking and streamlined operations in the field.

Built to handle demanding conditions, the GMP 90248 combines a heavy-duty powder-coated tubular steel carrier with large airless tires that maintain balance and maneuverability across uneven or rough terrain. A hand-operated brake gives technicians precise control over payout and retrieval, while the rod's flexibility allows it to easily navigate bends without sacrificing tensile strength. This model is a strong choice for telecom, utility, and construction professionals who need dependable long-distance rodder performance every day.

Features:
  • Extended 1800 ft (549 m) reach for long conduit and cable pulling operations
  • Standard (orange, non-toneable) rod for pushing, pulling and cleaning - for tracing duct routes with a transmitter, choose a toneable (detectable) rodder

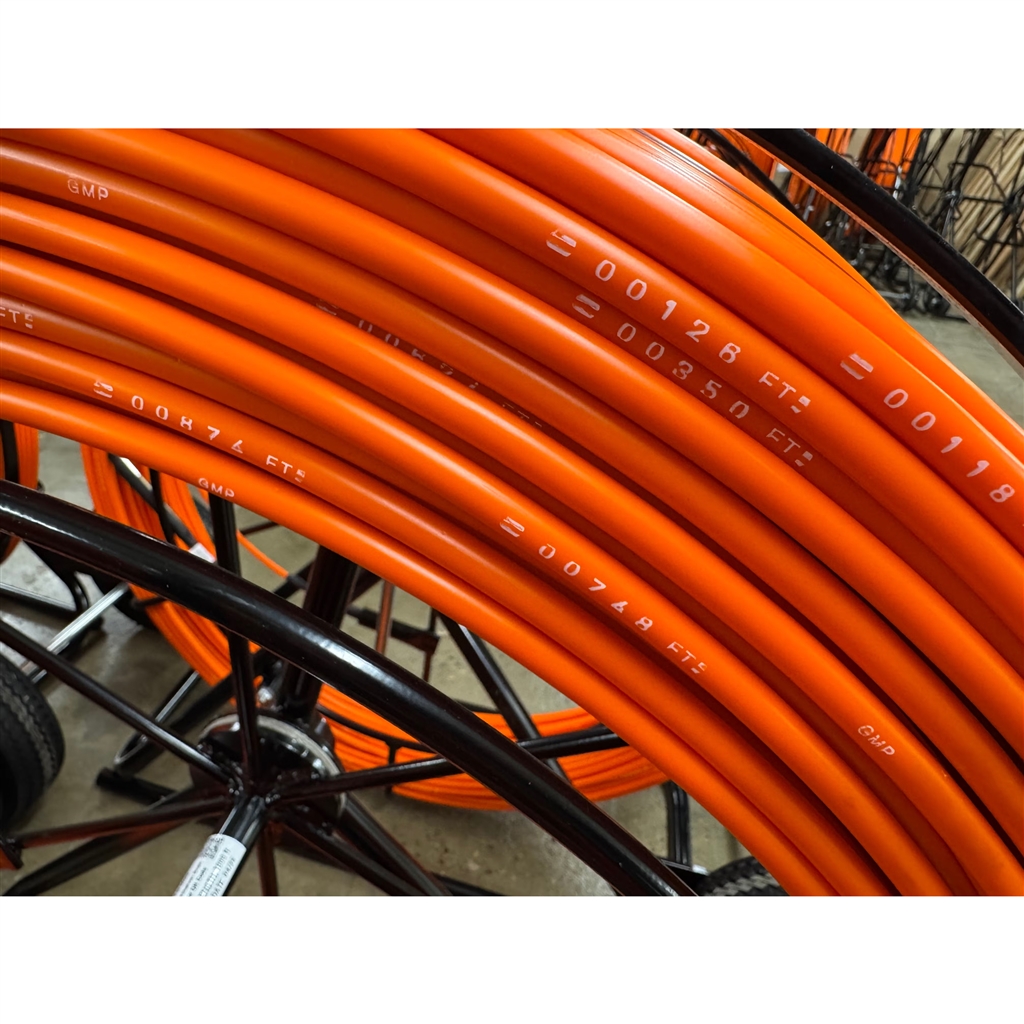

  • 3/8 in. (9 mm) high-visibility orange fiberglass rod with measurement markings every 2 ft
  • Powder-coated tubular steel carrier provides superior corrosion resistance and durability
  • Large airless tires for enhanced stability and mobility on rugged terrain
  • Equipped with male threaded end fitting and tapered head, plus female threaded rear fitting
  • Hand-operated brake system allows smooth and controlled rod payout
  • Optimized rod stiffness and flexibility for efficient navigation through bends
  • Compatible with GMP rodder accessories and replacement rod assemblies for 3/8 in. standard rod
  • Because of the rod length, this 3/8 in. rodder ships on the larger 1/2 in. carrier and stand

  • Specifications:
  • Rod Diameter: 3/8 in. (9 mm)
  • Rod Length: 1800 ft. (549 m)
  • Weight: 183 lbs. (83 kg)
  • Rod Material: High-visibility orange fiberglass with 2 ft interval markings
  • Core Type: Standard fiberglass core (non-toneable)
  • Carrier Construction: Tubular steel alloy, powder-coated for corrosion resistance
  • Brake: Hand-operated manual brake
  • Wheel Type: Large airless tires for easy mobility and balance
  • End Fittings: Male threaded end with tapered head; female threaded fitting on rear
  • End Fitting Threads: 3/8-16
  • Rated Tensile Strength: 10,000 lbs.-f (45.2 kN)
  • Rated Pull Strength: 1,400 lbs.-f (6.2 kN)
  • Minimum Bend Diameter: 12.2 in. (310 mm)
  • Carrier: Larger 1/2 in. carrier and stand (fits the 3/8 in. rod at this length)
  • Carrier Dimensions: 45 in. Dia x 46 in. L x 18.5 in. W x 52.75 in. H (1143 x 1168 x 470 x 1340 mm)
  • Model: 90248

  • Available Lengths:
    Part #GMP #RodLength
    GMP-90228902283/8 in. (9mm) standard500 ft (152m)
    GMP-90230902303/8 in. (9mm) standard600 ft (183m)
    GMP-90238902383/8 in. (9mm) standard1000 ft (305m)
    GMP-90242902423/8 in. (9mm) standard1200 ft (366m)
    GMP-9024890248 (this item)3/8 in. (9mm) standard1800 ft (549m)

    Replacement Parts:
    Part #GMP #Description
    -88347Replacement 3/8 in. standard rod, 1800 ft

    Accessories:
    Part #GMP #Description
    -89425Duct rodder accessory kit for 3/8 in. standard rod, with canvas pouch
    GMP-8941889418Splice repair kit for 3/8 in. standard (orange) rod
    How to Service a Broken Duct Rod How to Service a Broken Duct Rod Fitting
