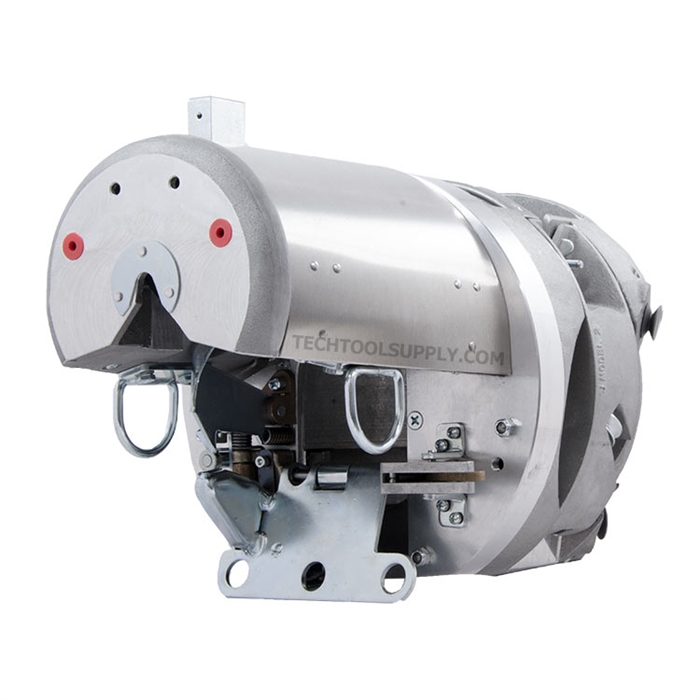

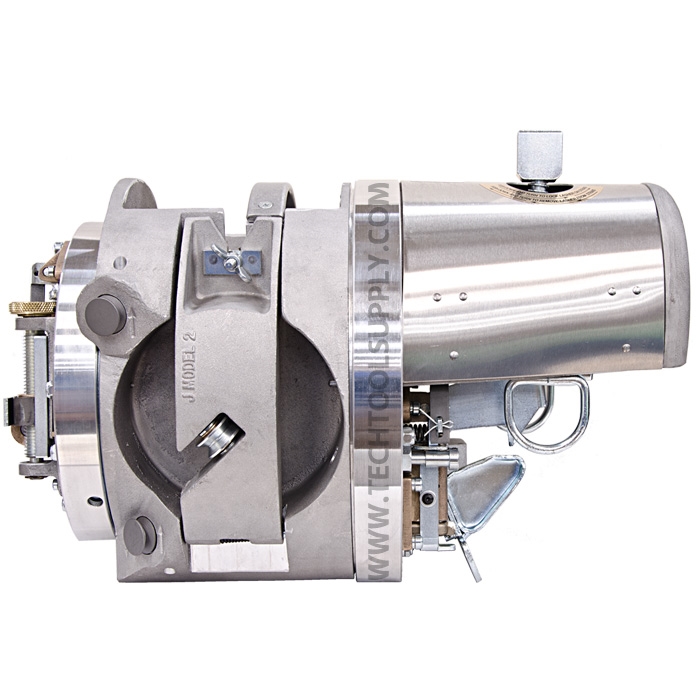

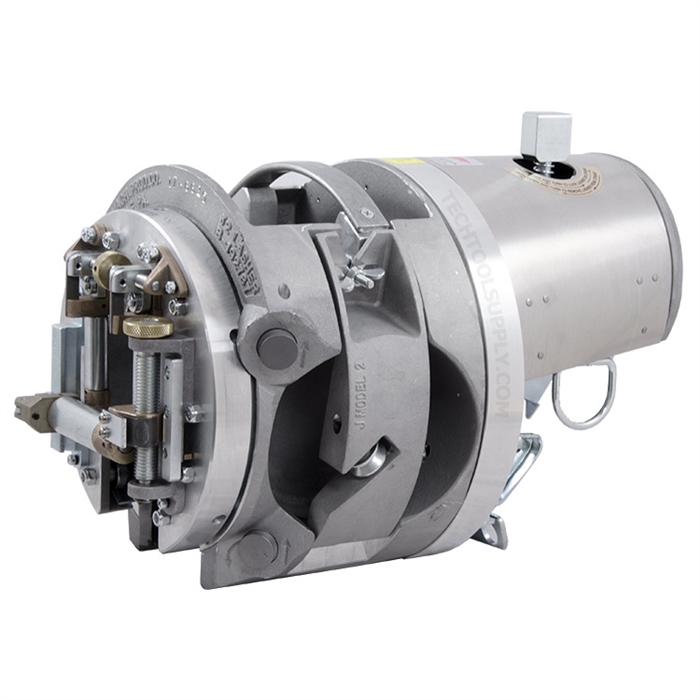

GMP J2 Cable Lasher with Hard Carrying Case - 3" Bundles on 1/4"-7/16" Strand
The J2 Lasher from GMP can lash single or multiple aerial cable bundles up to 3 inches in diameter on a suspension strand of 1/4 inch to 7/16 inches, using stainless steel lashing wire. The J2 has an all-range tensioning device to optimize strand traction and high strength front and rear gates for tighter cable lashing. The J2 features a built-in mechanical brake to prevent unintended reversal and an automatic drum lock for easy span transfer.
Features:
Consists of a rotating drum supported on a carriage that provides the mounting for a driving mechanism, cable lifters, cable and strand rollers
Fast setup procedure, quick coil loading, and automatic drum lock for easy span transfers and smooth forward travel
J2 Lashers make overlashing easy. Just push down on the strand roller knob, rotate it a quarter turn and you can lash additional cables together on previously lashed cable
Positive internal gear to gear mechanism has no chains or belts to stretch, slip or break
Constructed with heat-treated, plated steel, stainless steel, brass and aluminum components. Contains sealed and oilless bearings to minimize maintenance and assure durability
Pre-drilled and tapped at the factory for mounting of the lasher guard or "halo" - for use when lashing in overgrown areas
The J2 and every GMP lasher is fully serviceable to "good-as-new" specifications at the GMP factory

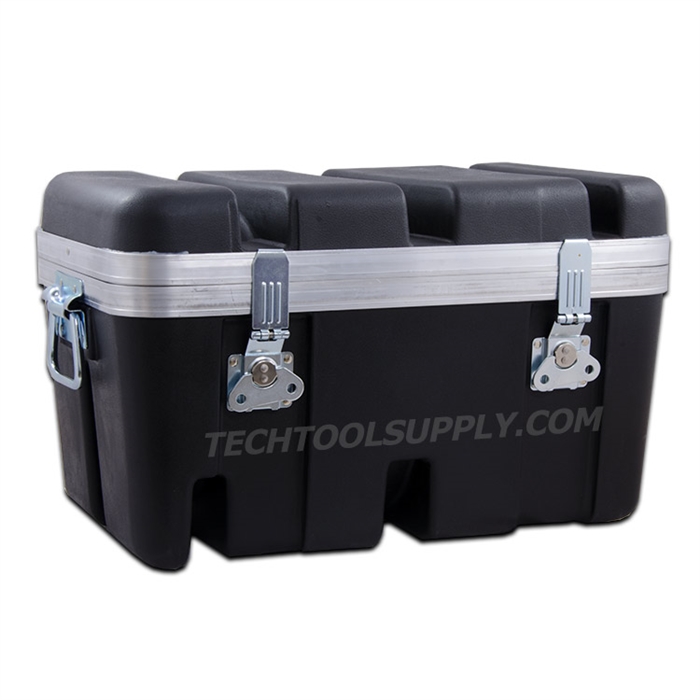

Rugged lightweight storage chest with corrosion resistant hardware, recessed latches and a moisture-proof, tongue-in-groove design for maximum protection when not in use
Includes:
1 x J2 Cable Lasher (86070)

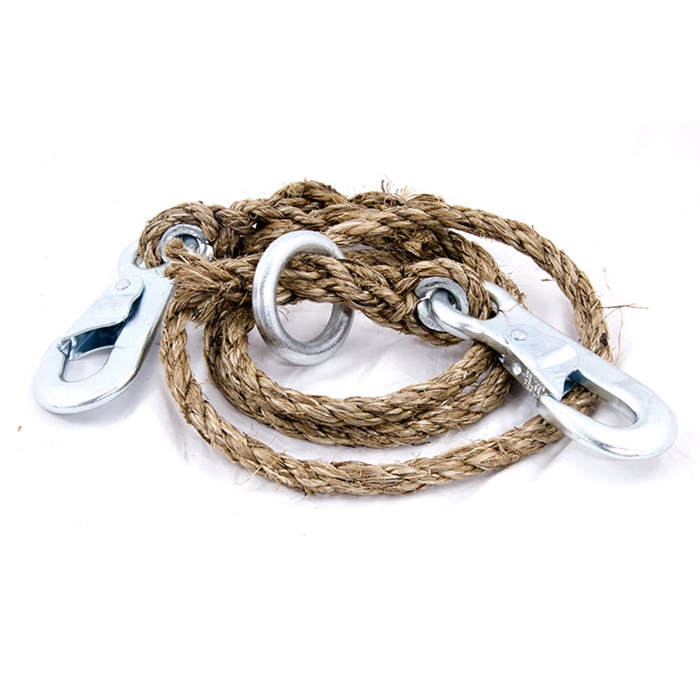

1 x 6 ft. bridle rope assembly with snap hooks
1 x Hard carrying case (storage chest)
1 x Information and operation manual
Specifications:
Ideal Application: Telecommunication, fiber optic, cable TV
Max Bundle Size: Any single or multiple aerial cables up to 3 in. (76 mm) diameter
Strand Size: 1/4 in. (6 mm) to 7/16 in. (11 mm) - 6.6M, 5/16M, 10M, 16M; a factory modification allows 1/2 in. (12.7 mm) strand if necessary
Overlashing: Yes
Drive: Friction drive wheel
Wire Size: .038, .045 in.; .065 in. with factory modification
Magazines: Two recessed magazines, each holds a 1200 ft. coil of .045 in. (365 m of 1.1 mm) lashing wire, fully recessed and covered by a gate
Coil Capacity: 1 or 2, depending on single or double lashing
Dimensions: 19 in. L x 11 in. W x 11 in. H
Model: 86070
Replacement Parts:
| Part # | GMP # | Description |
|---|
| GMP-09299 | 09299 | Thumb screw for J2 lasher handle |
Accessories:
| Part # | GMP # | Description |
|---|
| GMP-03165 | 03165 | Bridle rope assembly only (replacement) |
| - | 08189 | Storage chest only |
| - | 70190 | Towing lanyard, 35 ft (250 lbs WLL), optional |
| - | 70012 | Lasher guard "halo" for J2, optional |
| - | 70014 | Lasher guard template tool - needed to install the halo on older units |
| GMP-70467 | 70467 | Cable lashing parallel pull bridle tool for J2 and C2 |
| - | 33286 | Ice Breaker lasher drive wheels |
| GMP-71526 | 71526 | Lashing wire, 302 stainless, .038" x 1600 ft coil |
Related Products:
| Part # | GMP # | Description |
|---|
| - | 86071 | J2 Cable Lasher - modified for 450 ft of .065 in. wire |
| - | 86072 | J2 Cable Lasher - modified for 1/2 in. strand |
| - | 86078 | J2 Cable Lasher - modified for 5/8 in. strand |
