New!  HellermannTyton 18lb 4in Orange Cable Tie - 1000pk

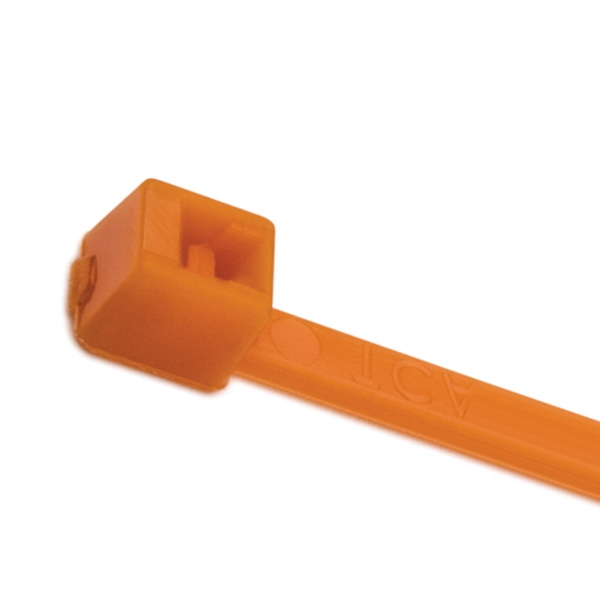

HellermannTyton 18lb 4in Orange Cable Tie - 1000pk


TTS PRICE: $38.99


STATUS:  IN STOCK

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: HLT-T18R3M4
QUANTITY:

PRODUCT DESCRIPTION


The HellermanTyton T18R3M4 T-Series Cable Ties feature inside serrations to provide a positive hold on wire and cable bundles. The head design guarantees high tensile strength and a low insertion force. The bent tail design allows quick and simple installations by hand. For high-volume applications, tensioning tools are available to ensure consistent and safe installation. Specially manufactured to comply with Military Specification MS3367-4-1, Class 1 and SAE-AS33671.

Features:
  • Engineered and manufactured for maximum performance and quality
  • Made from 100% high-quality plastic to ensure efficient recycling
  • Inside serration for a strong grip onto bundles
  • Easy application either manually or with a tensioning tool
  • Bent tail allows for simpler insertion
  • Complies with MS3367-4-1, Class 1 and SAE-AS33671

    • Specifications:
  • Color: Orange
  • Quantity: 1,000 pieces
  • Minimum Tensile Strength (Imperial): 18
  • Minimum Tensile Strength (Metric): 80
  • Length L (Imperial): 3.94
  • Length L (Metric): 100.0
  • Identification Plate Position: none
  • Releasable Closure; No
  • Tie Closure: plastic pawl
  • Variant: Inside Serrated
  • Width W (Imperial): 0.10
  • Width W (Metric): 2.5
  • Bundle Diameter Min (Imperial): 0.06
  • Bundle Diameter Min (Metric): 1.5
  • Bundle Diameter Max (Imperial): 0.87
  • Bundle Diameter Max (Metric): 22.0
  • Thickness T (Metric): 1.0
  • Cable Tie Head Length (Imperial): 0.19
  • Cable Tie Head Width (Imperial): 0.18
  • Height H (Imperial): 0.15
  • Height H (Metric): 3.7
  • Material: Polyamide 6.6 (PA66)
  • Material Shortcut: PA66
  • US MIL SPEC: SAE-AS33671 / MS3367-4-1, Class 1
  • Flammability: UL 94 V-2
  • Halogen Free: Yes
  • UV Resistant (Yes/No): No
  • Use Conditions: For Indoor Use Only
  • Plenum Rating: AH-2
  • Operating Temperature: -40°F to +185°F (-40°C to +85°C)
  • Reach Compliant (Article 33): Yes
  • ROHS Compliant: Yes
  • Certification/Specification: UL 62275
  • UL Recognized (US): Yes
  • UL Listed (US and Canada): Yes
  • UL Recognized (US and Canada): Yes
  • UL Listed (US): Yes
    •
