Holland Electronics 30dB Rack Mount Amplifier 50-860MHz

Home > Categories > RF Distribution > Amplifiers > Rack Mount Amplifiers >

TTS PRICE: $370.99

STATUS: ON ORDER

Availability:

Normally Ships Same Day

PRODUCT CODE: HCA3086RK

QUANTITY:

PRODUCT DESCRIPTION

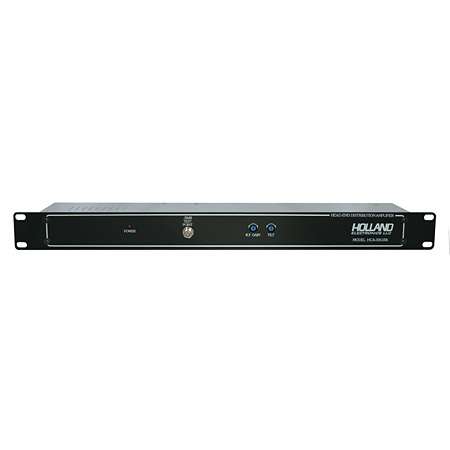

Holland's HCA-3051RK and HCA-3086RK are high-output hybrid rack-mountable amplifiers perfect for any head-end system.

These high performance amplifiers use push-pull CATV hybrid circuitry providing extremely low noise and distortion. Front panel adjustable slope and gain controls allow easy system balancing.

Features:

Push-Pull CATV Hybrid Circuitry

High Output

Adjustable Gain & Slope

Auxiliary AC Outlet

Specifications:

-30 dB Output Test Port

Gain: 30dB

Gain Adjustment: 18dB

Frequency Range: 54-860MHZ

Channels: 2-135

Maximum Input: 11 dBmV (134 Ch.)

Maximum Output: 41 dBmV (134 Ch.)

Slope: 15 dB (Adj.)

Flatness:±1 dB

Noise Figure: 6.5 dB

Input Return Loss (Min.): 12 dB

Output Return Loss (Min.): 12 dB

Cross Modulation (XMOD): -58 dB

Composite Second Order (CSO): -75 dB

Composite Triple Beat (CTB): -60 dB

Power Requirements: 117VAC, 60Hz, 8 W

Operating Temperature: -20 ̊ to 60 ̊ Celsius

Dimensions: 17? x 3? x 1.75?

Weight: 4.35 lbs.

More Information.
