Holland HMA-860E Agile Analog Channel Modulator, 54-860 MHz

Home > Categories > RF Distribution > Modulators >

Agile Channel Modulator, 60dB Output, Ch: 2-135

TTS PRICE: $399.99

STATUS: ON ORDER

Availability:

SHIP ESTIMATE 11-13 DAYS

PRODUCT CODE: HOL-HMA-860E

QUANTITY:

PRODUCT DESCRIPTION

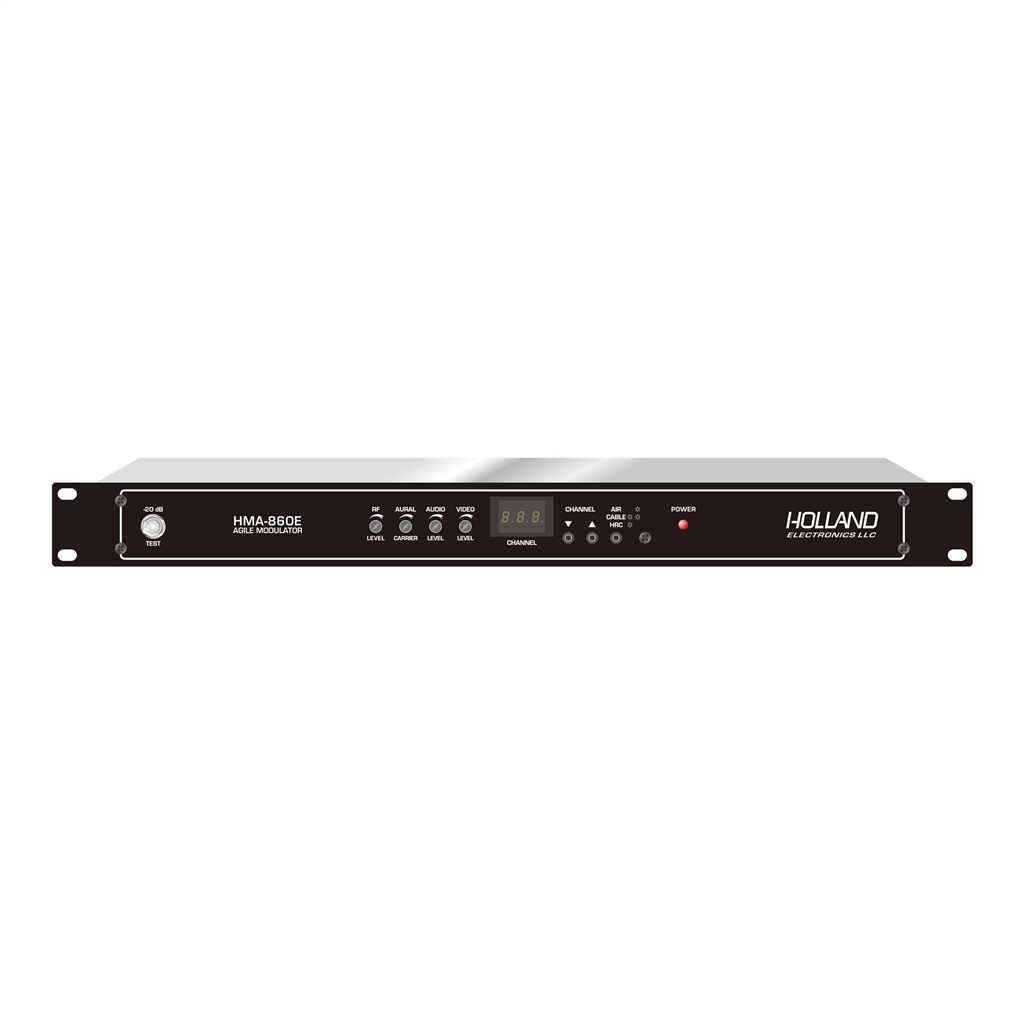

The Holland HMA-860E is a frequency-agile audio/video modulator for CATV and SMATV headends, converting a baseband A/V source to any channel from 54 to 860 MHz. CPU control with a 3-digit LED channel display and last-channel memory makes setup fast, while a SAW filter delivers accurate sideband response and high adjacent-channel rejection for clean multi-modulator installations.

Features

Frequency agile, 54-860 MHz output with adjacent channel capability
CPU control, 3-digit LED channel display, last channel memory
SAW filter for accurate sideband response and high adjacent rejection
2 PLL synthesized channel control with audio pre-emphasis
Low out-of-band noise for multiple modulator installations; high VSB attenuation
Meets FCC offset and accuracy requirements; -20 dB test port

Specifications:

Model: HMA-860E Agile Modulator
Part #: HMA-860E
Output frequency range: 54-860 MHz agile
Output level: 55 dBmV, continuously adjustable over 15 dB
Aural/visual carrier ratio: 15/20 dB selectable
Output impedance: 75 ohm, F-type connectors (2 AV-RF converters included)
Video: 1 Vp-p input, 0-90% adjustable modulation
Power: 90-260V AC 50/60Hz
Dimensions: 19in (L) x 2.25in (W) x 1.75in (H), 1.6 kg

Click Here for Spec Sheet
