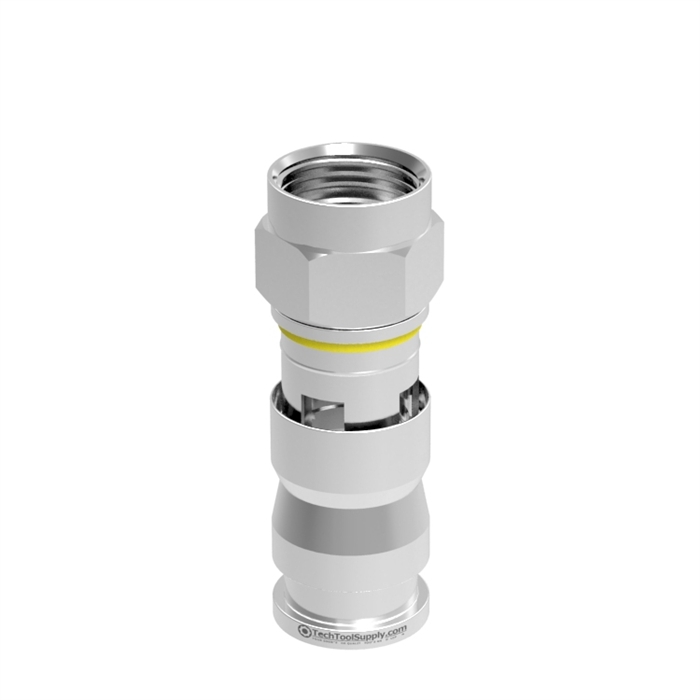

Super-Fast MCV RG59 F Compression Connector - 25pc

Super-Fast MCV RG59 F Compression Connector - 25pc




TTS PRICE: $13.99

STATUS:  IN STOCK



Availability:
Normally Ships Same Day

PRODUCT CODE: HOL-F59-MCV
QUANTITY:

PRODUCT DESCRIPTION


If you install compression connectors, you know that folding the braid back on your cable can be time consuming, and often times painful. Holland Electronics new MCV connectors do NOT require you to fold the braided shielding back! You are not going to believe how fast and simple these connectors are to install!

Holland Electronics created this compression connectors with the Commercial AV Installer in mind. The MCV Universal Compression Connectors fits a wide variety of coaxial cables that vary in size between manufacturers. Some differences often include thickness of jacket or diameter of insulation depending on variance in materials used in the cable manufacturing process.

Features:
  • Easy insertion
  • All metal construction
  • Optimized for digital video applications
  • Patented viewing window
  • Accommodates color-coded application bands (Found Here)

  • Specifications:
  • Quantity: 25
  • Cable Type: RG59
  • Connector: F
  • Frequency Range: DC - 3,000 MHz
  • Return Loss (1 GHz): > -27dB
  • Return Loss (3 GHz): > -21dB
  • Insertion Loss (1 GHz): < .15 dB Max
  • Jacket O.D. Range: 5.8 - 6.1
  • Pull Force: 55 lbs. typical

  • Feature Sheet & Sizing Info

    Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 1 WRITE A REVIEW

      So far, this Product Review was helpful to 0 TTS Customers.

    5 of 5 The REAL McCoy August 28, 2018
    Reviewer: Stewart Frederick from SAINT PETERSBURG, FL United States
    Actually the NEW real McCoy, not the old crimp type.
    These babies and see that prep tool in action. Does the whole 9 yards, not just cut the outside insulation.
    I just noticed things have gotten better. Not my trade.
