Inno Instruments MINI2 OTDR Kit

Inno Instruments MINI2 OTDR Kit




Alternative Views:


TTS PRICE: $2,800.00

STATUS:  IN STOCK


Availability:
Normally Ships Same Day

PRODUCT CODE: INNO-MINI2
QUANTITY:

PRODUCT DESCRIPTION

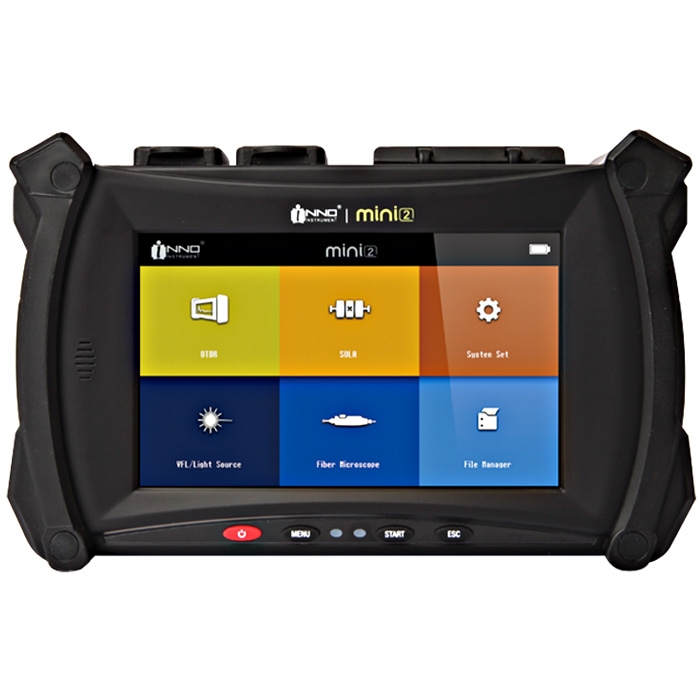

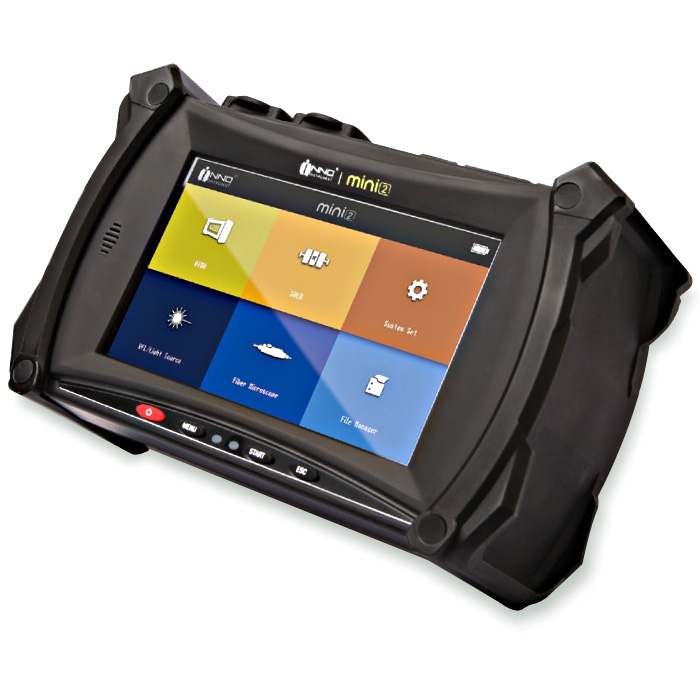

This compactly designed and lightweight MINI2 OTDR from Inno Instrument features high precision test capabilities, fast response time and user-friendly operation with the multi-point capacitive touch screen. The MINI2 OTDR offers accurate and fast test results and creates a report automatically. Now it’s time for you to experience this small but accurate OTDR.

OTDR mode allows for measuring distance, loss, reflectivity, attenuation, and accumulation loss on a fiber optic link.

SOLA is an application for the OTDR, designed to simplify the OTDR test process without the need to configure the parameters or analysis while parsing multiple complex OTDR curves.

VFL can locate fault location in the fiber directly and also perform as a core calibration tool for multi-fiber cables.

Microscope is mainly used to test cleanliness and flatness of the fiber cross-section. (peripheral required)

File Manager provides convenient file management system allowing users to efficiently manage obtained result files.

Invisible light source (1310 or 1550ns) can provide the following sources of light: CW light, 1kHz light, 2kHz light, 1kHz blink light, 2kHz blink light.

Features:

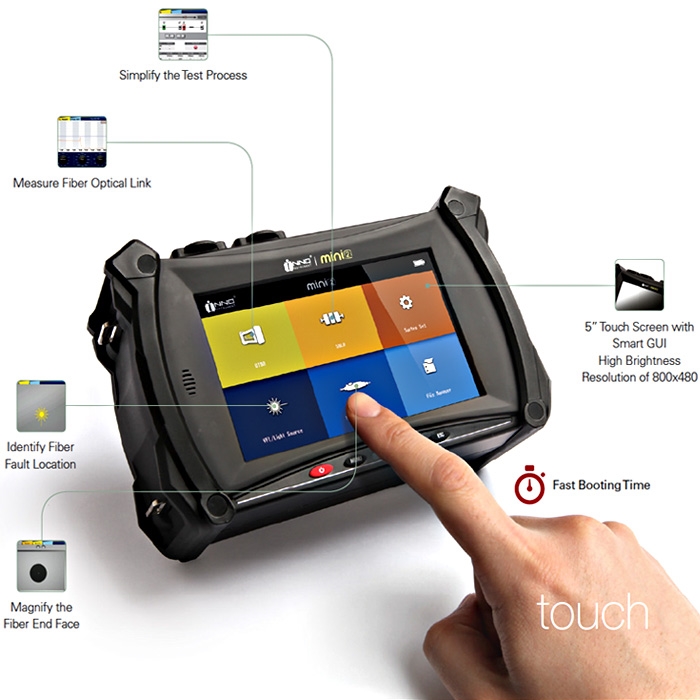

  • SOLA (Smart Optical Link Analyzer)
  • 5” Touch Screen with Smart GUI
  • 8GB Internal Storage with Internal SD Card & External USB Memory
  • Built-In VFL and Light Source
  • Fast Booting Time
  • Lightweight and Handheld

  • Specifications:
  • Model: MINI2
  • Display: 5 inches, High Brightness TFT LCD, resolution of 800×480
  • Distance unit: m / km / mile / ft
  • Dynamic range: 32dB / 30dB (1310nm / 1550nm)
  • Measurement range (km): 1.3, 2.5, 5, 10, 20, 40, 80, 120, 160, 260km
  • Measurement range (mile): 0.81, 1.55, 3.11, 6.22, 12.4, 24.8, 49.6, 74.6, 99.4, 161.5mile
  • Pulse width: 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 10μs, 20μs
  • Dead zone (Event/Attn./PON): 1m / 5m / 50m
  • Distance accuracy: ±(1m+Distance×2.5×10-5 +Sampling resolution)
  • Linearity: 0.03dB
  • Sampling points: 110,000 points
  • Refractive index: 1.000000 - 2.000000 (step: 0.000001)
  • Splitting ratio: Up to 1:32 splitter
  • Resolution: 0.04m ~ 10.24m
  • Loss readout resolution: 0.001dB
  • Battery capacity: Operating Time : Up to 12hours
  • File format: SOR(Telcordia), BMP, JPG
  • External connection: USB 2.0
  • Compatible connector: APC(FC, SC, LC), UPC(FC, SC, LC, ST)
  • Power supply: AC Input 100-240V, 50-60Hz / DC Input 19V, 3.42A

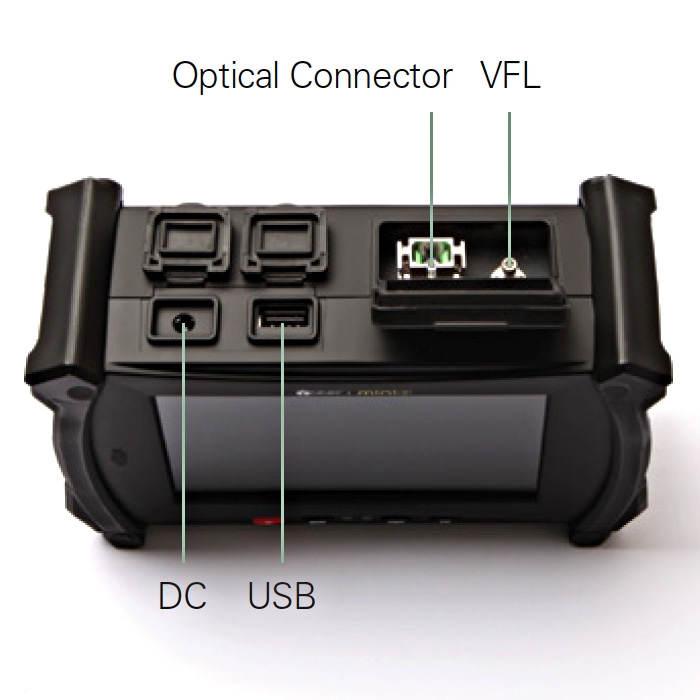

  • VFL port: 2.5mm ferrule type
  • VFL wavelength: 650nm ±10nm
  • VFL distance: Up to 15km
  • VFL output power: 20mW
  • Light source: Operating wavelength: 1310nm / 1550nm ±10nm
  • Light source output power: -5dBm
  • Dimension: 4.52H x 6.81W x 2.51D inches
  • Dimension excluding rubber bumper: 115H x 173W x 64D mm
  • Weight: 1.98pounds (0.90kg with battery)
  • Operating conditions: -10~50 celcius
  • Storage conditions: -20~60 celcius
  • Relative humidity: 0~95% (Noncondensing)

  • Kit Includes:
  • OTDR MINI2
  • Power cable / AC Adapter
  • Carrying case
  • Shoulder strap / Touch pen
  • Calibration certificate

  • MINI2 Catalog
    MINI2 User Manual
