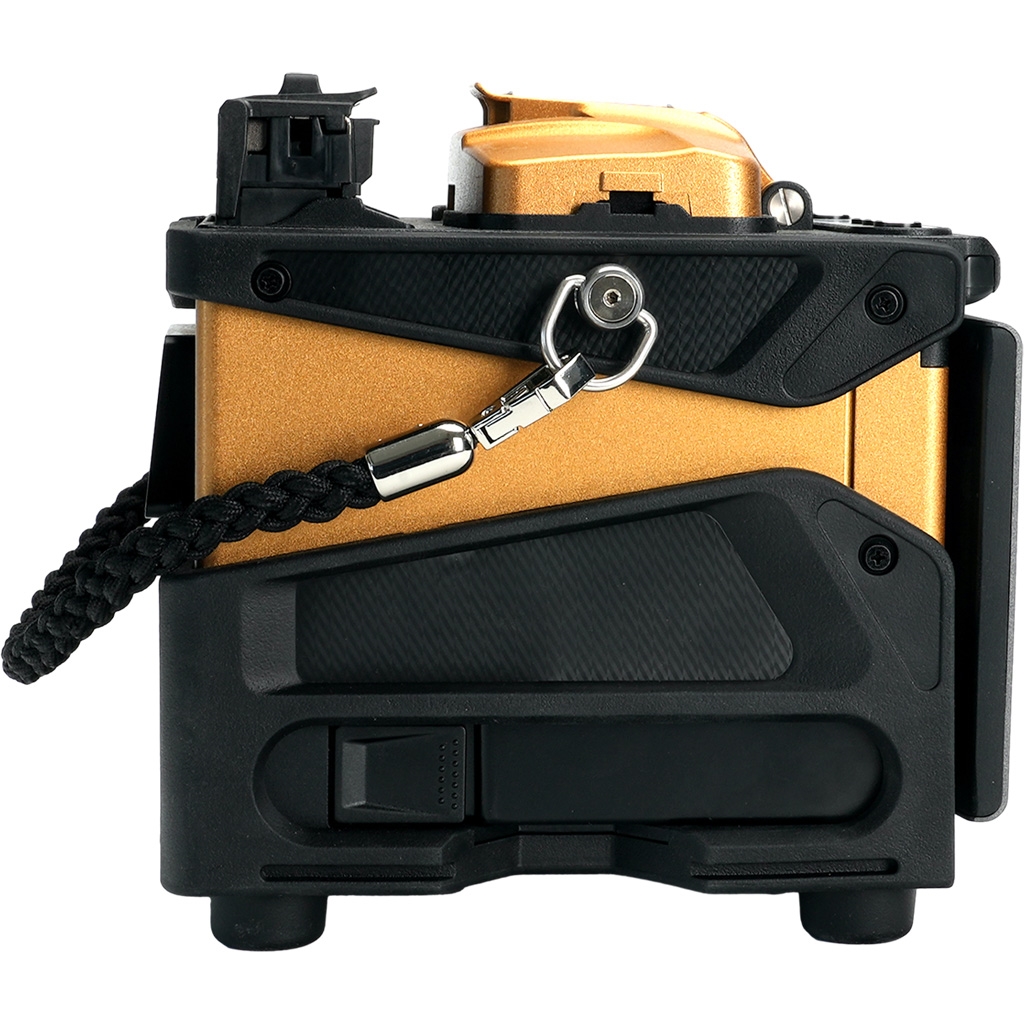

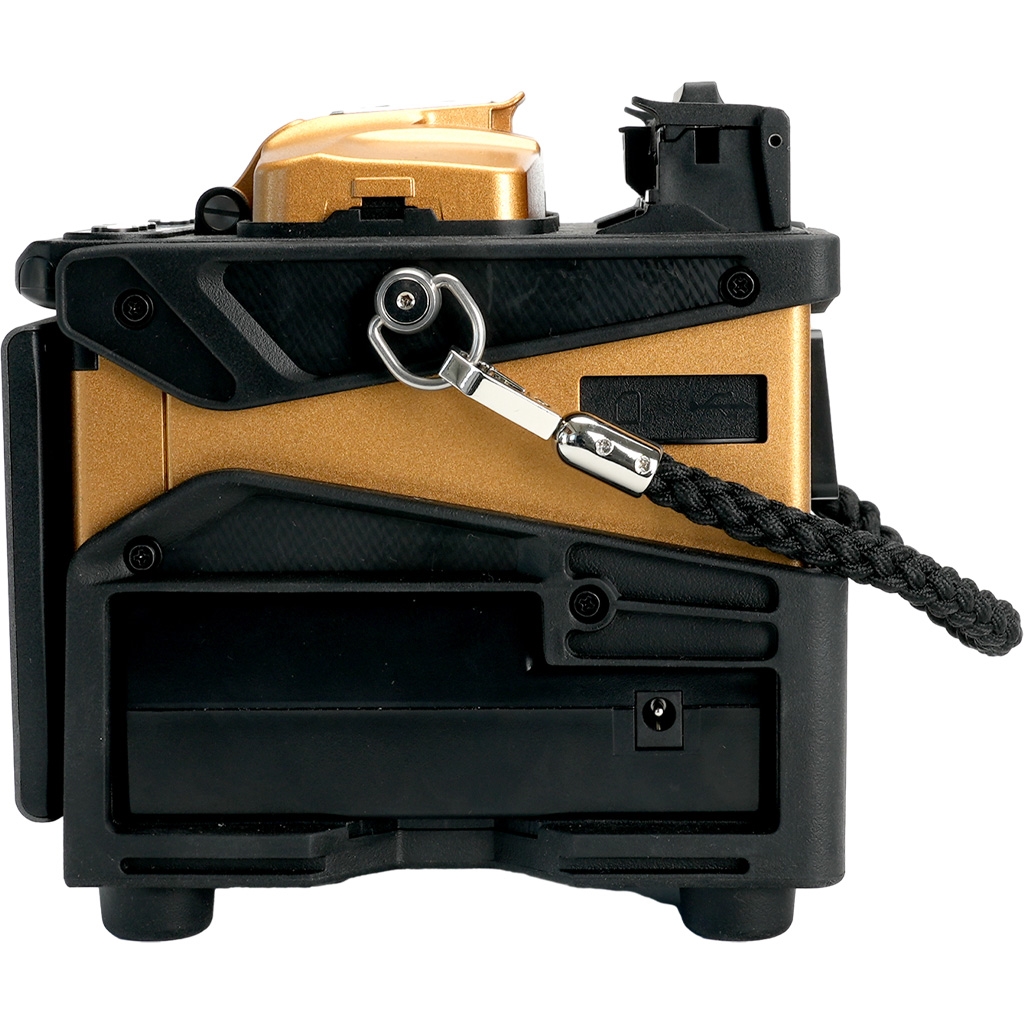

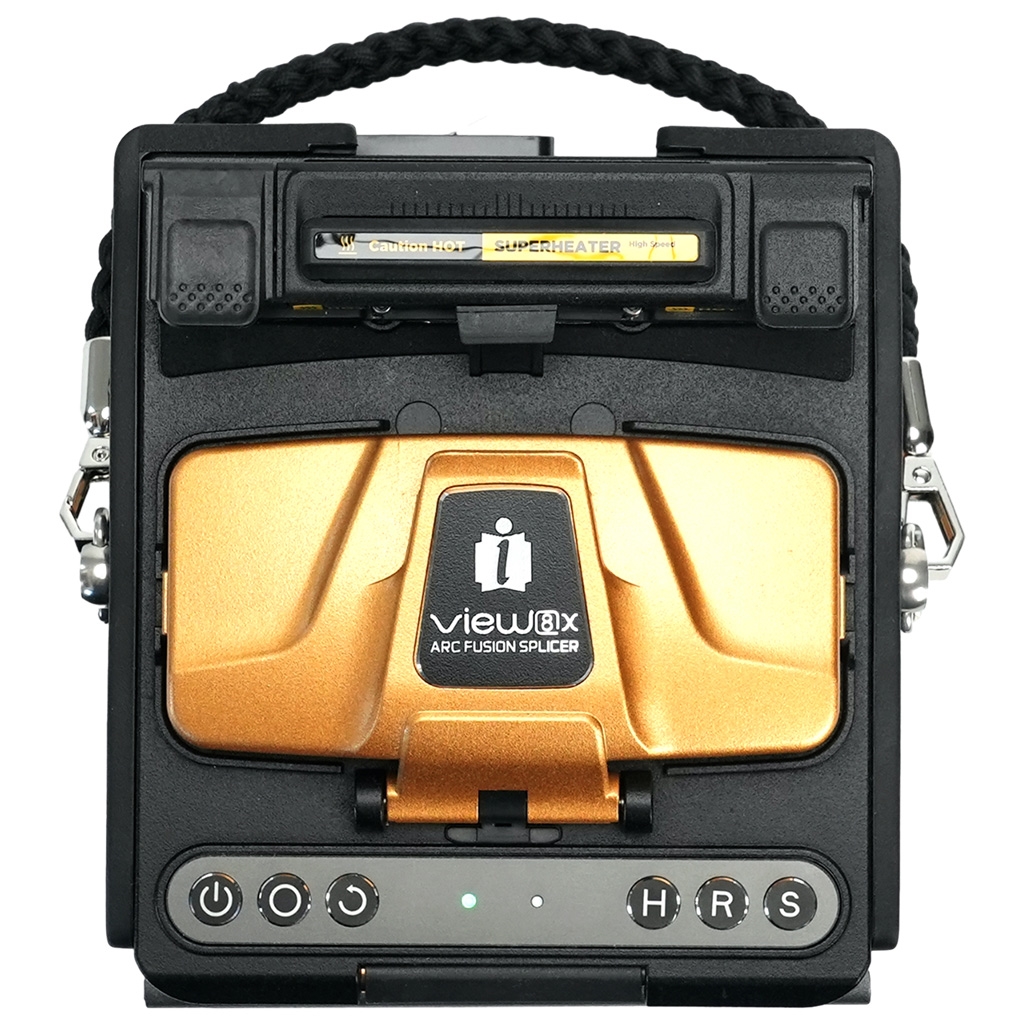

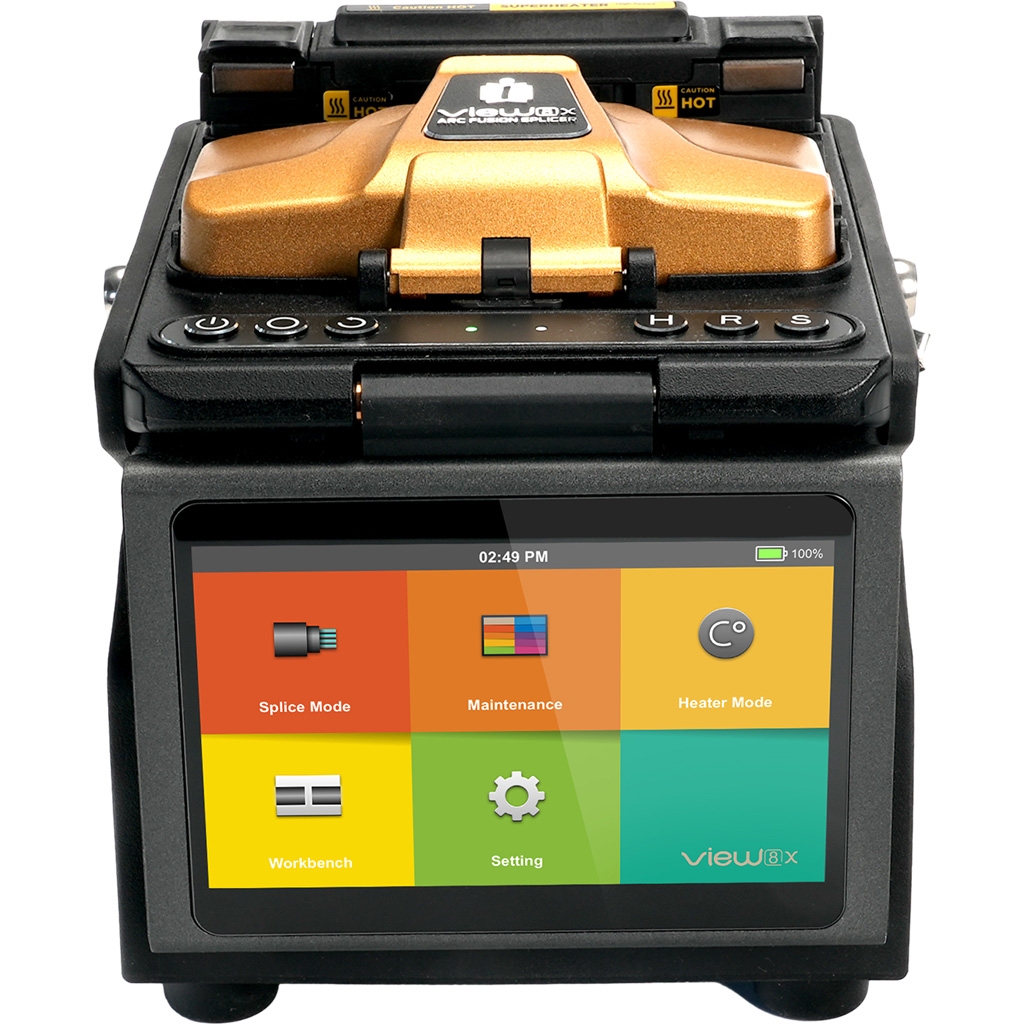

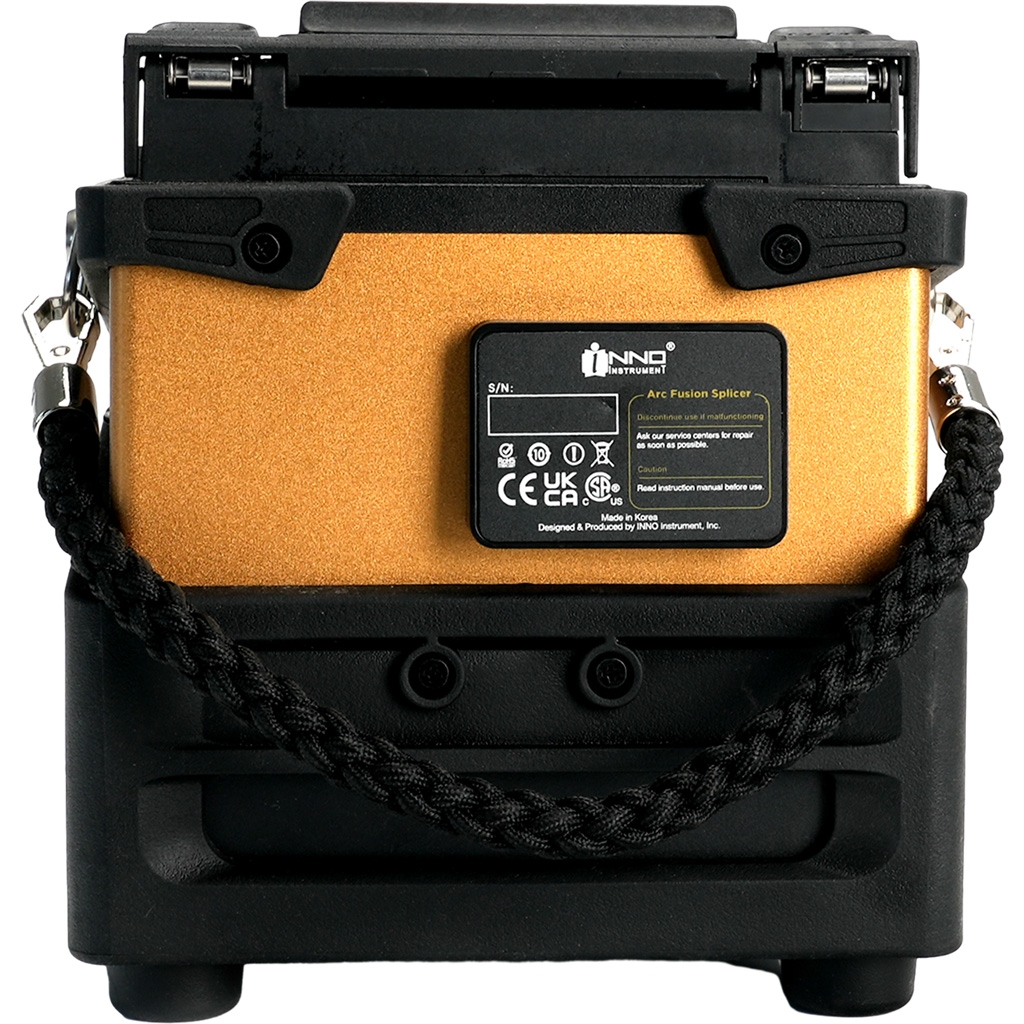

Inno VIEW 8X Premium Core Alignment Fusion Splicer

Inno VIEW 8X Premium Core Alignment Fusion Splicer




Alternative Views:


TTS PRICE: $9,040.00

STATUS: ON ORDER



Availability:
Normally Ships Same Day

PRODUCT CODE: INNO-VIEW-8X
QUANTITY:

PRODUCT DESCRIPTION


The VIEW 8X is a Premium Core Alignment Fusion Splicer with AI-Driven Features and embedded IoT & GPS Modules.

Embracing the standout qualities of the esteemed ViewX Series, the View 8X is a beacon of splicing innovation. Its equipped with IoT and GPS modules, ensuring state-of-the-art connectivity and enhanced security. Tailored for both large-scale operations and nuanced, detailed work, the View 8X delivers unmatched precision. As a prime example of our commitment to integrating smart technology into splicing, this model is both versatile and reliable. For those seeking the epitome of splicing excellence, the View 8X stands as a top choice.

Features:
  • The Fastest Splicing Time, Splicing Operation reduced to as little as 4 seconds
  • Pressure Heater Technology, Reducing Operation to Only 9 seconds
  • Versatile Fiber Holder, Switch easily between Standard and Loose-Tube
  • Improved Lighting, For better visibility in dark environment
  • Rapid Response Time, Intuitive Interface | Experience Redefined
  • Increased Energy Efficiency, Increased number of cycles, even with the same battery capacity
  • Water resistance (IPx2)
  • Shock resistance (Drop from 76cm (29.9in))
  • Dust resistance (IP5X)

  • Specifications:
  • Model: VIEW 8X
  • Alignment Method: Core Alignment
  • Number of Fibers: Single
  • Applicable Fibers: SM (ITU-T G.652 & T G.657) / MM (ITU-T G.651) / DS (ITU- T G.653) / NZDS (ITU-T G.655)
  • Coating Diameter: 100m - 3mm
  • Cladding Diameter: 80 - 150m
  • Cleave Length: 5 - 16mm
  • Typical Splice Loss: SM: 0.01dB I MM: 0.01 dB / DS: 0.03dB / NZDS: 0.03dB / G.657: 0.01dB
  • Return Loss: >>60dB
  • Splice Time: Quick mode: Avg. 4 sec / SM mode: Avg. 5 sec /Auto mode: Avg. 7 sec
  • Splice Programs: Max 128 modes
  • Automatic Calibration: Automatic Arc Calibration by air pressure & temperature
  • Electrode Life Span: 6000 Arc Discharges
  • Heating Programs: Max 32 modes
  • Heating Time: Quick: 9s / Average: 13s
  • Protection Sleeve: 20mm - 60mm
  • Data Output: Cloud (View Pro Manager)+ USB-C
  • Splice Memory: 20,000 Splice data / 10,000 Splice image
  • Battery Capacity: 9000mAh / Operation Cycle: 500 cycles (Splicing + Heating)
  • Power Supply: AC Input 100 - 240V, DC Input 9 - 19V

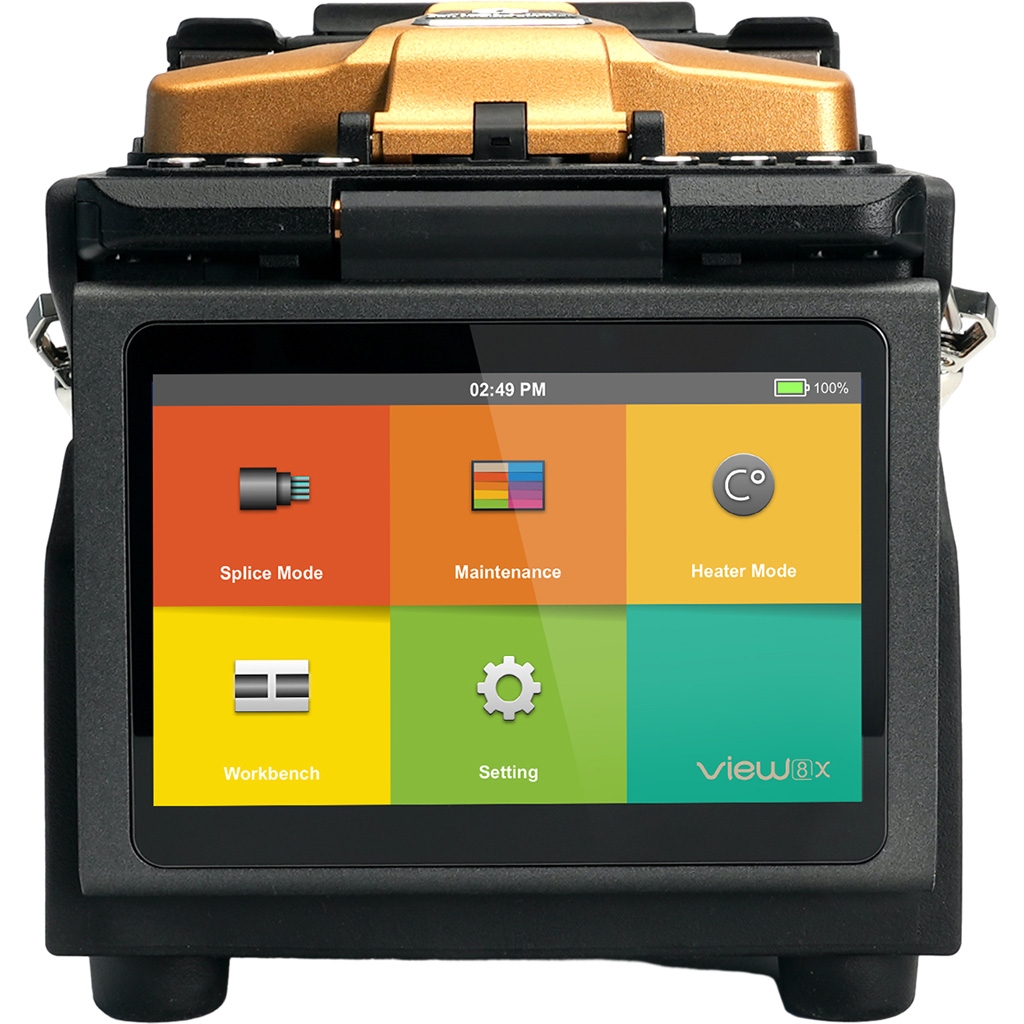

  • Monitor: 5.0" Color LCD display, Full Touch Screen
  • Magnification: x360, x520
  • Size: 162 x 143 x 158mm
  • Weight: 2.19kg
  • Pull Test: 1.96 - 2.25N

  • Operating Conditions:
  • Altitude: 0- 5000m
  • Humidity: 0 - 95%, non-dew
  • Temperature: -10 - 50C
  • Wind: up to 15m/sec

  • Storage Conditions:
  • Humidity: 0 - 95%, non-dew
  • Temperature: -40 - 80C

  • Resistance Tests:
  • Shock Resistance: 76cm for bottom surface drop
  • Exposure to Dust: 0.1 to 500m diameter aluminum silicate
  • Rain Resistance: 10mm/h for 10 mins

  • Applications:
  • Installation & Maintenance
  • All FTTx Fiber Types
  • Large Fiber Count Projects
  • NPrecision-Critical Systems
  • SOC Splicing & Termination
  • Metro/Core/Spine Networks

  • Included:

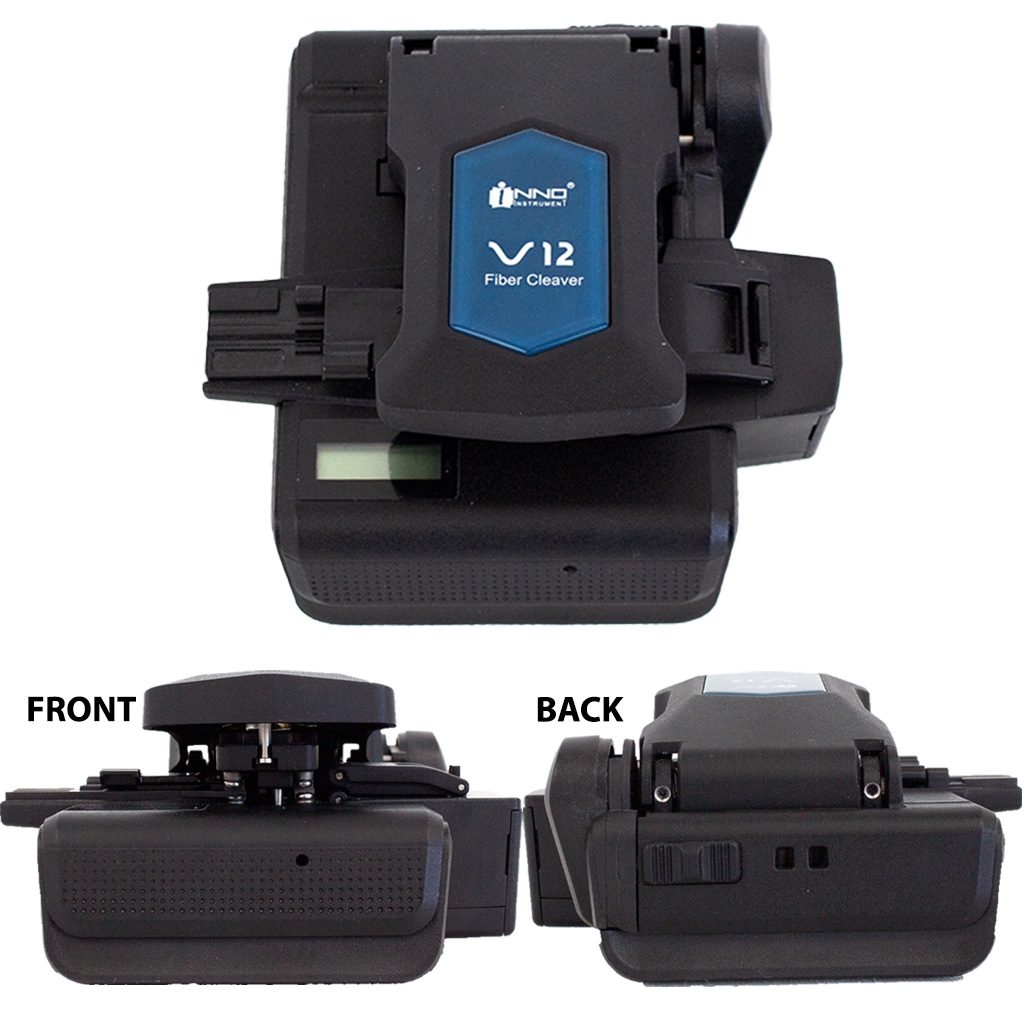

  • Cleaver (V12)
  • SOC Holder (FH-SOC-R)
  • SOC Heater Cover (HTS-SOC-02)
  • AC Adapter (JS-180300)
  • Cooling Tray (CG-23)
  • Electrodes (E-70)
  • Battery Pack (LBT-52)
  • Power Cable (ACC-25)
  • USB Cable (USB-7P)
  • Carrying Case (ICC-55)
  • Shoulder Strap (ST-01)

  • Optional Accessories (NOT INCLUDED):
  • Alcohol pump (TK02-AP01)
  • Stripper (TK02-MP01)
  • Cigarette Lighter Cable (CJ-11)
  • Electrode Grinder (EG-18)
  • 60mm Heating sleeve (PS-60S)

  • If you are looking to purchase any of the optional accessories, please contact a sales representative at 877-208-6657.
