New!  Jameson Cable & Pipe Precision Locating Receiver with Transmitter

Jameson Cable & Pipe Precision Locating Receiver with Transmitter


Alternative Views:


TTS PRICE: $3,852.09


STATUS: ON ORDER

Free Shipping

Availability:
SHIP ESTIMATE 2-4 DAYS

PRODUCT CODE: JAM-17-300RTK
QUANTITY:

PRODUCT DESCRIPTION

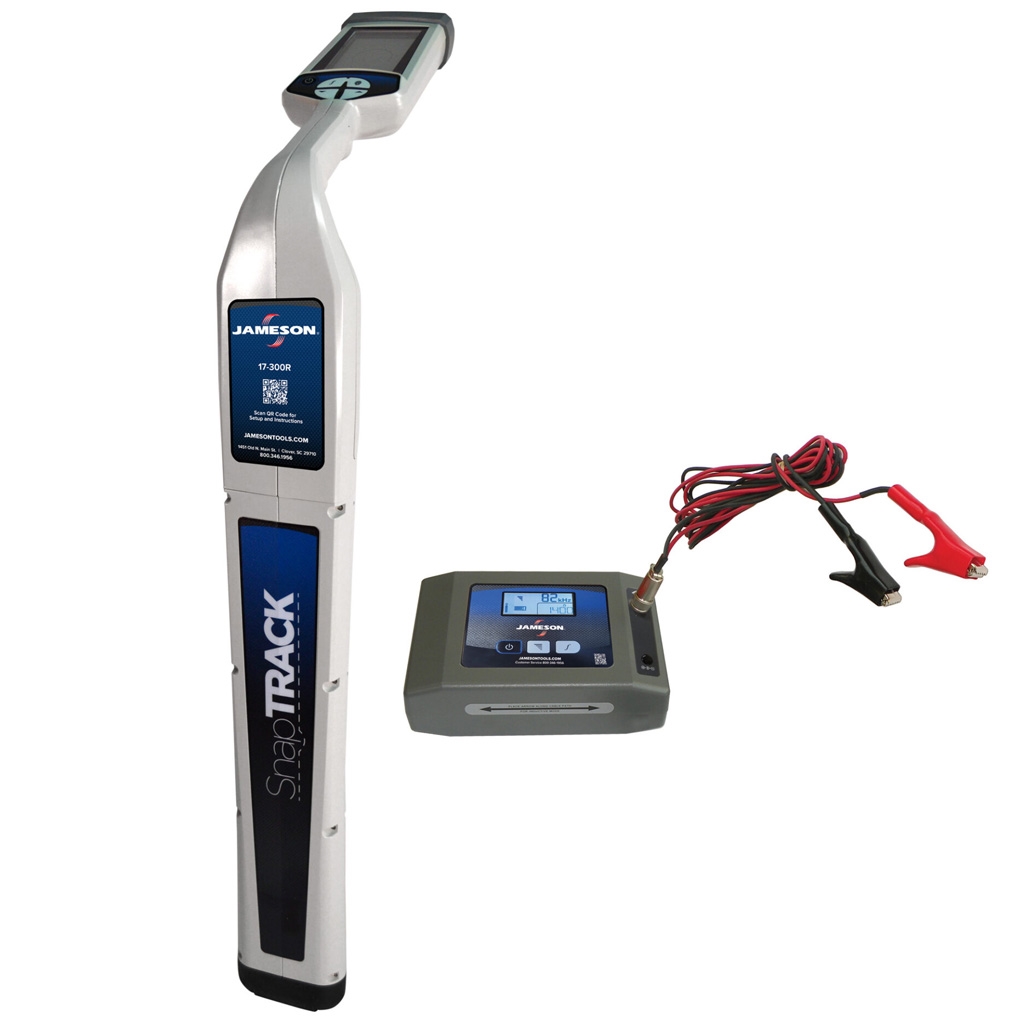

Jameson 17-300RTK Cable & Pipe Precision Locating Receiver with Transmitter Kit

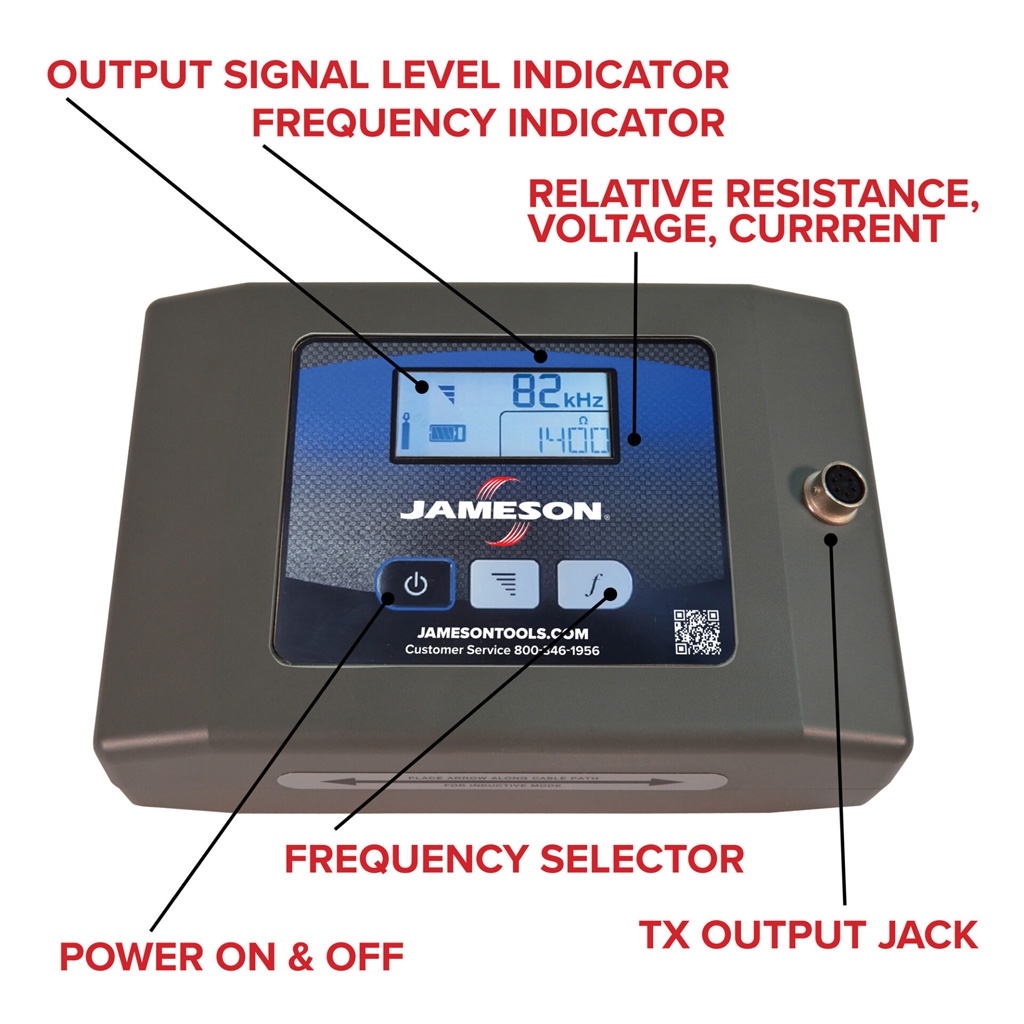

The Jameson 17-300RTK cable and pipe locating system is built on a proven design allowing users to adapt to their needs. Multiple active frequencies allow the user to locate accurately with a minimum of interference while maintaining the ability to continue locating past faults and around conduit bends. Users can control the transmitter's output power and frequency from the hand-held receiver, eliminating the back-and-forth walking between devices.

Locate any energized conductive path - iron, steel, copper water lines, gas lines, tracer wire by plastic pipe, telephone/TV cables, copper and aluminum wire, conduit, power lines, and Duct Hunter™ Traceable Rodders.

Features:
  • Intuitive keypad simplifies the user interface
  • Multi-channel processor for simultaneous field detection, ensuring accuracy
  • Customizable frequencies and operational modes
  • Four (4) active frequencies: 512 Hz, 8 kHz, 33kHz, 82 kHz
  • Two (2) passive frequencies: 60 Hz power and RF
  • Three (3) operating modes: peak, null and sonde
  • Automatic Impedance Matching Technology maximizes transmission range while minimizing power consumption
  • Remotely controls the transmitter from the receiver to more than 400 yards
  • Constant depth & current measurement: real time updates on line depth and signal condition

  • Includes:

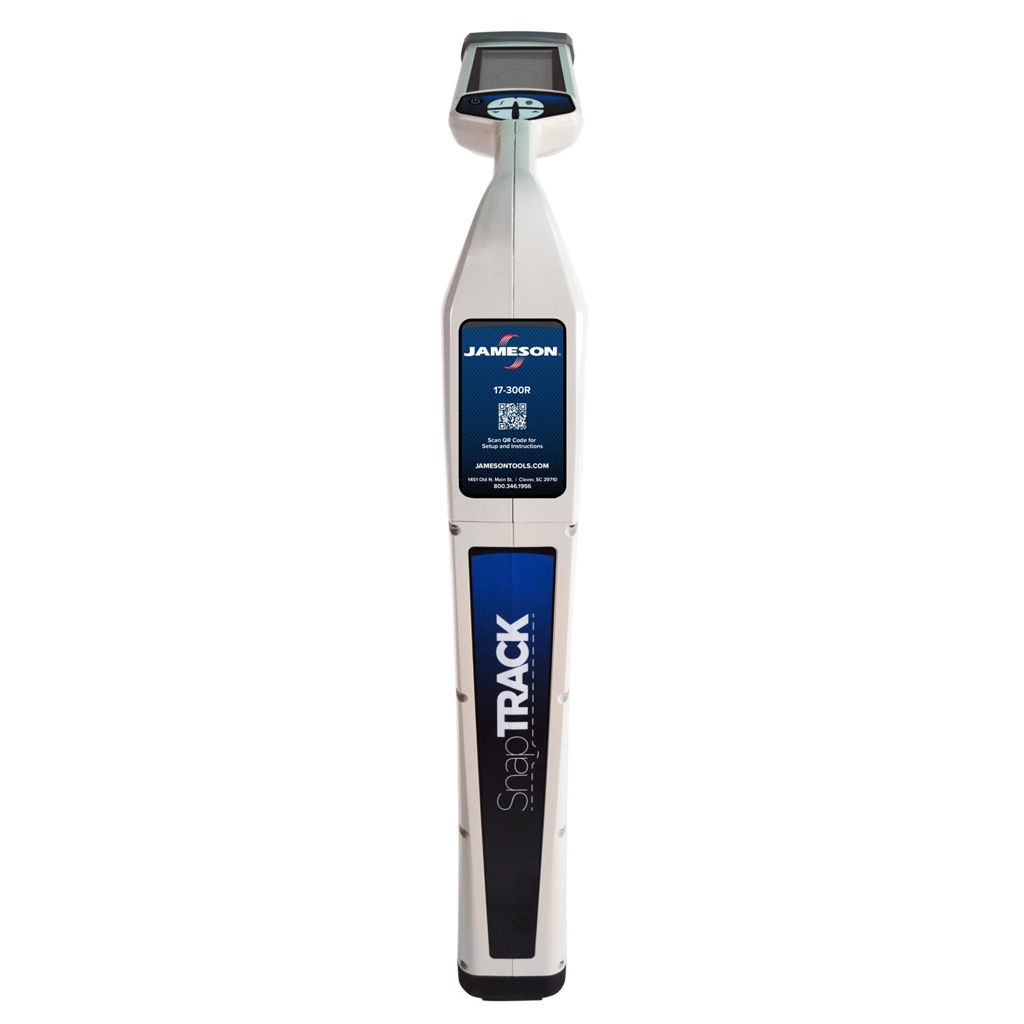

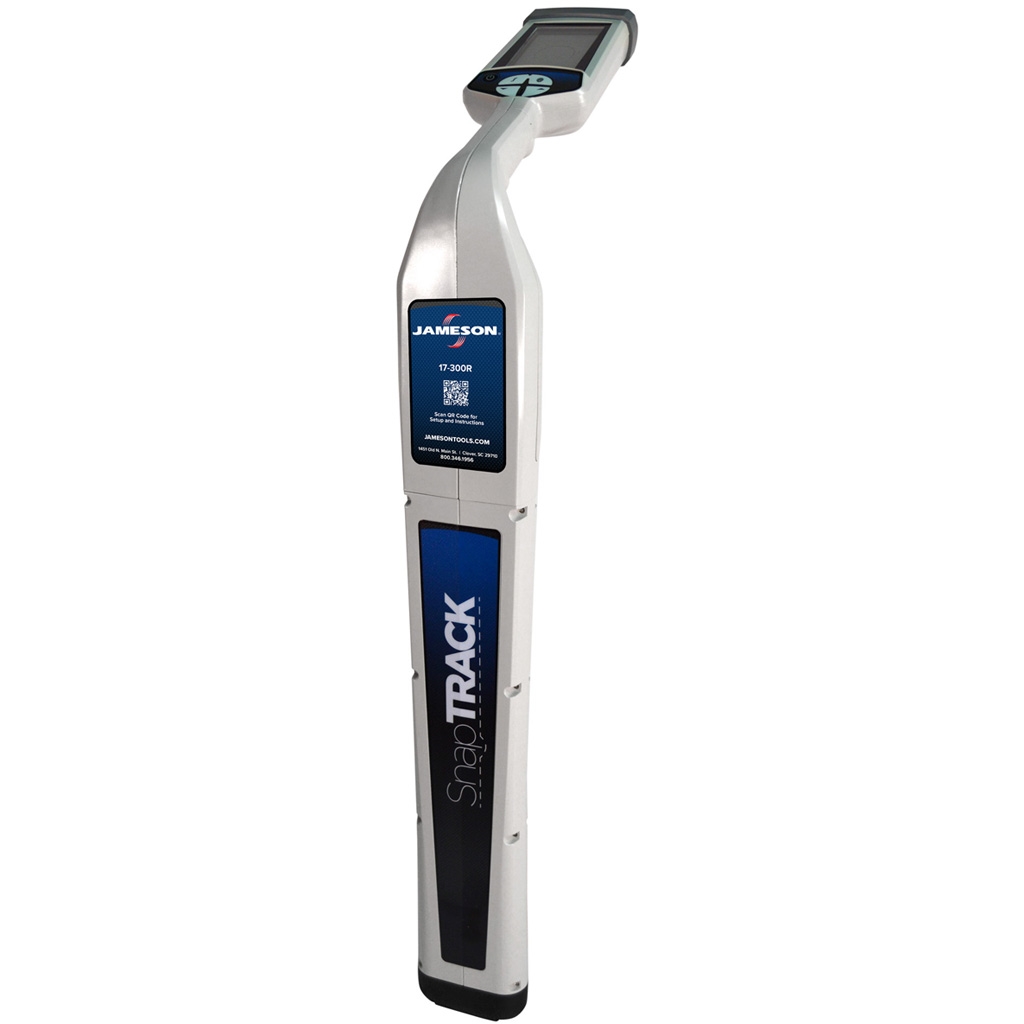

  • Receiver

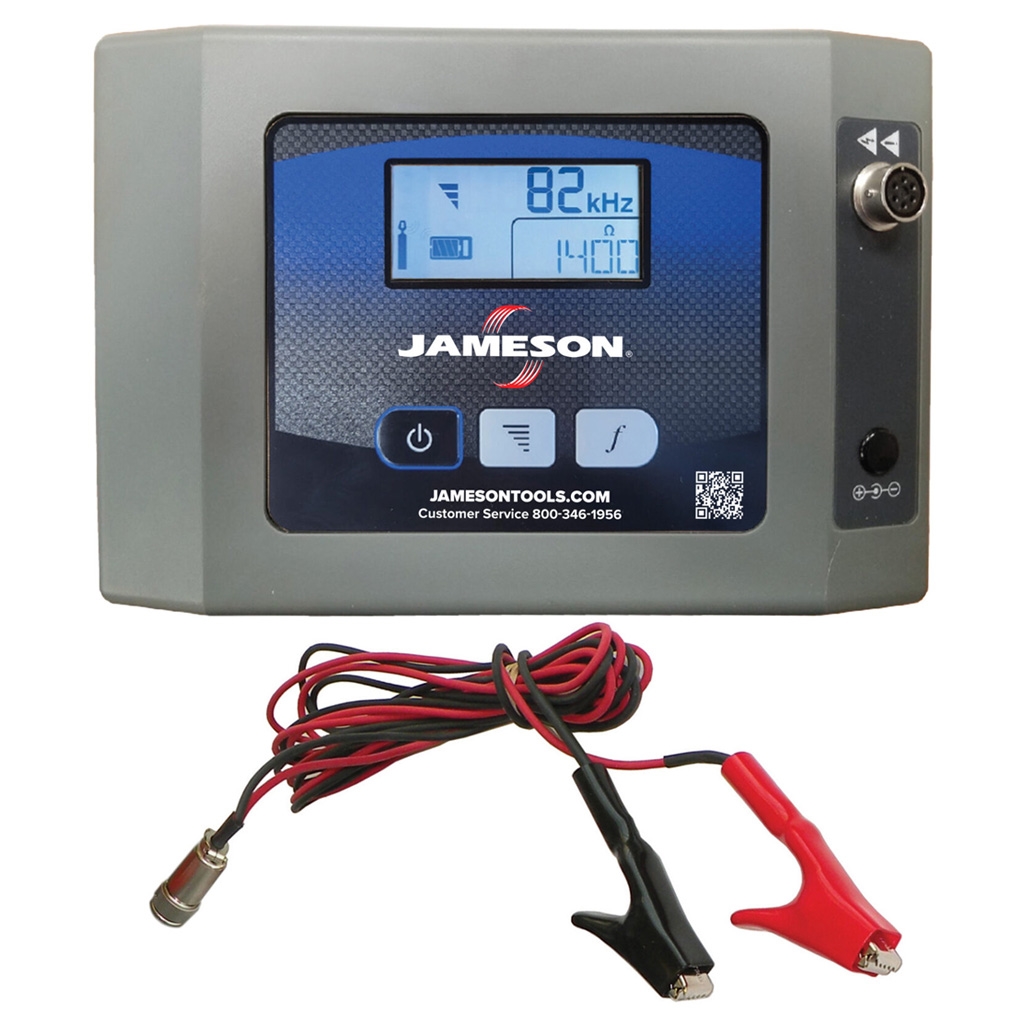

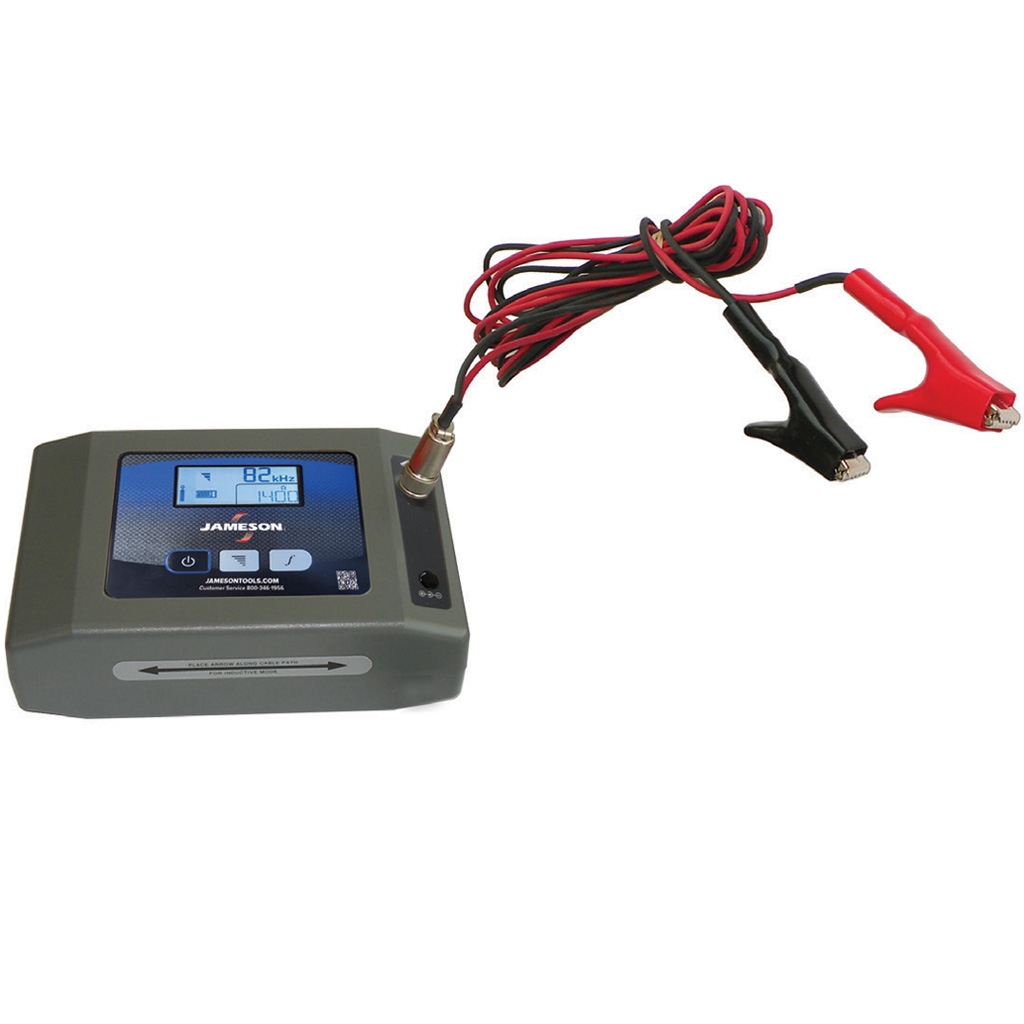

  • Transmitter
  • Conductive clips
  • Padded protective carrying case

  • Specifications:
  • Transmitter Operating Frequency: 200Hz - 480kHz
  • Transmitter Operating Temperature: -4°F to 133°F (-20°C to +55°C)
  • Transmitter Hook-up Method: Direct connection; inductive coupling (with optional coupler)
  • Transmitter Induction Load Matching: Automatic from 5 Ω to 20,000 Ω
  • Transmitter Output Power: 3 Watts (High), 250 Milliwatts (Low)
  • Transmitter Batteries: 8 "C" Duracell alkaline batteries
  • Transmitter Battery Life: Greater than 30 hours (depending on load, frequency and power setting)
  • Transmitter Dimensions: 8.4" x 5.57" x 2.6"
  • Transmitter Weight: 2.2 lbs (2.8kg)
  • Receiver Operating Frequency: 200Hz - 480kHz; 50Hz, 60Hz; RF
  • Receiver Antenna Mode: Null (vertical coil), Peak (horizontal coil)
  • Receiver Audio Indication: Variable pitch audio
  • Receiver Operating Temperature: -4°F to 133°F (-20°C to +55°C)
  • Receiver Batteries: 6 "C" Duracell alkaline batteries
  • Receiver Battery Life: Continuous 40 hours, intermittent 82 hours (10 minute auto shut off)
  • Receiver Dimensions: 30.3" x 3.75" x 9.4"
  • Receiver Weight: 3 lb

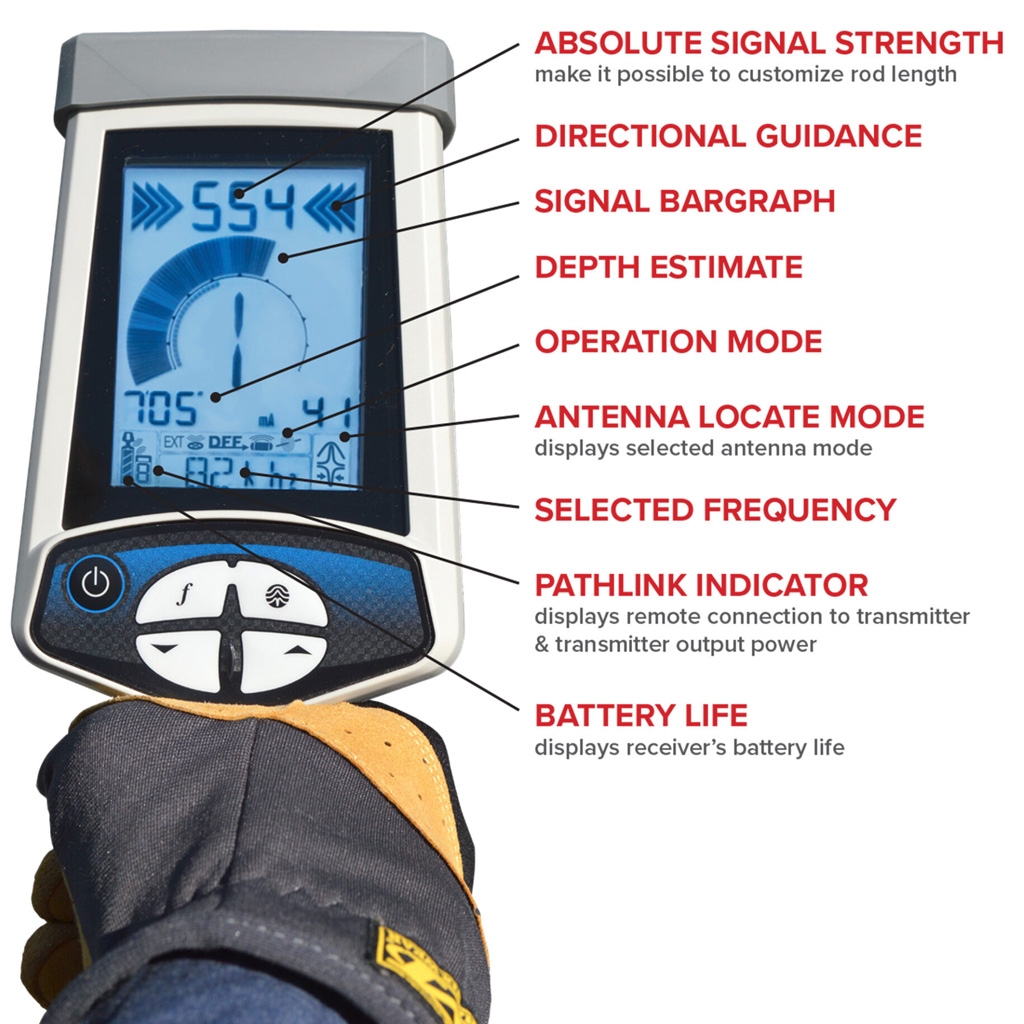

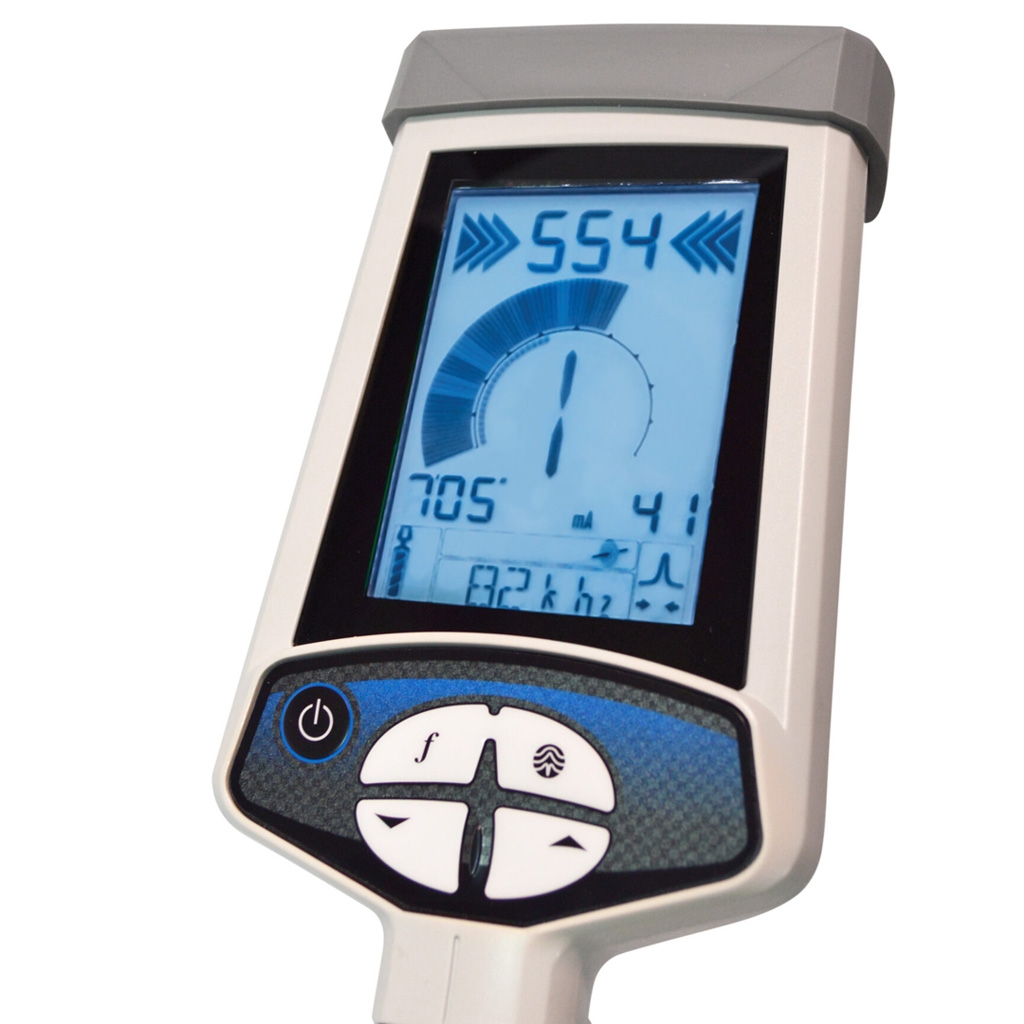

  • Signal Strength: LCD bar graph, absolute signal strength readout 0-999
  • Gain Control: Up/down button for automatic centering and manual control
  • Dynamic Range: 126 dB
  • Depth Measurement: Automatic digital depth readout to 25 feet (feet/inches & metric); manual triangulation for verification in congested environments
  • Model: 17-300RTK


  • Related Products:
    Part #Jameson #Description
    JAM-16-14-300M16-14-300MDuct Hunter™ traceable rodder, 1/4" x 300 ft - locatable with this kit
    JAM-16-14-500M16-14-500MDuct Hunter™ traceable rodder, 1/4" x 500 ft - locatable with this kit
    Manual 17-300RTK
