Jonard Basic Fiber Prep Kit

Jonard Basic Fiber Prep Kit




Alternative Views:


TTS PRICE: $346.99

STATUS: ON ORDER



Availability:
Normally Ships Same Day

PRODUCT CODE: JON-TK-120
QUANTITY:

PRODUCT DESCRIPTION

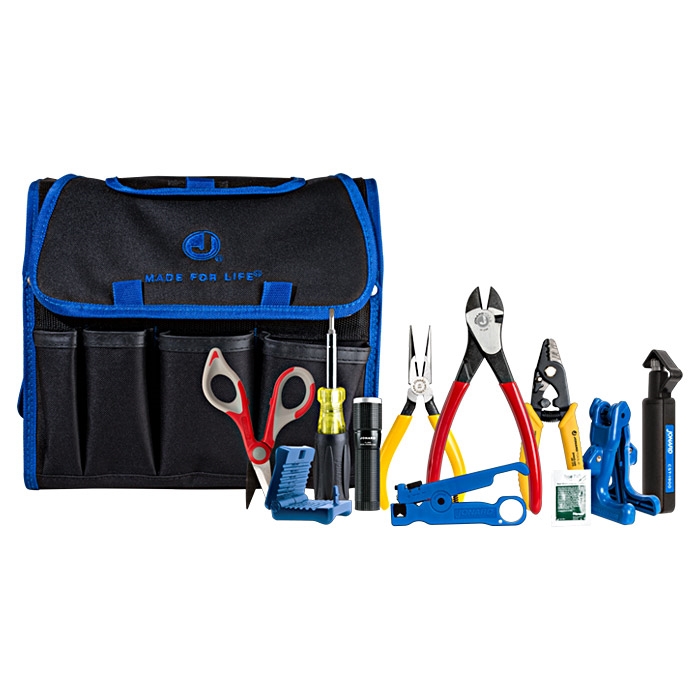

The TK-120 from Jonard is a fiber preparation kit that provides you with all the tools needed to access and prepare a fiber optic cable for termination.

The kit includes: CST-1900, CSR-1575, FOD-2000 and MS-6 for opening various types of fiber optic cables, the JIC-375 fiber stripper and JIC-186 Kevlar cutter for prepping the fiber for termination. Other tools included with the kit are the SD-61 multi bit screwdriver FL-2000 flashlight, JIC-2288 diagonal cutter, JIC-842 long nose plier and FW-5 fiber wipes.

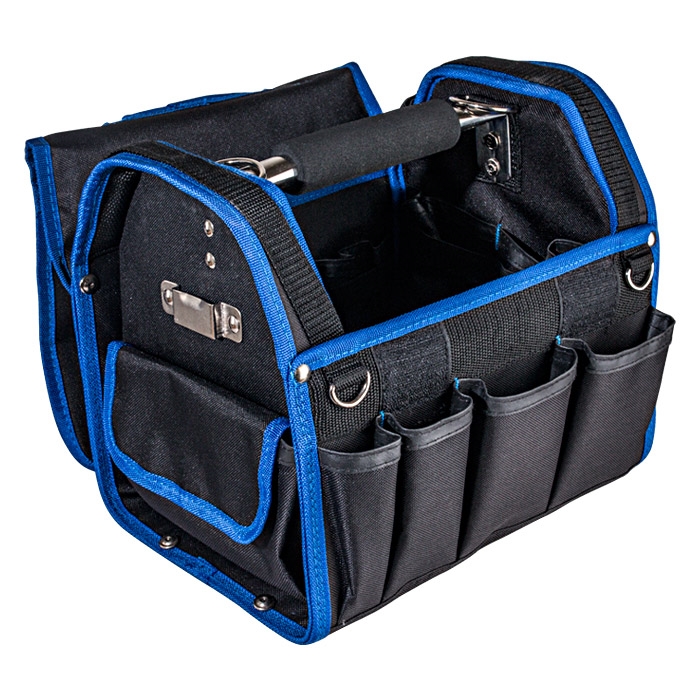

All these tools are provided in a rugged tool case (H-90) with extra pockets for extra tools, connectors and many other items.

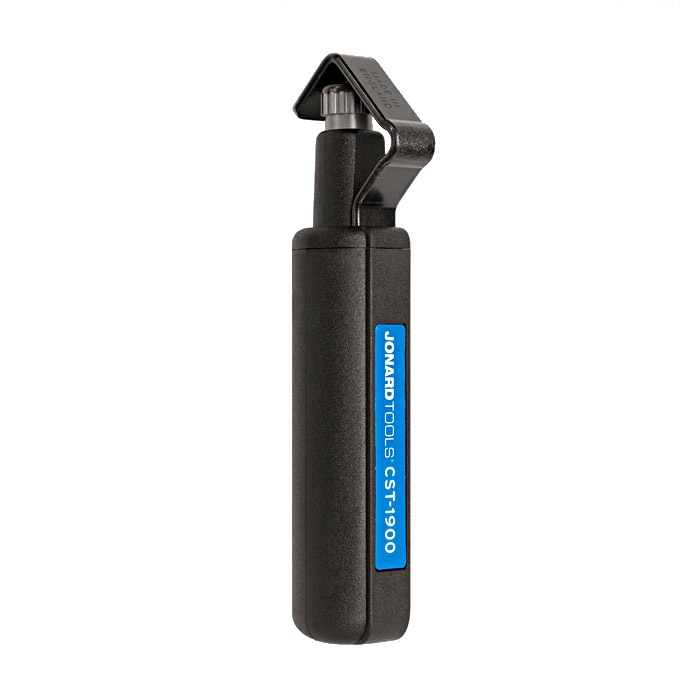

Round Cable Stripper - CST-1900 Features:
  • Precise jacket removal of PVC, rubber, PE and other jacket materials
  • Triple Action tool: cuts longitudinally for end stripping, spiral for end stripping and mid-span cuts, and circular for jacket removal
  • Versatile and easy to use
  • Cable Diameter: 4.5-29.0 mm

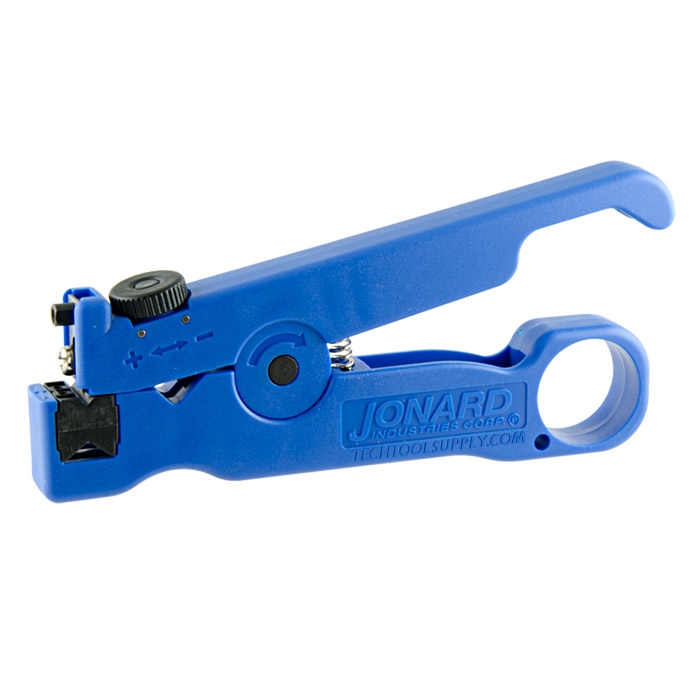

  • Cable Slit and Ring - CSR-1575 Features:
  • Slit and ring cables, buffer tubes and jackets on fiber optic cables up to 7.5mm (0.3") in diameter
  • Easily adjustable slit blade and ring blade
  • Removable and reversible V block that improves slitting performance and accommodates smaller to larger diameter cables

  • Fiber Optic Drop Cable Slitter - FOD-2000 Features:
  • Comes completely assembled with two blades
  • Simplifies the slitting of drop cable jackets at the end of the cable or mid-span
  • Slits on both sides of the jacket allowing easy access to the fiber or strength member

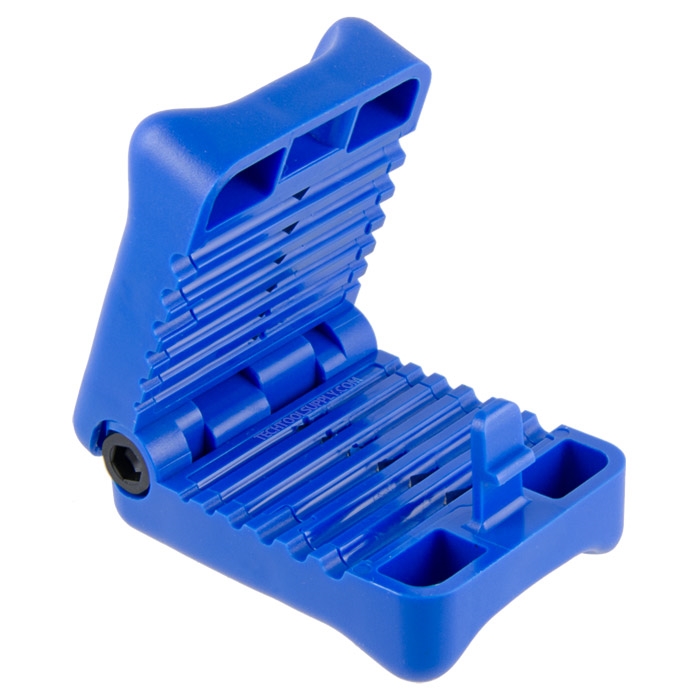

  • Mid-Span Slitter - MS-6 Features:
  • Provides easy access to optical fibers in loose buffer tubes 1.2mm - 3.3 mm diameter
  • 6 precision grooves buffer tube slitting is done without damage to the fiber

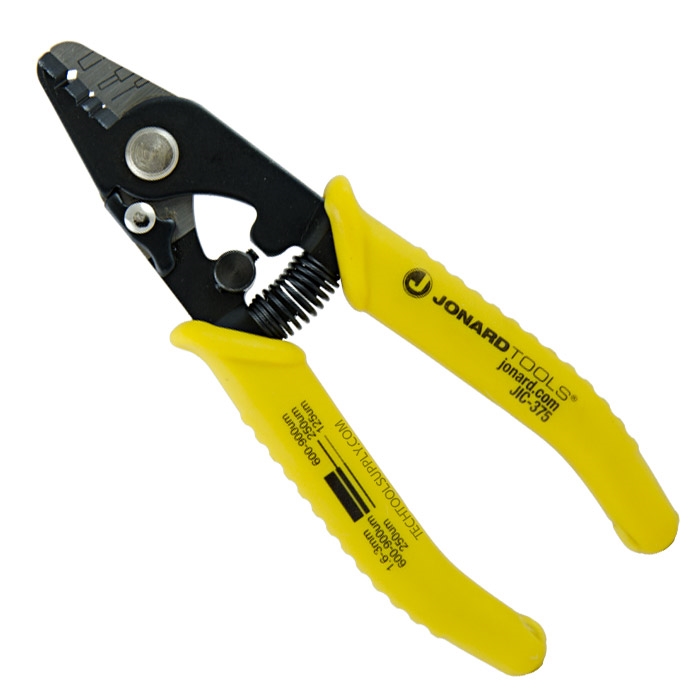

  • 3 Hole Fiber Optic Stripper - JIC-375 Features:
  • First hole of this Fiber Optic Stripper strips the 1.6-3 mm fiber jacket down to the 600-900 micron buffer coating
  • Second hole strips the 600-900 micron buffer coating down to the 250 micron coating
  • Third hole is used to strip the 250 micron cable down to the 125 micron glass fiber without nicks or scratches

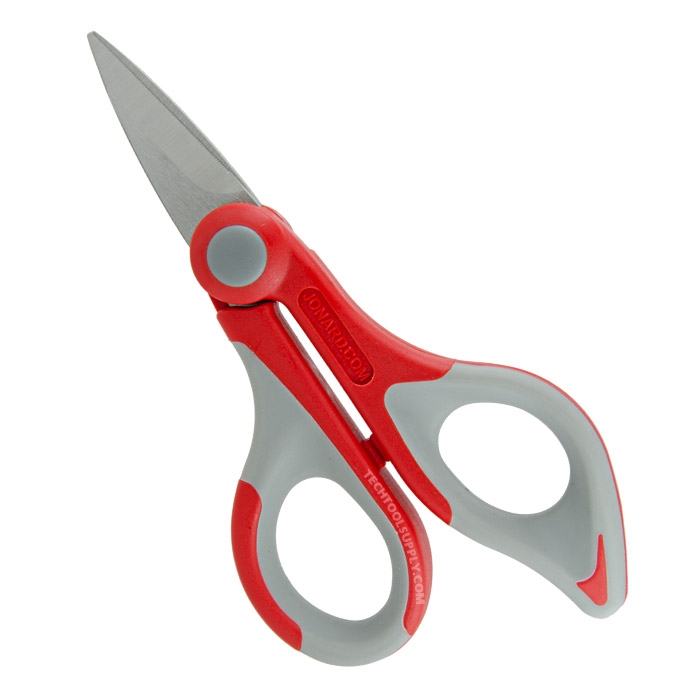

  • Fiber Optic Kevlar Cutter - JIC-186 Features:
  • High carbon stainless steel blades designed to cut Kevlar, cabling insulation, tape, cable ties and other material
  • Ergonomic handles for user comfort and durability
  • Adjustable joint screw under protective cap
  • Serrated blade grip material, sharp and durable 6" long
  • Handle material is dual component Nylon and Santoprene

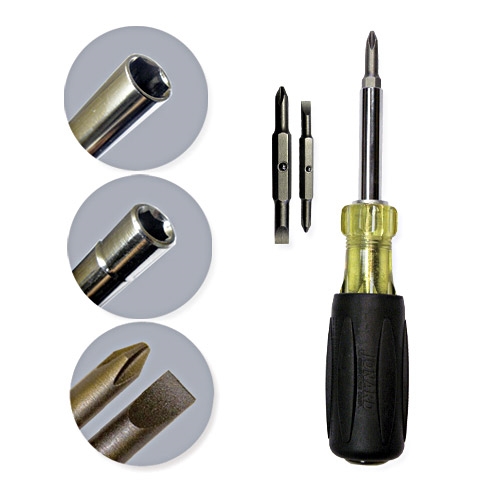

  • Screwdriver Multi-Bit 6 In 1 - SD-61 Features:
  • Driver Size: 5/16", 1/4"
  • Phillips Size: PH #1, PH #2
  • Cabinet Slotted Size: 3/16", 9/32"
  • Corrision resistant shaft, magnetized tips, size and style marked on end of handle

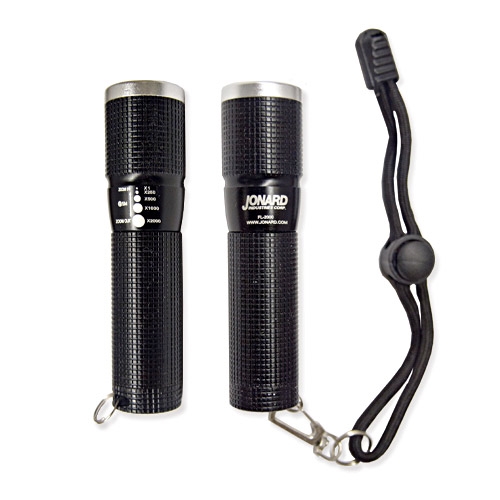

  • LED Flashlight With Zoom Lens - FL-2000 Features:
  • Osram LED Flashlight
  • Powered by a single AA alkaline battery
  • Housing is rugged aluminum suspended from a clip-on lanyard
  • Brightness is 120 lumens and the beam is adjustable to meet the working environment
  • Zoom in for a tight narrow beam and zoom out for a wide light

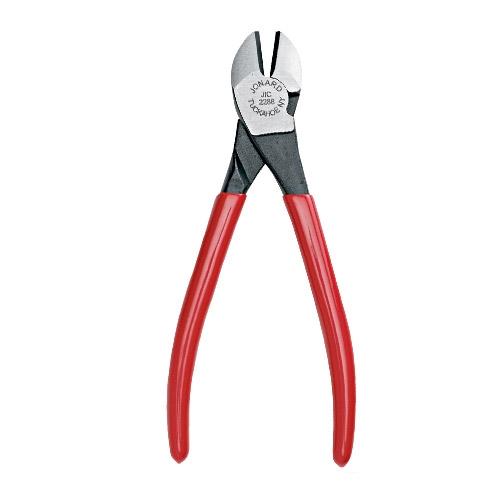

  • 8" High Leverage Diagonal Cutter - JIC-2288 Features:
  • High leverage diagonal cutter
  • 8" long
  • Red plastic handle
  • Forged alloy steel

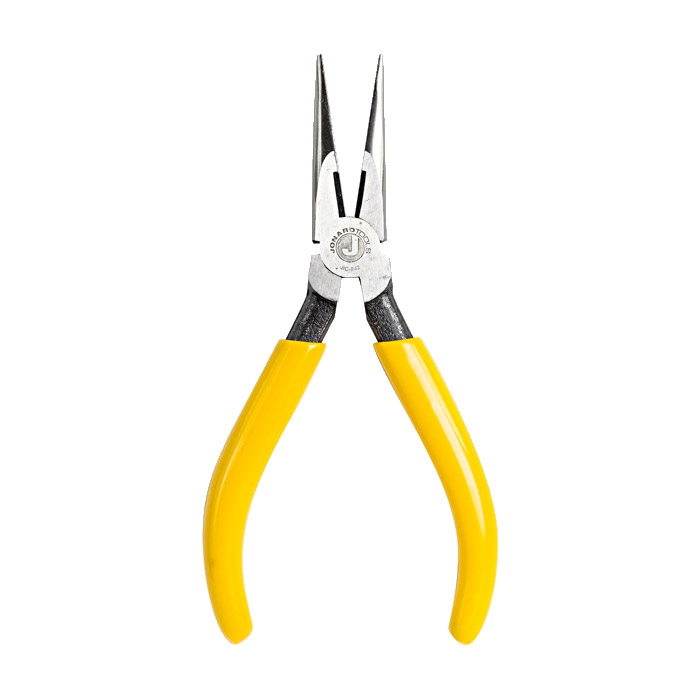

  • Telecom Long Nose D Pliers - JIC-842 Features:
  • Telecom Long Nose D Pliers
  • 6 7/8" long
  • Cushion gripped yellow plastic handles
  • Jaws are knurled, serrated, and have side cutting blades

  • Fiber Wipes - FW-5 Features:
  • Quantity: 5
  • Pure 99.8% isopropyl alcohol
  • Excellent Cleaner for optical surfaces, glass fibers, and connector end faces
  • Fast evaporating, residue-free solvent
  • Mild, non-abrasive solvent contains no water
  • Compatible with most plastics, glass and metals
  • Convenient, safe package
