Jonard TK-DC07 Data Center Fiber Inspection Kit - Inspect, Clean & Verify LC, SC & MPO Connectors
The Jonard TK-DC07 Data Center Fiber Inspection Kit gives fiber technicians everything needed to inspect, clean, and verify connector end-faces and optical power in high-density data center environments. In facilities where a single contaminated ferrule can degrade an entire link, disciplined inspect-clean-verify workflow is the difference between five-nines uptime and chasing intermittent faults - and this kit builds that workflow into one case.
Inspect connector end-faces before every mate, clean with fiber-safe wipes and cleaners, then confirm the link with the FPM-50S optical power meter - measuring across 800-1650 nm wavelengths at 0.01 dB resolution, with a built-in VFL and network cable tester for fast fault isolation. Purpose-assembled for the fiber-dense reality of hyperscale, colocation, and AI network facilities.
Features:
Complete inspect-clean-verify workflow for data center fiber connectors
End-face inspection catches contamination before it becomes an outage
Format-specific cleaners for 1.25 mm LC/MU, 2.5 mm SC/ST and MPO 12/16-core end-faces
Wet and dry cleaning supplies for ferrules and connectors
FPM-50S optical power meter: 800-1650 nm, 0.01 dB resolution, built-in VFL
Built for high-density LC, SC, and MPO environments
Organized backpack keeps the inspection workflow field-ready

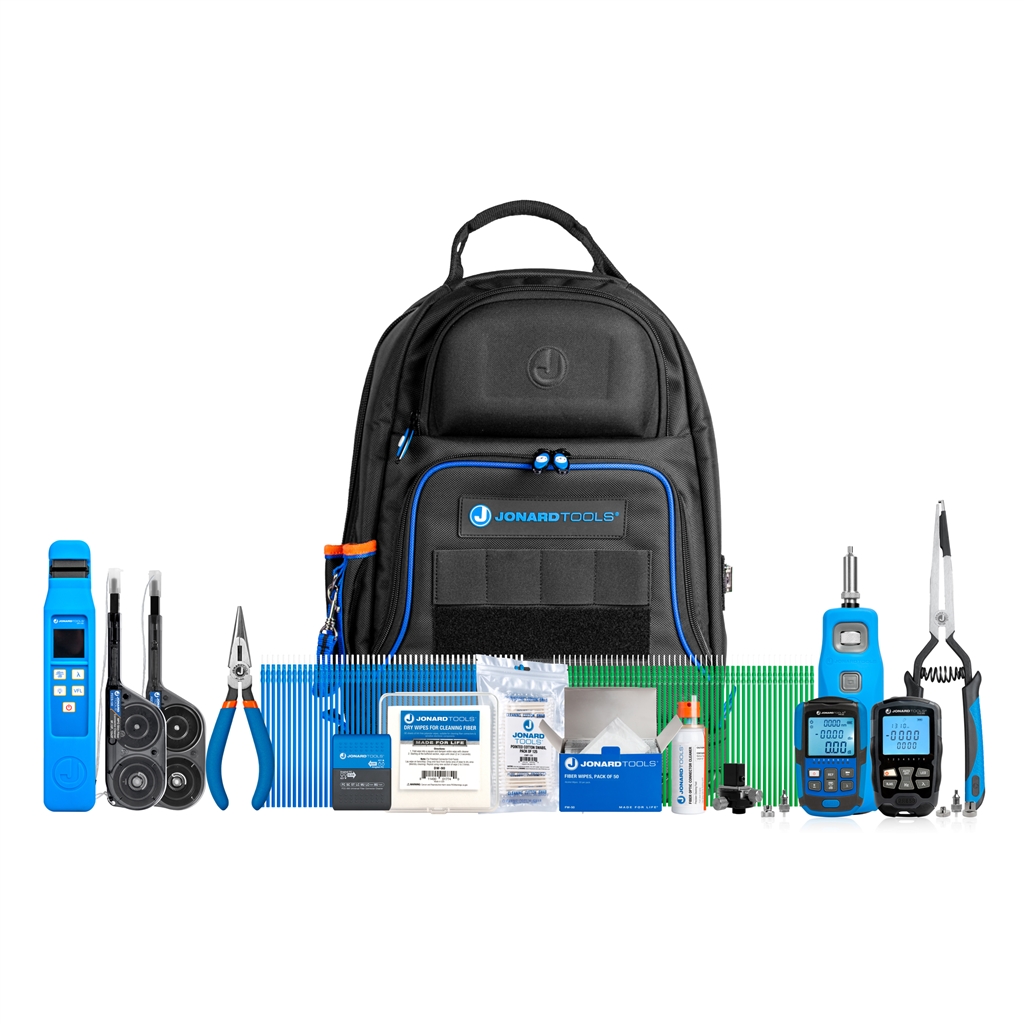

Kit Includes:
1 x WFM-100 Wireless Fiber Inspection Microscope
1 x FPM-50S Mini Optical Power Meter (-50 to +26 dBm)
1 x CLS-125/50 Cleaning Sticks for 1.25 mm Fiber Connectors
1 x CLS-250/50 Cleaning Sticks for 2.5 mm Fiber Connectors
1 x FCC-300 Universal Fiber Connector Cleaner (LC/SC Single or Duplex)
1 x FCCS-120 Slim Fiber Connector Cleaner, MPO 12 Core
1 x FCCS-160 Slim Fiber Connector Cleaner, MPO 16 Core
1 x CWP-125 Pointed Cotton Swabs
1 x DW-90 Dry Wipes for Cleaning Fiber
1 x FW-50 Fiber Wipes, Wet (Pack of 50)
1 x FCF-3 Fiber Optic Splice & Connector Cleaner
1 x JIC-842 Long Nose and Side Cutting Pliers
1 x SOL-F1 Solis Rechargeable Tactical Flashlight
1 x BP-100 Technician's Tool Bag Backpack
Plus additional Jonard fiber tools
Specifications:
Data Center Type: Traditional (Edge, Enterprise, Colocation), Hyperscale (Cloud, Large-Scale), AI Network (Campus/GPU Clusters)
Environment Type: Inside Plant (ISP) & Outside Plant to Inside Plant (OSP-to-ISP)
Solutions Focus: Cabling Infrastructure - Fiber
Lifecycle Phase: Prep & Install, Cleaning & Inspection, Testing & Commission, Repair & Maintenance
Cleaning: Wet and dry wiping; click cleaning FC, LC, SC, ST, MU, LC-Duplex, MU-Duplex, MPO/MTP 8, 12, 24 (12x2), 16, 32 (16x2) connectors & ports; cleaning sticks for 1.25 mm LC & MU and 2.5 mm FC, SC, ST
Inspection: 1.25 mm LC (PC/UPC) & 2.5 mm FC/SC/ST (PC/UPC), MPO/MTP 8, 12, 24 (12x2), 16, 32 (16x2) connectors
Fiber Testing: Insertion loss 1310/1550 nm; optical power 800-1650 nm, -50 to +26 dBm; fiber identification 270 Hz, 1 kHz, 2 kHz; visual fault location 2 mW
Cable Testing: RJ45 continuity and tracking
Stripping: 18 AWG & 22 AWG
Kit Weight: approx. 17.1 lb
Manufacturer: Jonard Industries
Model: TK-DC07
TK-DC07 - Fiber Inspection Kit - Data Sheet
|
|
|
 |
|
 |
|
