Pulling a fuse with pliers is how fuses get crushed and how knuckles find live parts — the FP-600INS exists so neither happens.
Jonard's insulated fuse puller is purpose-shaped for extracting and installing cylindrical fuses: precision knurled jaws grip the fuse body firmly and remove it without damage, in exactly the tightly restricted spaces where fingers and pliers fail — power inserters, outdoor splitters, automotive fuse panels, and notoriously cramped spots like the fuse on a Technetix line amplifier.
The insulation is the real credential: fully insulated grips, VDE approved to IEC 60900 standards up to 1000V.
That's the genuine tested-insulation standard — not a rubber dip — giving broadband and electrical techs a margin of protection when working around energized equipment. Under the insulation, the tool is heat-treated chrome vanadium steel for maximum strength and durability, the same construction as Jonard's non-insulated FP-600.
For CATV plant techs, the use case is daily: line amps and power inserters live on powered plant, and their fuses are both the first diagnostic and the most awkward part to grab.
The FP-600INS makes that a five-second, damage-free, insulated operation. One for the meter bag, one for the truck.

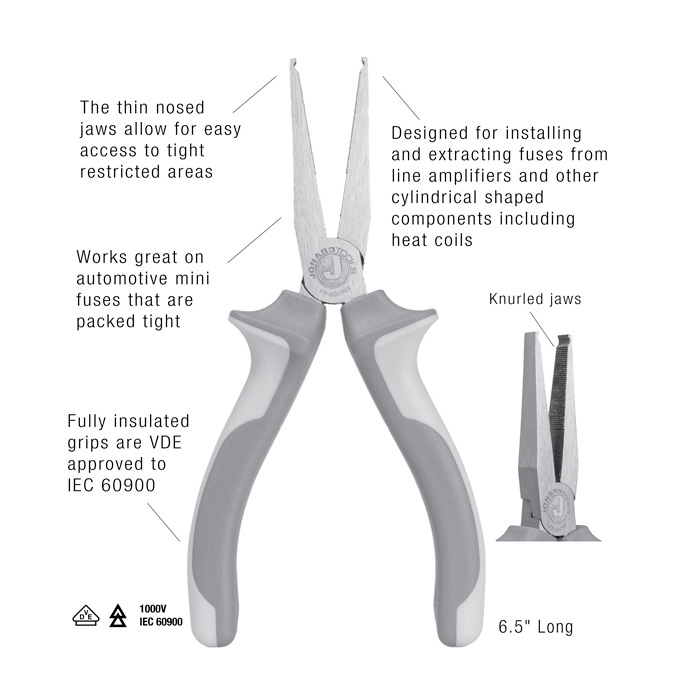

Features:
- Fully insulated grips, VDE approved to IEC 60900 standards up to 1000V

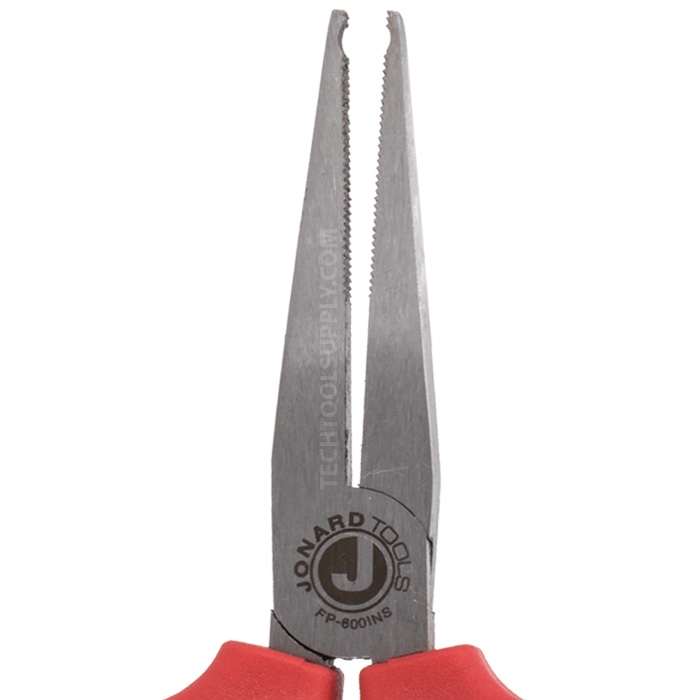

- Knurled jaws remove fuses without damaging them
- Heat-treated chrome vanadium steel for maximum strength and durability
- Reaches fuses in tightly restricted areas — e.g., Technetix line amplifiers
- For power inserters, outdoor splitters, line amps, and automotive fuses
Specifications:

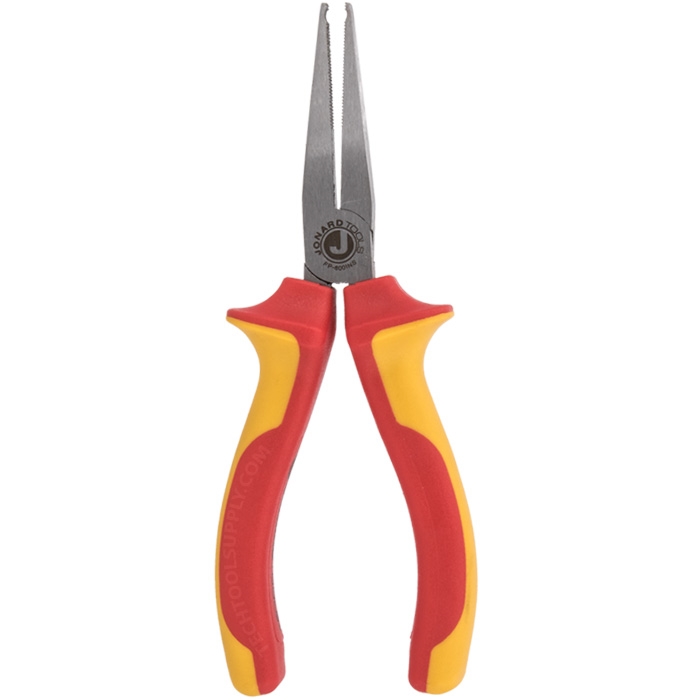

- Model: Jonard FP-600INS
- Insulation: VDE approved, IEC 60900, up to 1000V
- Material: Heat-treated chrome vanadium steel
- Jaws: Knurled, non-damaging grip
- Length: 6-3/4"
- UPC: 811490019539
