Jonard MS-316 Mid Span Slit & Ring Tool - 2.9mm

Home > Categories > Fiber Prep & Termination > Fiber Strippers >

Jonard Mid Span Slit & Ring Tool - 2.9mm - 6.8mm

TTS PRICE: $114.95

STATUS:

IN STOCK

Availability:

IN STOCK & READY TO SHIP

PRODUCT CODE: JON-MS-316

QUANTITY:

PRODUCT DESCRIPTION

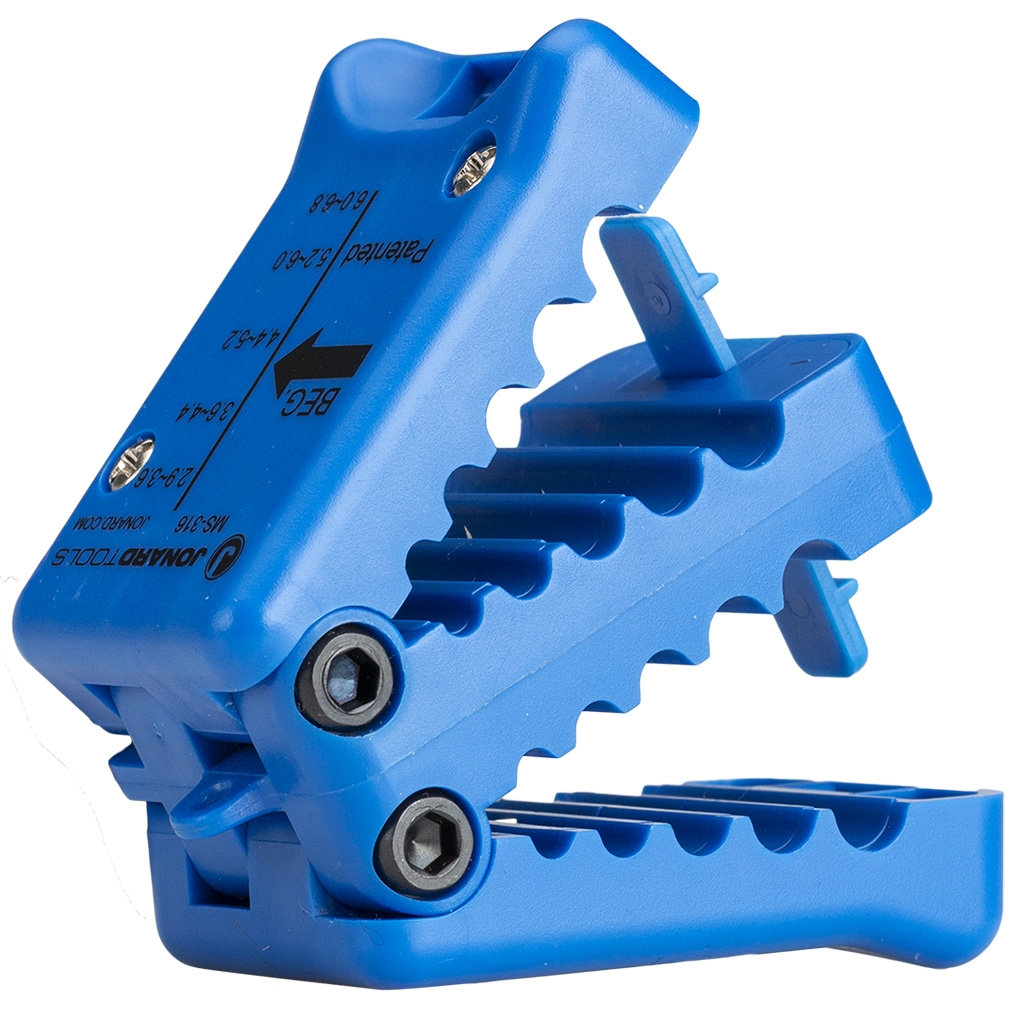

Jonard MS-316 Mid Span Slit & Ring Tool - 2.9 mm to 6.8 mm Jackets & Buffer Tubes

The MS-316 from Jonard is a Mid Span Slit and Ring Tool designed to provide easy access to optical fibers in outer jackets and buffer tubes. Building on the popularity of the Jonard Tools MS-6 and MS-26 Fiber Optic Mid Span Slitting Tools, Jonard has incorporated a ring feature in the tool to make it even more versatile.

The slit and ring MS-316 is designed to open fiber jackets and loose buffer tubes to provide easy fiber access. One side of the tool slits fiber jackets and loose buffer tubes, and the opposite side rings fiber jackets and loose buffer tubes. All done without damage to the fiber. Blades are replaceable. Note: Thin-walled cables are those designed for use in ducts and micro ducts.

Features:

5 precision slitting grooves and 5 precision ring grooves ranging in size from 2.9 mm to 6.8 mm

One side of the tool performs radial/ring cuts, and the other side slits the cable (longitudinal cut)

Compact design weighing less than 2.5 oz with tethering hole for tight spaces or on the go

Indicator line on top of the unit indicates the position of the blade for accurate slitting and ringing

Blades last for 5,000 slits/cuts

Lifetime warranty

Groove Sizes:

2.9-3.6 mm

3.6-4.4 mm

4.4-5.2 mm

5.2-6.0 mm

6.0-6.8 mm

Specifications:

Cut Type: Slit, Ring

Number of Slitting Grooves: 5

Number of Ringing Grooves: 5

Cable Type: Outer Jackets, Loose Buffer Tubes

Cable Diameter: 2.9 mm-6.8 mm

Dimensions: 2.37" x 1.52" x 1.63" (6.0 x 3.9 x 4.1 cm)

Weight: 0.16 lb (73 g)

Model: MS-316

Available Sizes:

Part #	Jonard #	Description	Cut Type	Cable Diameter
JON-MS-6	MS-6	Mid Span Slitter (1.2 mm-3.3 mm)	Slit	1.2 mm-3.3 mm
JON-MS-26	MS-26	Mid Span Slitter (2.9 mm-6.8 mm)	Slit	2.9 mm-6.8 mm
JON-MS-306	MS-306	Mid Span Slit & Ring Tool (1.2 mm-3.3 mm)	Slit, Ring	1.2 mm-3.3 mm
JON-MS-316	MS-316 (this item)	Mid Span Slit & Ring Tool (2.9 mm-6.8 mm)	Slit, Ring	2.9 mm-6.8 mm
JON-MS-326	MS-326	Mid Span Slit & Ring Tool (5 mm-10 mm)	Slit, Ring	5 mm-10 mm
JON-MS-426	MS-426	Mid Span Slit & Ring Tool (5.8 mm-12 mm)	Slit, Ring	5.8 mm-12 mm
JON-MS-526	MS-526	Mid Span Slit & Ring Tool (9.8 mm-18.2 mm)	Slit, Ring	9.8 mm-18.2 mm
JON-MS-600	MS-600	Mid Span Shaving Tool (1.0 mm-3.3 mm)	Shave	1.0 mm - 3.3 mm

Replacement Parts:

Part #	Jonard #	Description
JON-MS-316RB	MS-316RB	Replacement blade set for MS-316

Data Sheet - Mid Span Slit & Ring Tools
