Jonard Multi-Function OTDR - 1310/1550nm

Jonard Multi-Function OTDR - 1310/1550nm


Alternative Views:
TTS PRICE: $3,932.50

STATUS: ON ORDER

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: JON-OTDR-1500
QUANTITY:

PRODUCT DESCRIPTION

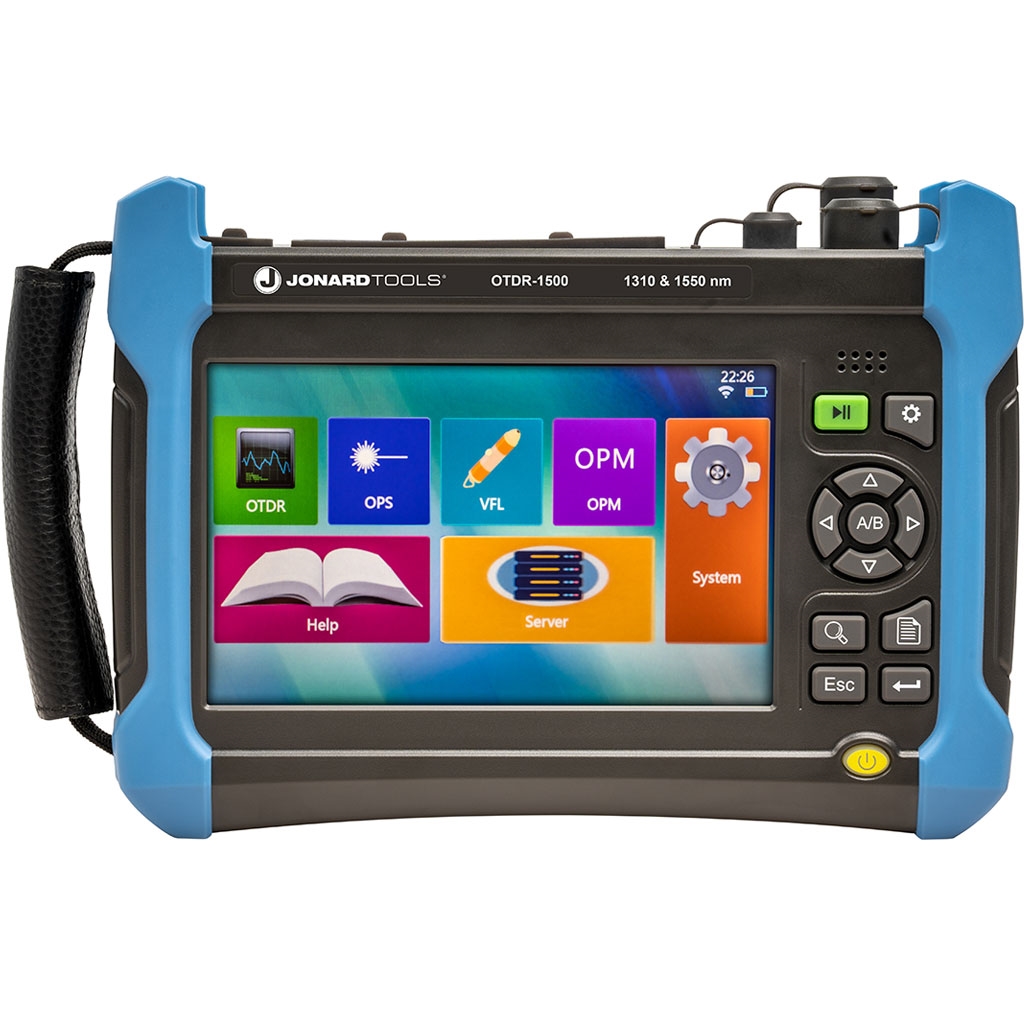

Jonard Tools’ OTDR-1500 Professional Multi-Function OTDR is the perfect all-in-one handheld device for evaluating FTTx and access network construction and maintenance, identifying fiber breakpoints, measuring cable length, and calculating relative optical power losses.

Features:
  • Includes 5 different functions for testing: 1310/1550 nm OTDR module, 1310/1550 nm Light Source module, Power Meter module, Visual Fault Locator module, and Help module

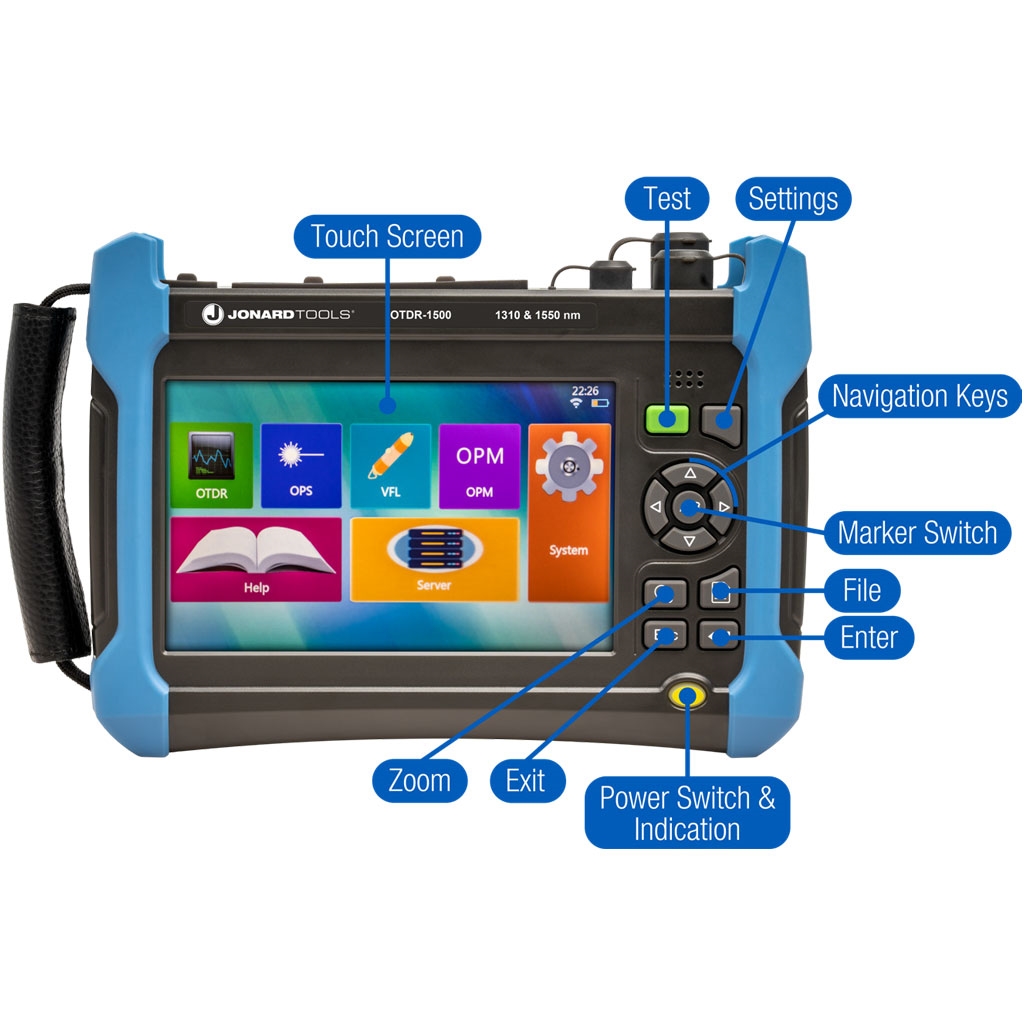

  • Large, bright 7” color LCD touch screen makes it quick and easy to evaluate data
  • More accurate testing with a 32/30 Dynamic Range
  • Features Dual Wavelength Testing (see both 1310 & 1550 wavelengths simultaneously)
  • Dual Wavelength Testing
  • Built-in Event Map shows faults with graphical images for simplified troubleshooting
  • Handy stylus to keep LCD screen fingerprint free
  • Rubberized hard plastic case is shock-proof and drop-proof for maximum durability
  • 200 MB Internal storage stores up to 4,800 entries, with MicroSD/TF card slot for additional memory
  • Built-in rechargeable lithium-ion battery provides power on-the-go
  • On-board Wi-Fi connectivity for data transfers or live viewing of data (for Android devices)

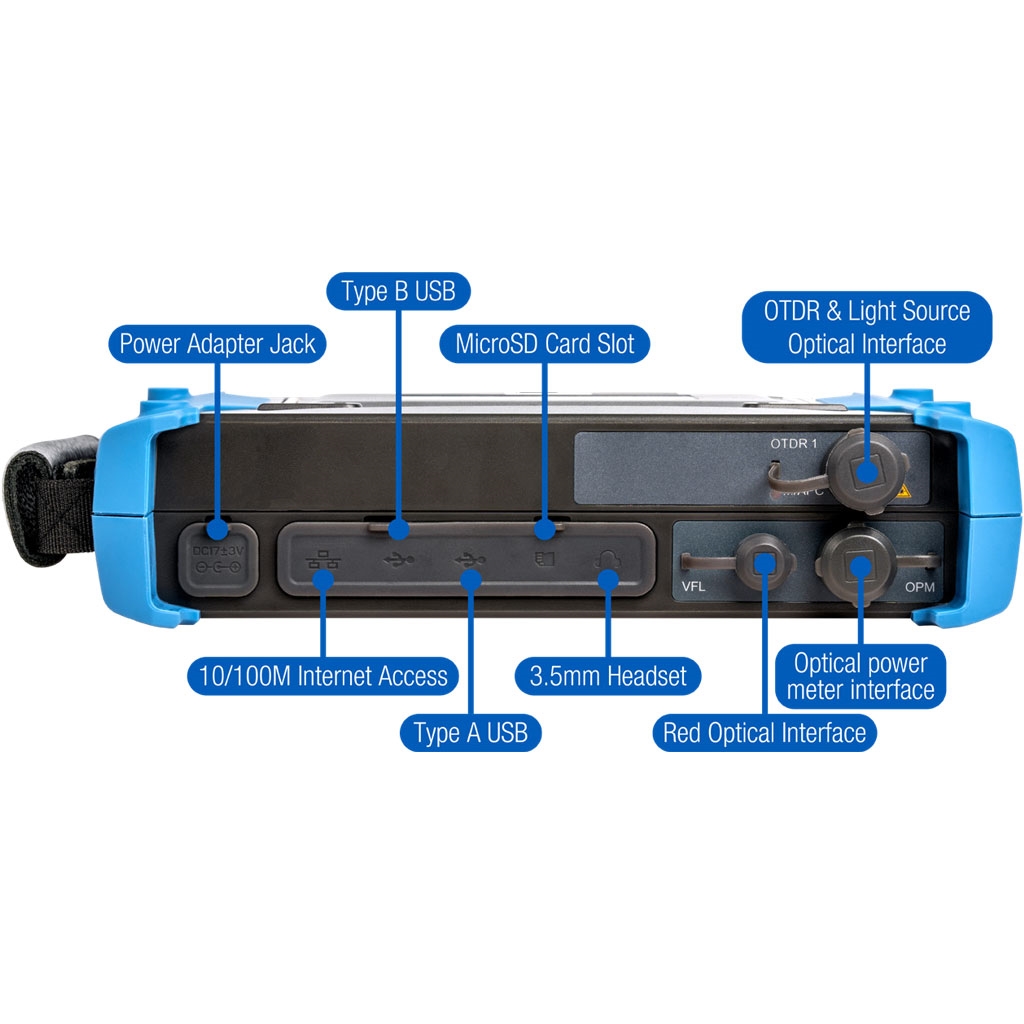

  • Can be charged or connected to a computer for data transfer via included micro-USB cable
  • Includes FC/APC & SC/APC OTDR adapters, LC/UPC adapter for OPM, downloadable software (also featured in the download section of this product page), power adapter, calibration certificate and instruction manual
  • Convenient unit kickstand
  • Protective carrying case with adjustable strap

    • Specifications:
  • Wavelengths: 1310±20nm, 1550±20nm
  • Fiber Type: G.652 SingleMode Fiber
  • Dynamic Range: 32 dB/30 dB
  • Event Blind Zone: 0.5 m
  • ATT Blind Zone: 0.5 m
  • Test Range: 500m-80km
  • Pulse Width: 3ns-10us
  • Range Accuracy: ±（0.75 m + Sampling Interval + 0.0025％× Test Distance）
  • Loss Accuracy: ± 0.02 dB/km
  • # of Sampling Points: 256k
  • Sampling Resolution: 0.5m-32 m
  • Reflection Accuracy: ± 2 dB
  • Data Storage: Internal: 200 MB; External: MicroSD Card
  • Laser Safety Level: Class II level
  • File Format:L SOR Standard File Format
  • Included Connectors for OTDR: FC, SC (APC)
  • Dimensions: 13 in x 4.5 in x 9.5 in (33.02 cm x 11.43 cm x 24.13 cm)
  • Weight: 6.31 lb (2866.556 g)

    • OTDR-1500 Instruction Manual
