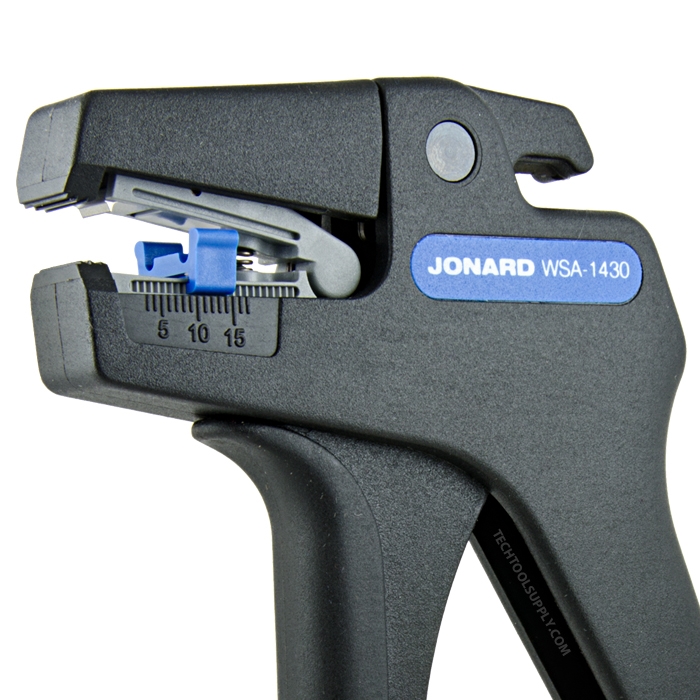

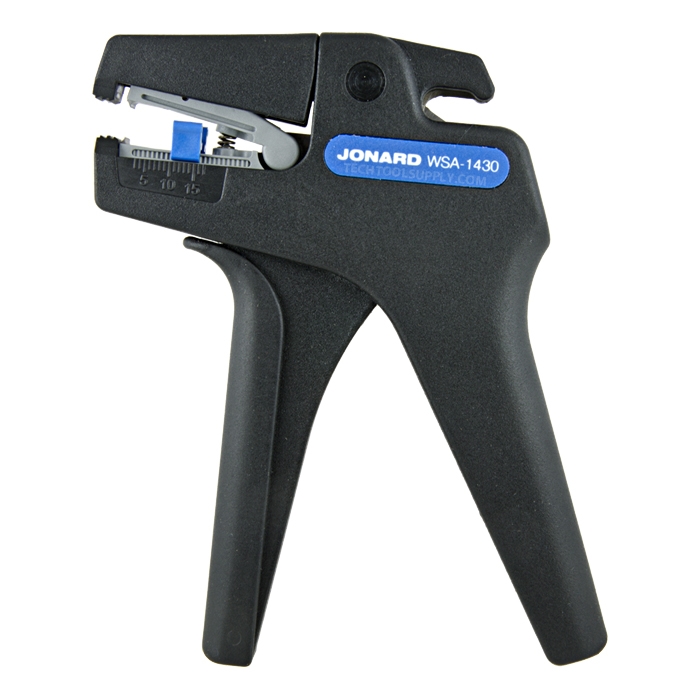

Jonard WSA-1430 Self-Adjusting Wire Stripper Pro - 14-30 AWG, Cut & Strip
Jonard Tools' WSA-1430 is the perfect solution for stripping PVC and other insulated wire sizes from 14 AWG to 30 AWG (2.5mm² to 0.05mm²). This innovative squeeze and strip design uses precision laminated carbon steel stripping blades that automatically grasp the insulation to provide quick and accurate wire stripping on thick or thin wall insulation. Can be used to strip one wire or several wires of the same gauge at the same time. The stripping mechanism is smooth, efficient and ergonomic. The built in adjustable wire stop allows you to set the stripping length from 1.8 mm up to 15 mm, and a built-in wire cutter makes cutting and stripping even faster. Tool life expectancy over 150,000 cycles. Rugged and made from high strength plastic and the stripping blades are made from high quality laminated carbon steel. Blade life expectancy over 30,000 strips.
Features:
Self-adjusting stripping mechanism - no adjustments for wire size
Strips single and multi-stranded wire; strips multiple wires of the same gauge at once
Strip length adjustable from 0.07" to 0.591" (1.8 mm to 15 mm)
Wire cutter cuts wire up to 14 AWG
Ergonomic design minimizes hand fatigue
Laminated carbon steel blades last over 30,000 strips; tool life over 150,000 uses
Specifications:
Cut Type: Cut & Strip
Wire Gauge: 14-30 AWG (1.63 mm-0.25 mm)
Cable Type: Stranded & solid conductors
Strip Length: 0.07"-0.591" (1.8 mm-15 mm)
Blade Material: Laminated carbon steel
Handle Length: 3.29" (83.5 mm)
Length: 5.75" (146 mm)
Weight: 0.35 lb (159 g)
Model: WSA-1430
Available Sizes:
| Part # | Jonard # | Wire Gauge |
|---|
| JON-WSA-1024 | WSA-1024 | 10-24 AWG (2.6 mm-0.51 mm) |
| JON-WSA-1430 | WSA-1430 (this item) | 14-30 AWG (1.63 mm-0.25 mm) |
