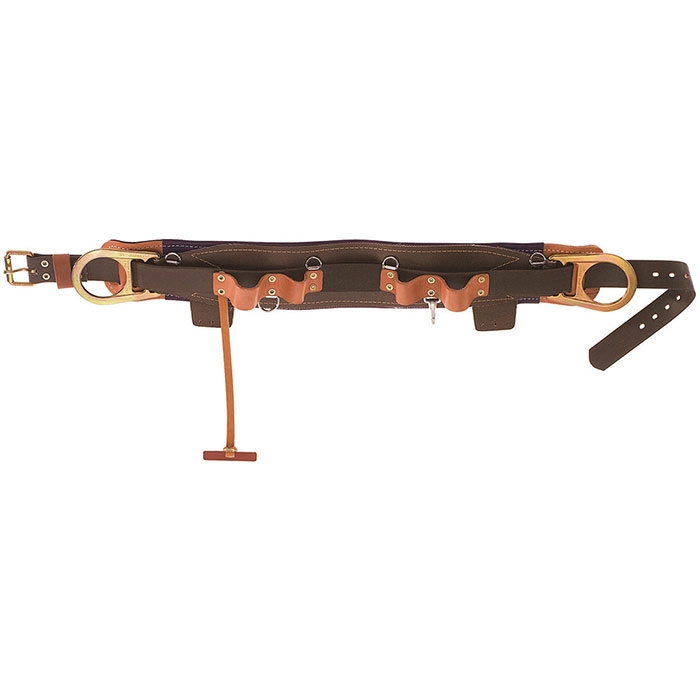

Klein Lineman's Fixed Body Belt - 22D

Klein Lineman's Fixed Body Belt - 22D

Alternative Views:

TTS PRICE: $177.99


Normally Ships Same Day



Klein Tool's Lineman's Fixed Body Belts combine the features of an OPE (occupational protective equipment) positioning belt with a specialized tool belt. They meet or exceed all OSHA regulations, which apply to positioning device systems, for power utilities (OSHA 1926.959) and telecommunications (OSHA 1910.268 and 1910.269). They also meet or exceed standards ASTM F 887, CSA Z259.1 and CSA Z259.11. Each belt is affixed with a permanent tag, which identifies model number, serial number, size, and date of manufacture.

  • The load-bearing material in Klein positioning straps is Klein's exclusive Klein-Kord, an exceptionally strong, multi-ply filament nylon fabric that is neoprene-impregnated, folded, and vulcanized. Klein-Kord is abrasion-resistant, non-conductive, virtually free from stretch, and flexible for ease of use and durability. It has excellent chemical resistance, and is virtually unaffected by creosote and other pole-treatment chemicals. In addition, its properties and wear characteristics remain essentially unchanged at temperatures up to 250°F (121°C). Klein's six-ply Klein-Kord is 1-3/4" (44 mm) wide. The center plies of Klein-Kord are red at the core. When the red plies appear, remove the strap from use immediately and replace it. This “early warning” feature is yet another safety measure provided by Klein Tools.

  • Drop-Forged Steel:
  • Klein D-rings and tongue buckles are made of drop-forged steel with a corrosion-resistant finish. All Klein hardware is tested to meet or exceed applicable OSHA standards.

  • Nylon Webbing:
  • Klein uses a high-quality, commercial-grade nylon. The nylon webbing is impregnated with latex or resin for extra durability and abrasion resistance.

  • Leather:
  • Rolled-edge, chrome-tanned leather is used for cushioning in all Klein lineman’s belts. These cushions have sponge-rubber cores for added comfort. Other components, such as tool loops, are made of harness leather. Body pads are made of latigo leather, hand laced and stitched to the belt cushion.

  • Buckles and Billets:
  • Klein lineman’s belts have drop-forged, single-tongue buckles. Belt straps and billets are made of Klein-Kord. On top-of-the-line belts, straps are covered with harness leather.

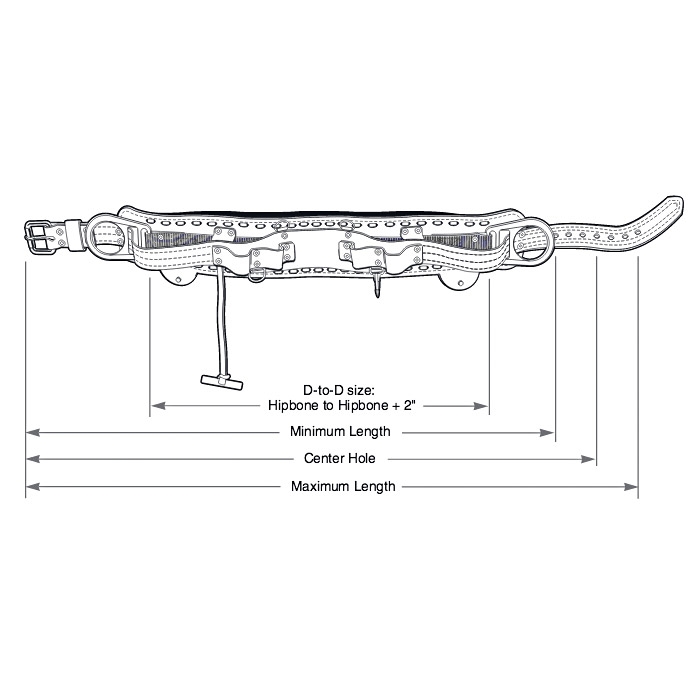

  • NOTE: Never order Klein lineman’s body belts by waist size. Always order Klein lineman’s body belts by the desired distance between D-rings.

  • Special Features: Straight Double Bar D Rings; Klein-Kord® Material For Resistance to Heat, Chemicals, and Welding Splatter; Does Not Allow Lateral Movement of the Belt Strap or D-Rings
  • Waist Size: 45'' (114.3 cm) to 37'' (939.8 mm)
  • Material: Leather, Nylon, Klein-Kord
  • Color: Brown
  • Closure Type: Single Square Frame and Prong
  • Standard: OSHA; ASTM;CSA
  • Overall Width: 4.75-Inch (121 mm)
