Klein Tools Digital Angle Gauge Square

Klein Tools Digital Angle Gauge Square

Alternative Views:

TTS PRICE: $29.97


Normally Ships Same Day

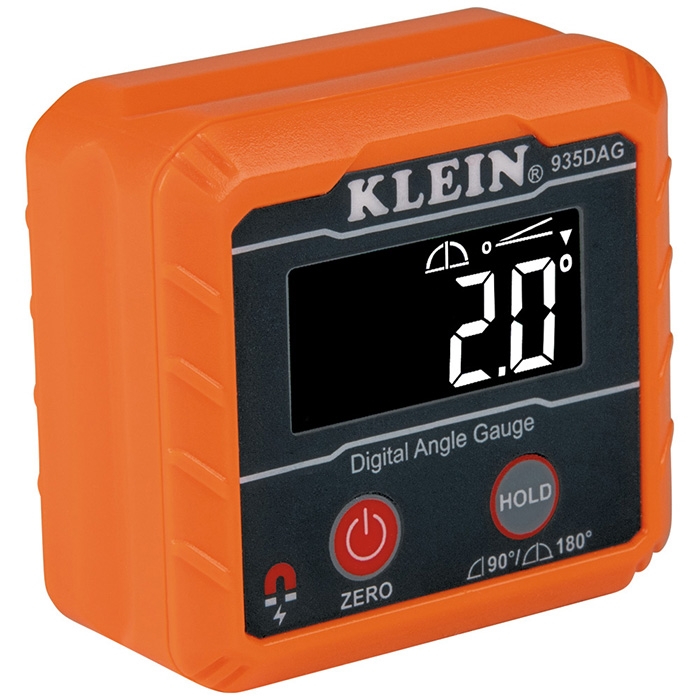

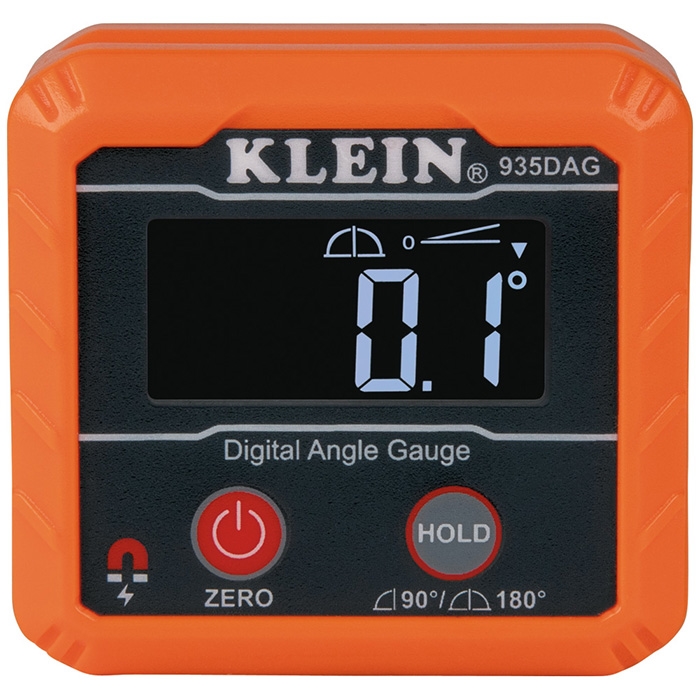

The Klein Tools 935DAG Digital Angle Gauge and Level can measure or set angles, check relative angles, or can be used as a digital level. The strong magnetic base attaches to ferromagnetic surfaces such as conduit. Along with dual measurement ranges of 0 to 90-Degree and 0 to 180-Degree, this tool has a high visibility reverse contrast display for easy viewing.

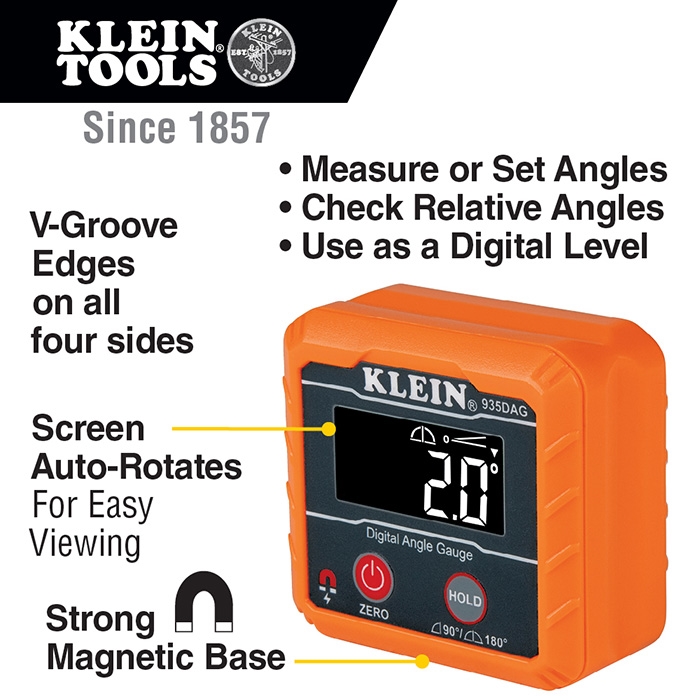

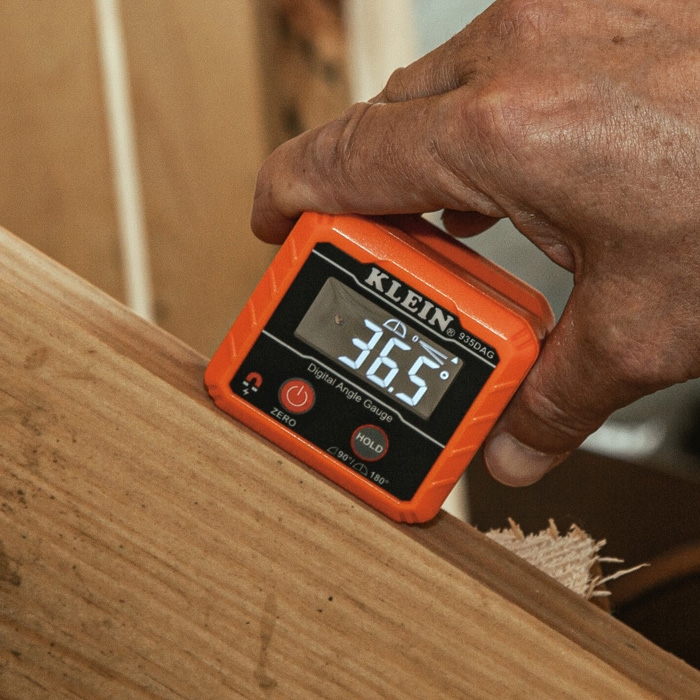

  • This Digital Angle Gauge and Level can measure or set angles, check relative angles, or can be used as a digital level
  • High visibility reverse contrast display improves visibility in dimly lit work environments

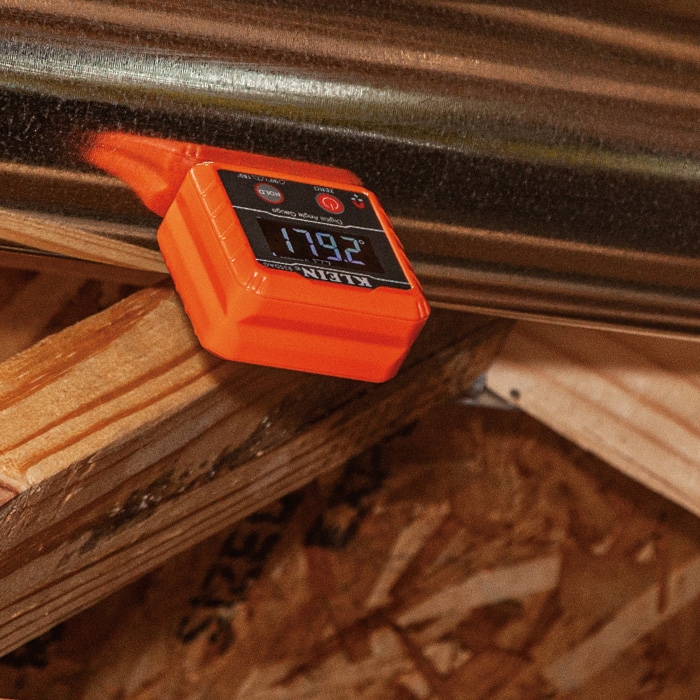

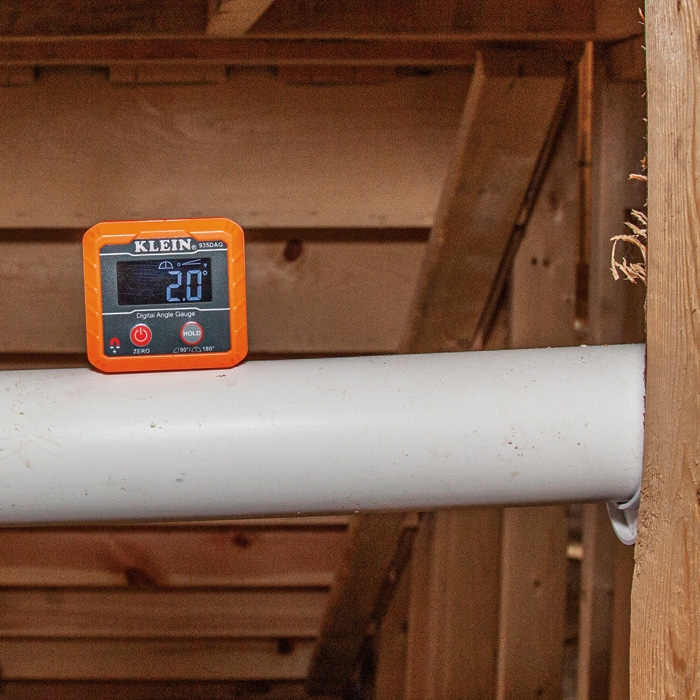

  • Strong magnetic base to attaches to conduit, pipes, saw blades, vents, ducts, and other ferromagnetic surfaces

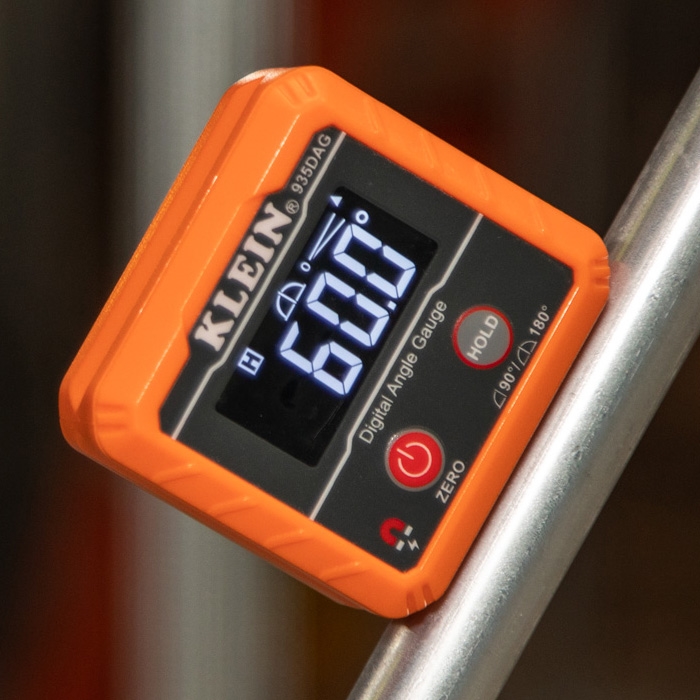

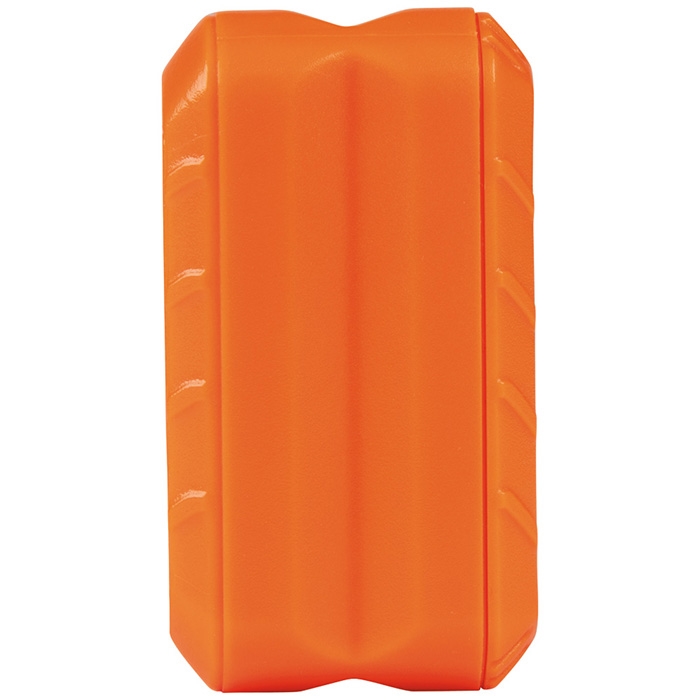

  • V-groove edges enable optimal alignment on conduits and pipes for bending and alignment
  • 0 to 90-Degree and 0 to 180-Degree measurement ranges facilitate multiple and diverse applications
  • 0 to 180-Degree range is useful when accounting for kickback in pipe bending applications when bending to 90-Degree or more

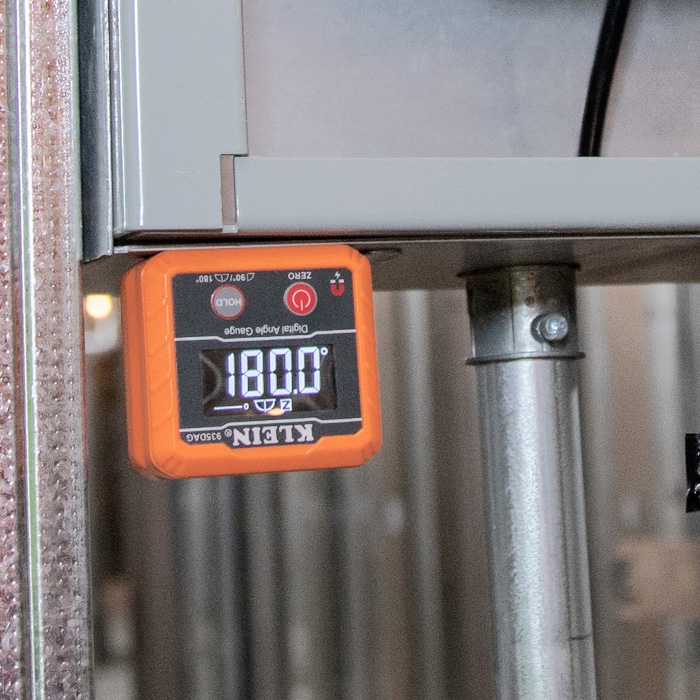

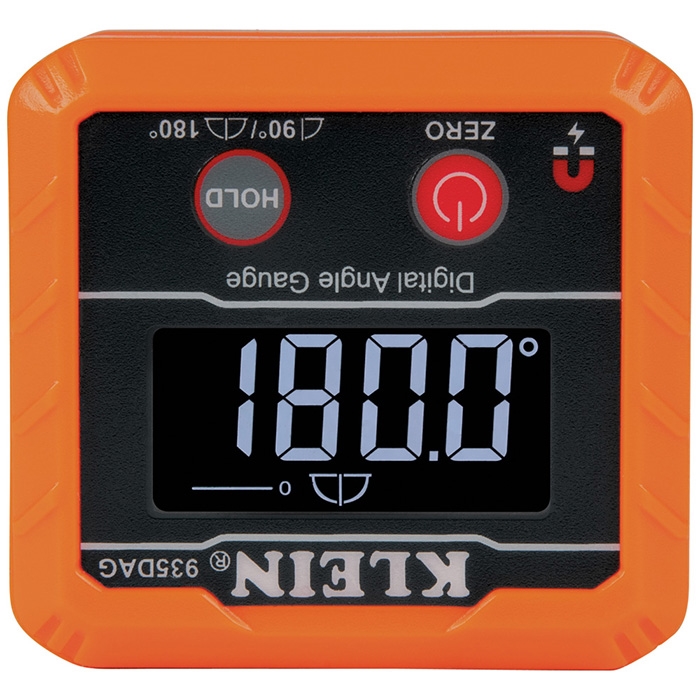

  • Display auto-rotates when upside-down for easy viewing
  • Water and dust resistant with rating of IP42
  • Soft carrying case and two AAA batteries included

  • Specifications:
  • Type: Digital Level
  • Application: Measure or Set Angles, Check Relative Angles, or Use as a Digital Level
  • Special Features: V-grooves Around Entire Perimeter, Dual Measurement Ranges at 0 to 90 and 0 to 180, Reverse Contrast
  • Material: ABS Plastic Housing and Electronic Components
  • Magnet Type: Permanent Rare Earth
  • Accuracy: 0.1 from 0 to 1, 89 to 91, 179 to 180; 0.2 at All Other Angles
  • Drop Protection: 6.6' (2 m)

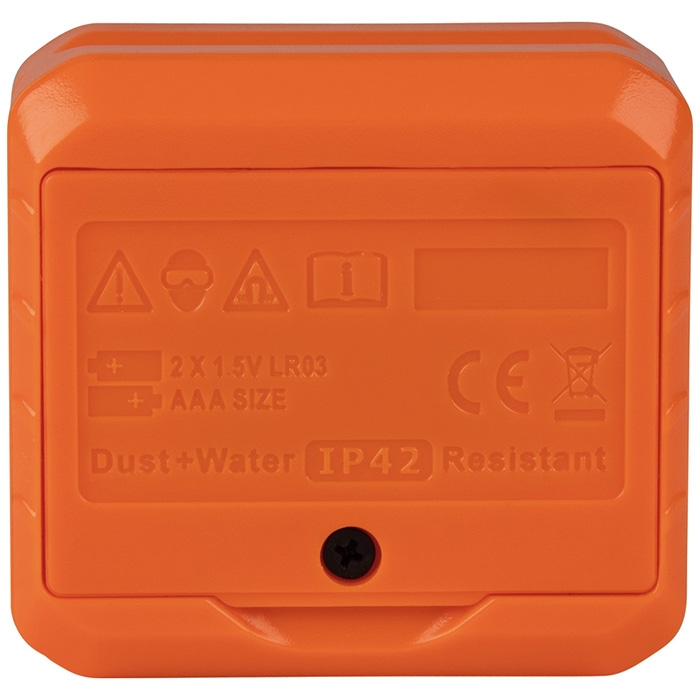

  • Ingress Protection: IP42: Water and Dust Resistant
  • Low Battery Alarm: Yes
  • Batteries: 2 x 1.5 AAA
  • Included: Soft Carrying Case, Instruction Manual, Batteries
  • Overall Length: 2.36'' (6 cm)
  • Overall Height: 2.2'' (5.6 cm)
  • Overall Width: 1.2'' (3 cm)
  • Weight: 3.5 oz (99.2 g)

  • Klein Tools 935DAG User Manual

    Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 1 WRITE A REVIEW

      So far, this Product Review was helpful to 0 TTS Customers.
    5 of 5 Great product. March 9, 2020
    Reviewer: Dave Back from Leavenworth, WA United States
    Better than all the other digital protractors that I have used. Klein hit it out of the park. V grove makes the device considerably more stable on small pipe.
