Lemco Strand Brake

Lemco Strand Brake




TTS PRICE: $87.99

STATUS: ON ORDER


Availability:
Normally Ships Same Day

PRODUCT CODE: LEM-E-432
QUANTITY:

PRODUCT DESCRIPTION

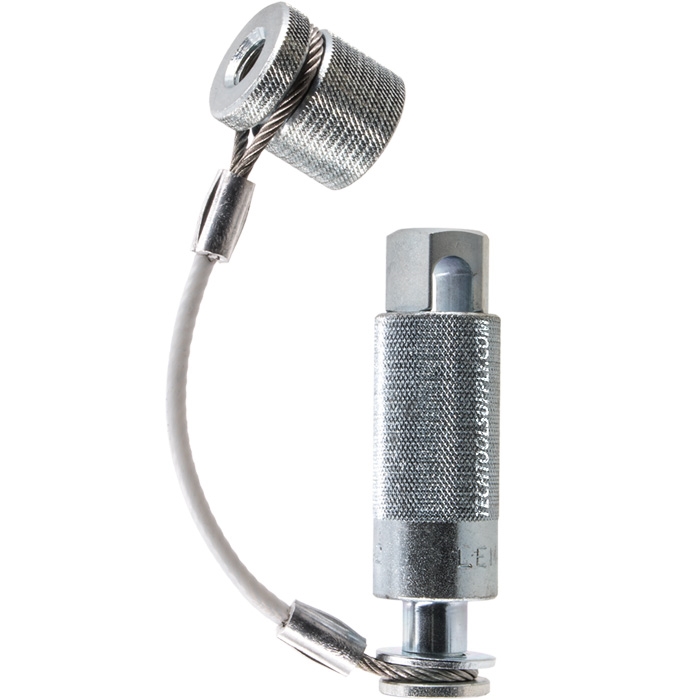

The Lemco Strand Brake E-432 offers safety and productivity to the strand crew. The three-bolt clamp does not have to be opened or closed for installation or removal. The avoidance of traffic accidents and private property damage in easements is gained productivity. The brake replaces most multiple splices, set-ups, and increases the length of runs.

The E-432 works equally well on 1⁄4”, 5⁄16” and 3⁄8” strand. During pull-out it is ‘free-running’ as the brake creates no drag and does not scrape the strand’s galvanized coating.

Instructions for Use:
  • 1) Turn the anchor nut onto the 1/2in or 5/8in bolt of the 3 bolt clamp.
  • 2) Place the brake on the strand at the trailing side of the pole and screw the locking barrel to the positive shoulder stop. The brake works on 1/4in, 5/16in, and 3/8in strand.
  • 3) The wire rope harness has a minimum breaking strength of 1760 pounds, more than enough to lift directly a 5000ft spool of 1/4in strand. The weight of 1/4in strand over a 600ft span is approximately 80lbs. While the strength of the brake harness is more than adequate, Lemco Tool recommends checking the cable periodically for frayed wires.
