New!  MacLean Anchor Rod - 3/4in x 66in

MacLean Anchor Rod - 3/4in x 66in


Alternative Views:


TTS PRICE: $57.99

STATUS:  IN STOCK


Availability:
IN STOCK & READY TO SHIP

PRODUCT CODE: MSI-J6526WCA
QUANTITY:


PRODUCT DESCRIPTION


HIGHER SHIPPING COST: Due to its length, this product exceeds standard carrier size limits and FedEx applies an oversize handling surcharge. The good news: the surcharge only applies to the first item, so additional units typically add very little to the shipping cost.

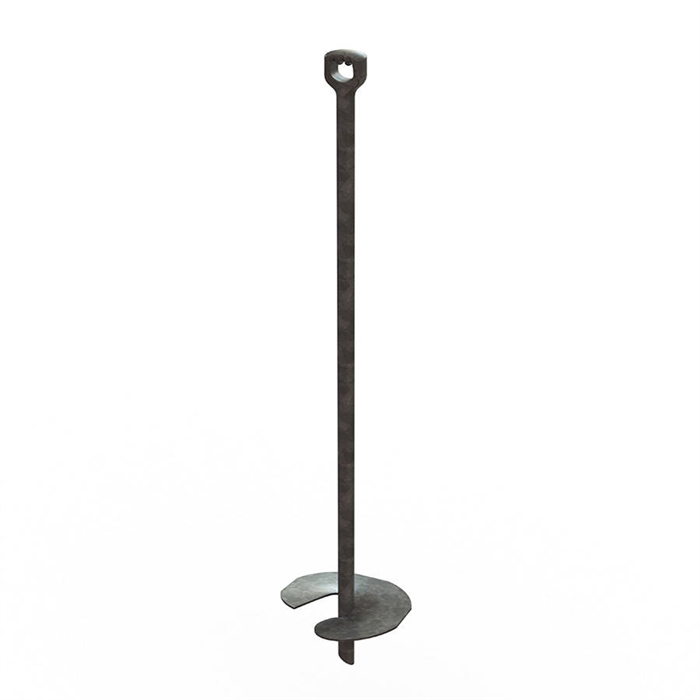

MacLean J6526WCA No-Wrench Screw Anchor - 6" Helix, 3/4" x 66" Rod

The No-Wrench Anchor from MacLean can be placed with power equipment or by hand. MPS No-Wrench Anchors are made of a forged eye anchor rod with a welded helix and angle-cut tip.

The J6526WCA anchor is ideal for use in medium dense to loose soils. The final installed height of the exposed anchor should be 8 to 12 inches above grade level. No-Wrench anchors are Hot Dip Galvanized per ASTM A123.

All No-Wrench Anchors have 3 Guy Attachments.

Use the Anchor Hat for easier installation!

NOTE: Installing procedures and embedment depth must be followed to assure the anchor load capacity.

Features:
  • Install with power equipment or by hand
  • Forged eye anchor rod with welded helix and angle-cut tip
  • For medium dense to loose soils
  • 3 guy attachments
  • Hot dip galvanized per ASTM A123

  • Specifications:
  • Quantity: 1
  • Helix Diameter: 6" (15.2 cm)
  • Rod Diameter: 3/4" (1.9 cm)
  • Rod Length: 66" (167.6 cm), 5.5 ft
  • Weight: 10.9 lb (4.9 kg)
  • Ultimate Holding Strength, Soil Class 8: 1,000 lb (454 kg)
  • Ultimate Holding Strength, Soil Class 7: 2,000 lb (907 kg)
  • Ultimate Holding Strength, Soil Class 6: 4,000 lb (1,814 kg)
  • Ultimate Holding Strength, Soil Class 5: 6,500 lb (2,948 kg)
  • Model: J6526WCA


  • Accessories:
    Part #MacLean #Description
    ANCHOR-HAT-2-4-Anchor Cranker Head (Cowbell) - anchor rod driver

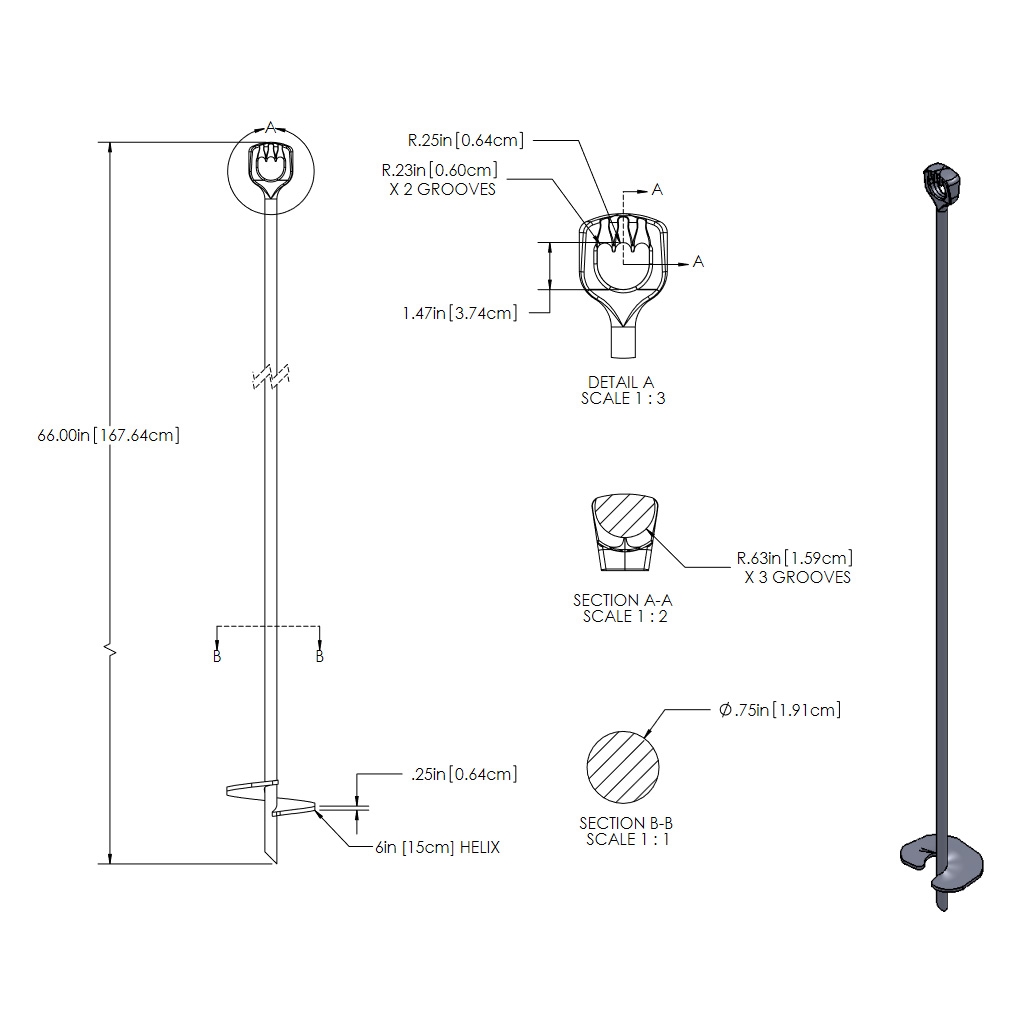

    Drawing Load Capacity Bulletin (PIB074-01)
