Magnespot XR1000 K2 Extended Range Reference Point Locator

Magnespot XR1000 Extended Range Reference Point Locator

Alternative Views:

TTS PRICE: $218.00


Normally Ships Same Day



If your job requires you to blindly drill holes, chances are at some point you've put your drill bit somewhere it doesn't belong. Our customers are continually telling us horror stories of drilling into bathtubs, water pipes, and one even drilled into a grand piano. If only someone created a tool that gives you X-Ray vision and you knew exactly where your drill bit was going before you even pulled the trigger. Well in fact someone did, the clever minds over at LSS engineered the MAGNESPOT XR1000 for this exact headache.

Imagine having a sixth sense that allowed you to see through walls; like X-Ray vision. That is exactly what the XR1000 offers technicians. Simply install the transmitter where you want your drill bit to come out. The receiver will start loudly beeping when it is within 8 feet of the transmitter so you'll know you are close. When you are within 5 feet, the 4 directional arrows will light up and guide you to within 1/2" of your transmitter! It is truly like black magic.

The applications our customers are using the XR1000 for grows daily. It works on floors, walls, ceilings, concrete, metal, wood, plaster, drywall, virtually any surface! While the majority of our customers will be using this unit for drilling, it can be used for anything where you need to find a location through a structure that prevents you seeing the other side.


  • Drilling Through Exterior Walls: Eliminate the possibility of drilling into Exterior Live Power Lines or Water Pipes
  • Drilling From Attics/Basements into Wall Cavity: Eliminate the guesswork of fishing walls!
  • Drilling on Angles/Corners: Great for CCTV Cameras and Satellite Dishes!
  • Finding Reference Points in Complicated Constructions: Eliminate headaches when jobsite has no measurable reference points!
  • Finding Reference Points in Commercial Buildings: Find reference points floor to floor while working in Commercial Buildings

  • Specifications:
  • Maximum Distance: 60" / 5'
  • Audible Range: 96" / 8'
  • Receiver Accuracy: 1/2" @ 20"
  • Transmitter Battery Type: 9V Alkaline (included)
  • Transmitter Battery Life: 4 Hours
  • Receiver Battery Type: 9V Alkaline (included)
  • Receiver Battery Life: 4 Hours

  • Kit Includes:

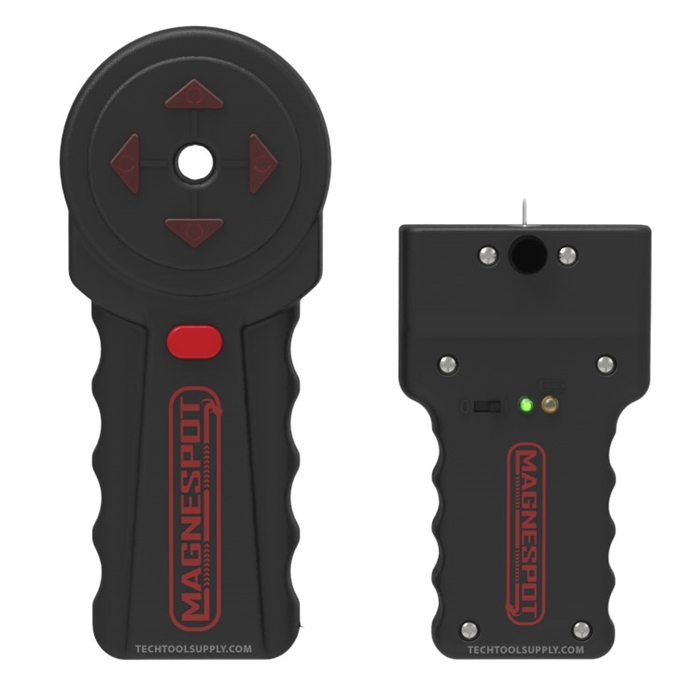

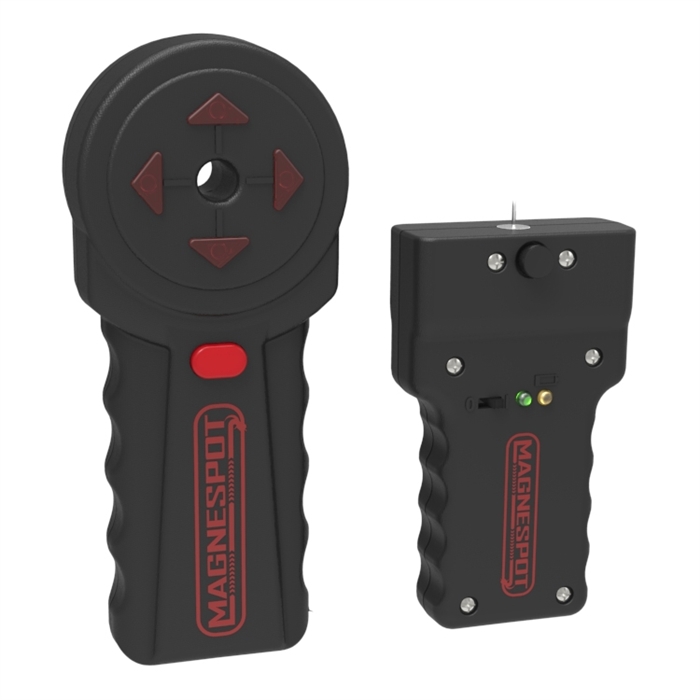

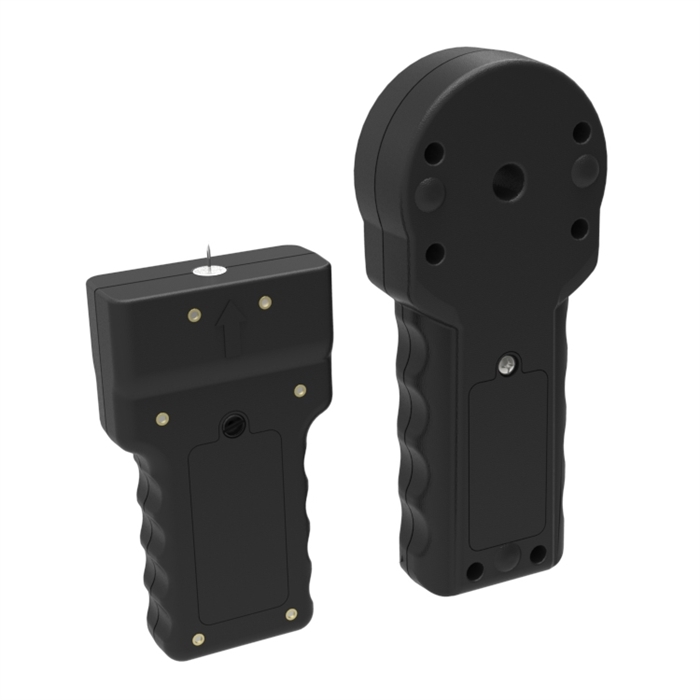

  • Magnespot XR1000 Transmitter
  • Magnespot XR1000 Receiver
  • Quantity 2 9V Batteries
  • Tac Adhesive
  • Operation Instructions

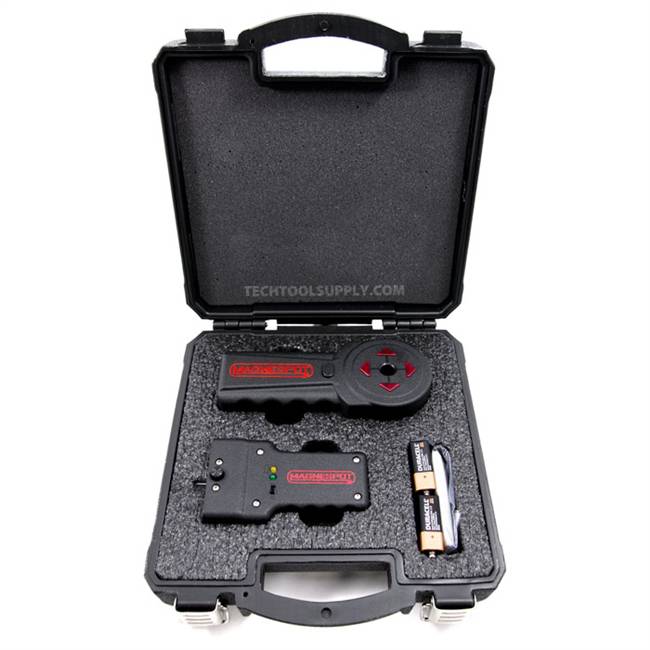

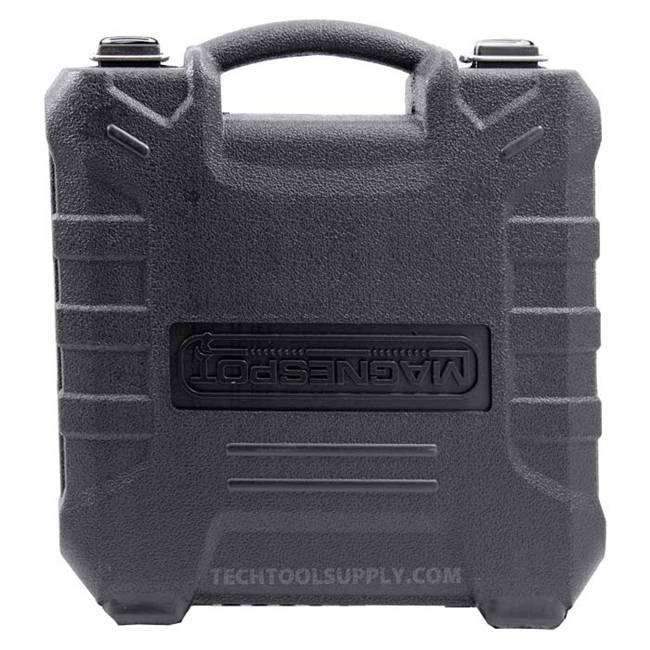

  • Carrying Case

  • Additional Transmitters can be purchased by Clicking Here.

    Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 12 WRITE A REVIEW

      So far, this Product Review was helpful to 0 TTS Customers.
    5 of 5 Great February 11, 2021
    Reviewer: Diego Urquhart from Tyner, NC United States
    Removes the guesswork especially useful when your job requires drilling through a mortar joint.

    Was this review helpful to you?

      So far, this Product Review was helpful to 0 TTS Customers.
    5 of 5 The best tool ever! February 18, 2019
    Reviewer: Oscar Catana from Grass Valley, CA United States
    Honestly this is like a Miracble tool!!! I love it so much. so great and highly recomended to anyones who might be able to use it.

    I install video surveillance cameras and you can't imagine the headache to try to find the right spot. This tool made finding the spot so easy!!

    Was this review helpful to you?

      So far, this Product Review was helpful to 3 TTS Customers.
    5 of 5 Excellent Product July 18, 2017
    Reviewer: Anonymous Person from La Vergne, TN United States
    I have owned the previous version of this product for several years and have been happy with its performance. The new sound feature that has been added to find the spot faster, works wonderfully. It makes finding exact locations on other side of walls easy. No guessing is involved. My job sometimes  requires me to install cable outlets fed from outside walls that are made of brick. Normally you would have to measure distances to find the location you need to drill. This becomes more complicated if I'm adding an outlet on a second floor. This device allows me to drill the hole precisely where I need it in a fraction of the time it would take me to measure points of reference. It is an expensive tool but it is worth the price if you need to find that exact spot. It you use it often, it will save you a lot of time.

    Was this review helpful to you?

      So far, this Product Review was helpful to 0 TTS Customers.
    5 of 5 Fast delivery Awesome product March 8, 2017
    Reviewer: Jason from QLD Australia
    The items arrived 4 days after I ordered.  This is from the U.S to Australia!  Quicker than our local postal service!!  Staff were great to deal with.
    Magnespot works as described.  I arrived yesterday, I already got to put it to use today on a job.  No more worrying about finding exact positions of a wall from the roof or under floors.  I look forward to this making my life easier!

    Was this review helpful to you?

      So far, this Product Review was helpful to 0 TTS Customers.
    5 of 5 Exactly as described December 13, 2016
    Reviewer: Mike Simonet from Brooklyn Park, MN United States
    Arrived quickly, easy to use.  I cant believe that I did not purchase this product until now.  Well worth the price.  Works as described.  Easy to use.

    Was this review helpful to you?
