Miller by Ripley Tools MB02-7024 Corning Multi-Cable Kit - RocketRibbon, RPX, Flat Drop, SST
The Miller MB02-7024 is an MB02 kit set up for Corning® RocketRibbon®, RPX, flat drop and SST cable. Each tray insert is matched to the cable, so you pick the tray and slit - no measuring, no blade adjustment, no guesswork on depth.

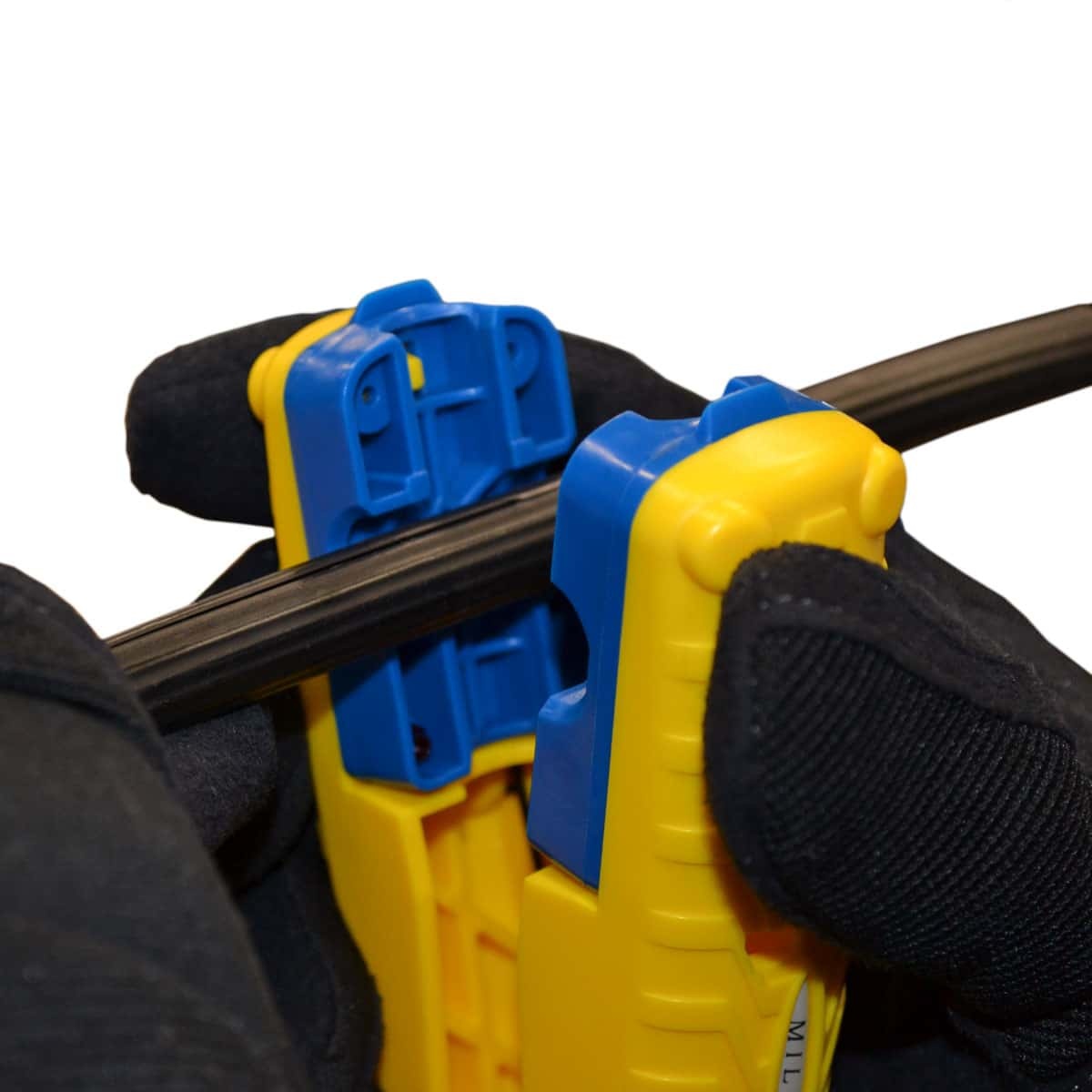

The Miller MB02 is a multi-purpose precision slitter for ring and longitudinal cuts on fiber optic cable jackets up to 0.79" (20 mm). Magnetic, color-coded tray inserts set the blade depth and working range for each cable - snap in the right tray and the factory-set, precision-ground tool steel blades do the rest, with no adjustments.
Features:
Ring and longitudinal cuts on fiber cable jackets up to 0.79" (20 mm)
Interchangeable magnetic tray inserts set blade depth and cable range
Color coding and laser marking identify every tray
Fixed, factory-set precision-ground tool steel blades - no adjustments
Blade design derived from Ripley armor cutting tools
Safe, compact, ergonomic body fits comfortably in hand
Spring-loaded for quick slitting and ringing

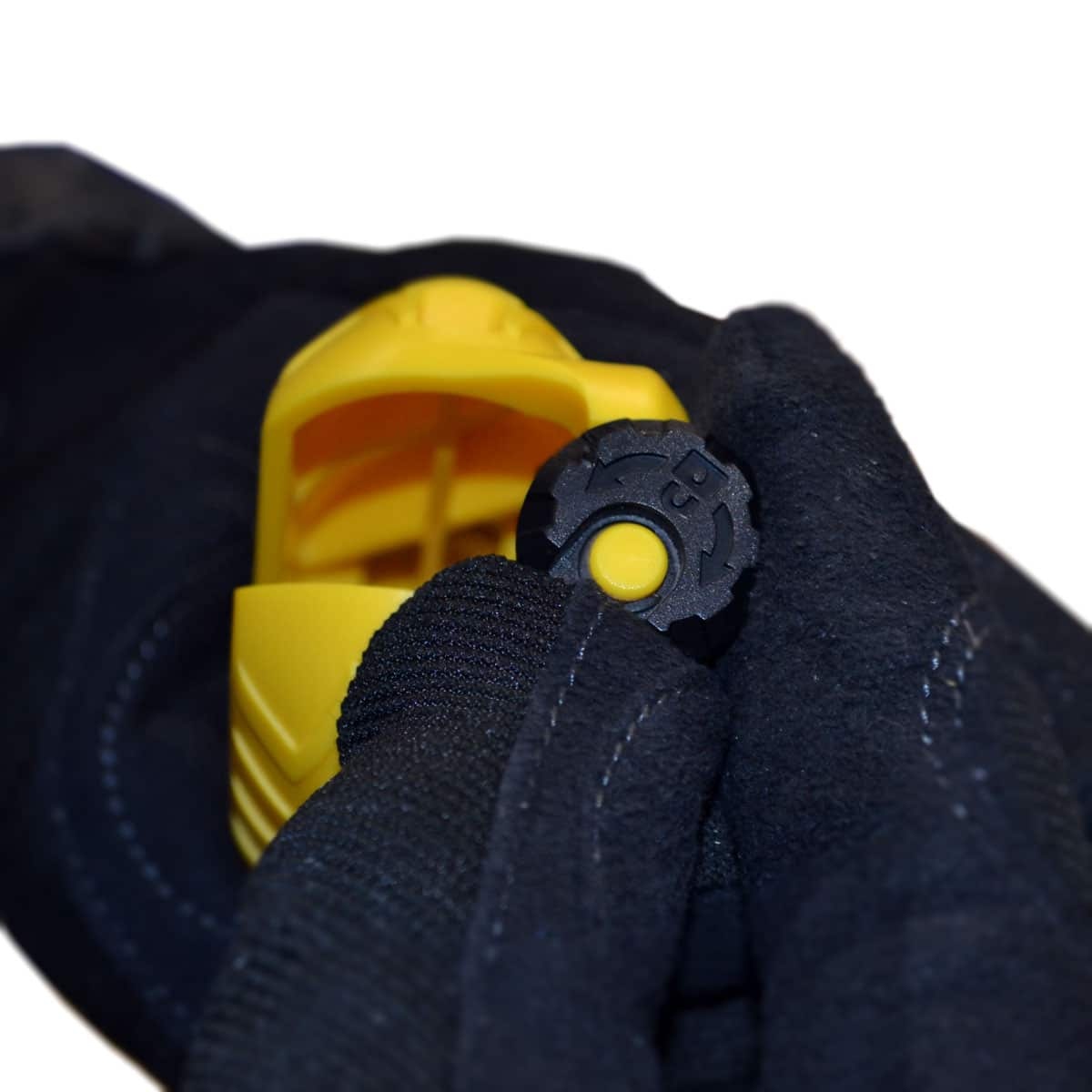

Integrated stowage latch

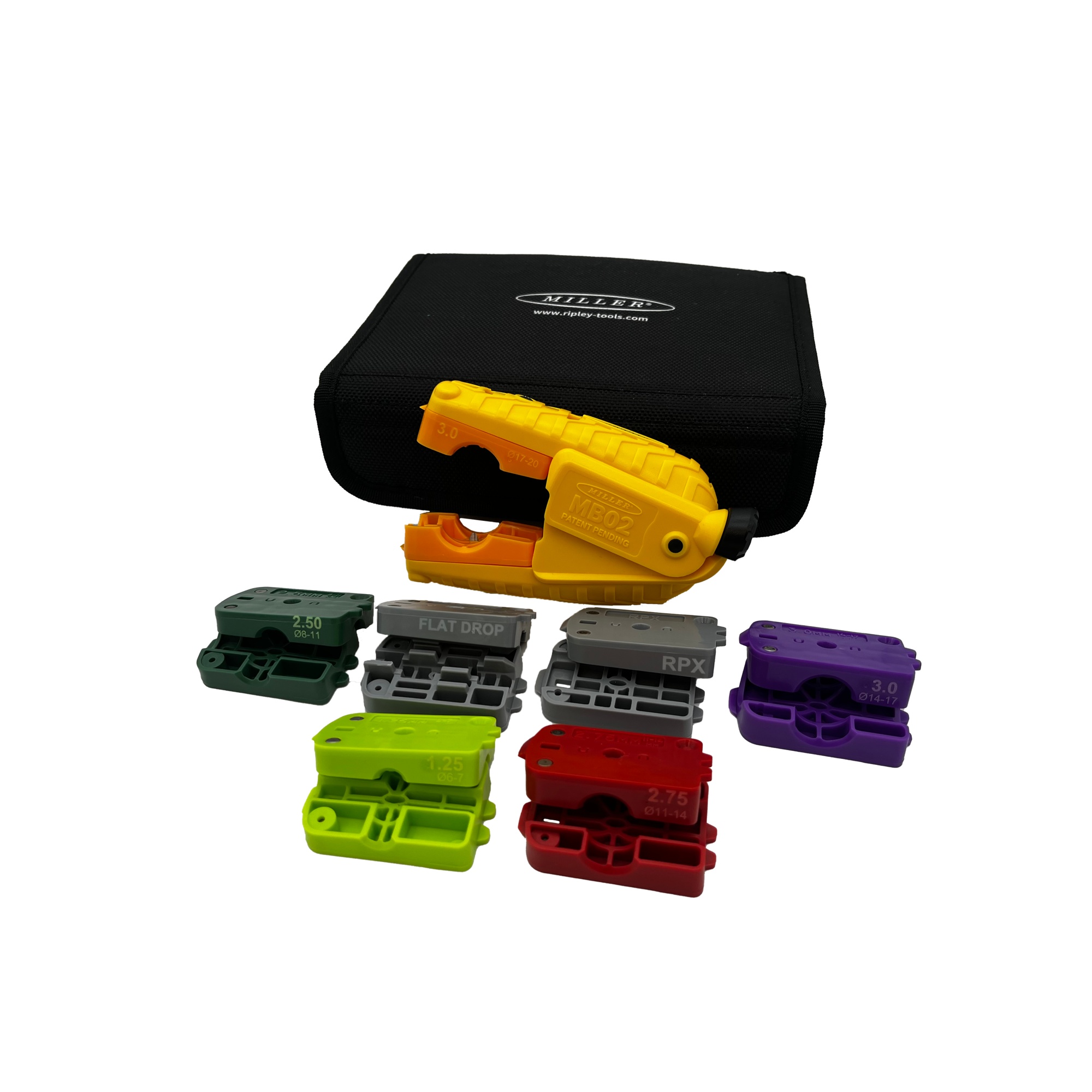

Kit Includes:
1 x MB02 All Purpose Cable Slitter tool
1 x 6-tray pouch
1 x Green Series tray insert set, 8-11 mm, 2.5 mm deep
1 x Grey Series tray insert set, flat drop
1 x Grey Series tray insert set, RPX
1 x Purple Series tray insert set, 14-17 mm, 3 mm deep
1 x Light Green Series tray insert set, 6-7 mm, 1.25 mm deep
1 x Purple Series tray insert set, 11-14 mm, 2.75 mm deep
Specifications:
Compatibility: RocketRibbon® / RPX / flat drop / SST
Max Cable Diameter: 0.79" (20 mm)
Tool Dimensions: 4.9" x 2.25" x 1.7" (124.46 x 57.15 x 43.18 mm)
Tool Weight: 4.8 oz (136 g)
Model: MB02-7024
Available Kits:
| Part # | Model | Ripley # | Application |
|---|
| MIL-MB02-7005 | Tool only with pouch | MB02-7005 | 3.0 - 20.0 mm cable |
| RIP-MB02-7001 | Kit | MB02-7001 | Ducted HD thin-jacket cable, 5-12 mm, 0.4-0.7 mm jacket |
| RIP-MB02-7002 | Kit | MB02-7002 | Corning RPX gel-free ribbon cable |
| MIL-MB02-7010 | Kit | MB02-7010 | 5-14 mm cable, 0.5-3 mm jacket or central tube |
| MIL-MB02-7015 | Tray kit | MB02-7015 | Corning SST jacket & tube, 24-144 fiber |
| MIL-MB02-7016 | Tray kit | MB02-7016 | Corning RocketRibbon 288/432 fiber |
| MIL-MB02-7017 | Tray kit | MB02-7017 | OSP jacket, 6-144 fiber |
| MIL-MB02-7018 | Tray kit | MB02-7018 | Corning RPX & flat drop cable |
| MIL-MB02-7019 | Tray kit | MB02-7019 | Prysmian ADSS jacket, 24-144 fiber |
| RIP-MB02-7022 | Tray kit | MB02-7022 | Central tube access |
| MIL-MB02-7024 | Tray kit (this item) | MB02-7024 | RocketRibbon RPX / flat / SST |
Replacement Parts:
| Part # | Ripley # | Description |
|---|
| - | MB02-7500 | Replacement blade kit - 2 blade modules & mounting hardware |
|
|
|
 |
|
 |
|
