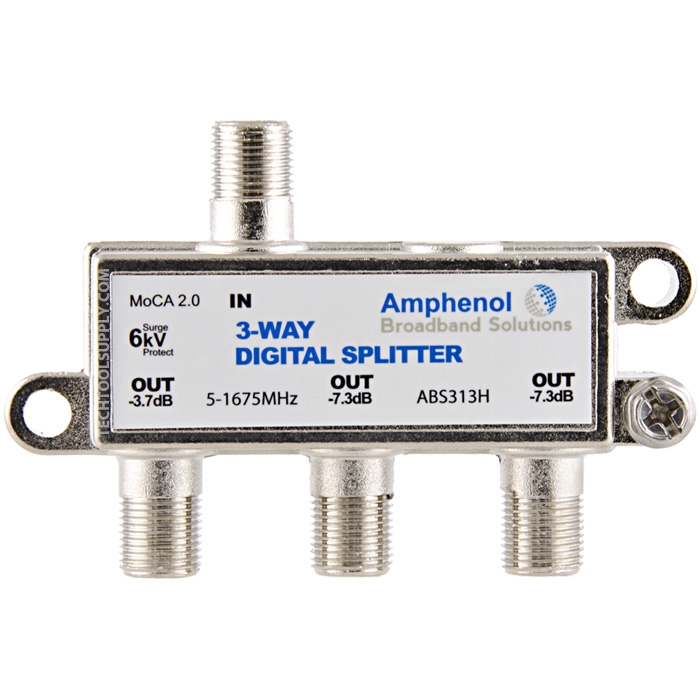

MoCA Broadband Digital 3-Way Splitter

MoCA Broadband Digital 3-Way Splitter




TTS PRICE: $3.49

STATUS:  IN STOCK


Availability:
Normally Ships Same Day

PRODUCT CODE: HOL-ABS313H
QUANTITY:

PRODUCT DESCRIPTION


MoCA technologically continues to evolve and advance as the broadband home networking standard of choice. ABS313H digital splitters are MoCA-optimized for delivering HD media and broadband data throughout the 1125 – 1675 MHz frequency range.

Choose the ABS313H for splitting new and pre-existing coaxial cable runs in SDU’s, MDU’s and small business networks. The ABS313H splitters maintain system integrity and reliability throughout the full 5 – 1675 MHz bandwidth - while maintaining low passive intermodulation. High EMI shielding effectiveness protects against ingress. The ABS313H splitter also ensures mechanical and environmental reliability through pressure-sealed and machined F-ports and 6kV surge withstand.

Features:
  • 5 - 1675 MHz Performance
  • MoCA Network Optimized
  • Low Intermodulation Design
  • 6kV Ring Wave Surge Withstand
  • UL Listed Ground Block
  • Nickel Plated Zinc Die-Cast Housing
  • 15 PSI Pressure-Sealed F-Ports
  • Machine Threaded F-Ports
  • Soldered Back Plate for High EMI Shielding Effectiveness

  • Insertion Loss Frequency (Typical/QC):
  • 5 - 400 MHz: 3.2-7.0 / 3.5-7.5
  • 401 - 600MHz: 3.5-7.3 / 3.7-7.5
  • 601 - 1002MHz: 3.8-7.7 / 4.0-7.9
  • 1125 - 1675MHz: 6.0-11.0 / 6.5-12.0

  • Isolation Frequency (Typical/QC):
  • 5 - 10 MHz: 27 / 25
  • 11 - 65 MHz: 35 / 35
  • 66 - 870 MHz: 27 / 25
  • 871 - 1002 MHz: 25 / 23
  • 1125 - 1675 MHz: 25 / 30

  • Return Loss In Frequency (Typical/QC):
  • 5 - 10 MHz: 22 / 20
  • 11 - 65 MHz: 27 / 25
  • 66 - 870 MHz: 25 / 20
  • 871 - 1002 MHz: 23 / 20
  • 1125 - 1675 MHz: ≥10

  • Return Loss Out Frequency (Typical/QC):
  • 5 - 10 MHz: 22 / 20
  • 11 - 65 MHz: 27 / 25
  • 66 - 870 MHz: 25 / 20
  • 871 - 1002 MHz: 23 / 20
  • 1125 - 1675 MHz: ≥10

  • RFI Frequency (Typical/QC):
  • 5 - 1675: 110

  • Bonding:
  • 8-14AWG Ground Wire

  • Surge Protection (Input/Output):
  • 6kV/200A Ring Wave

  • Specifications are subject to change without notice per Amphenol Broadband Solutions.
