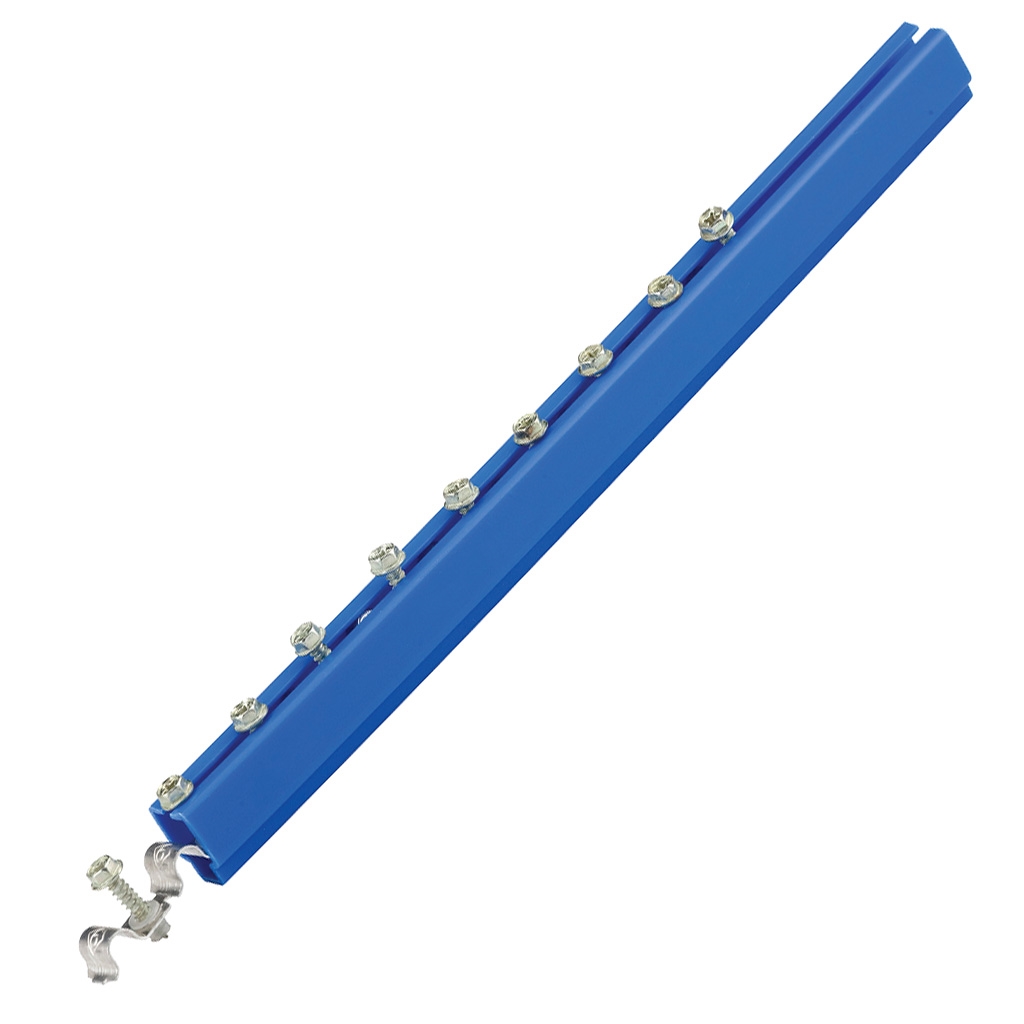

Screw and Snap Clips (24-88016) from PPC secure coaxial drop wire to a subscriber’s premises. Convenient strips of nine clips snap off after installation. For MDU applications, 2 or 3 clips may be ganged together. Secure cable runs to wood, masonry, stucco, brick or concrete, aluminum construction, for #12-14 AWG cabling.
The unique, proprietary approach that PPC has to mechanical galvanizing, and the standards that they insist on for their raw materials, ensure that Diamond parts can withstand corrosive environments for decades, a factor that is important today since replacement costs are so high.
Features:
Clips reduce installation time and handling
Phillips 1/4” hex washer head screws can be installed with a power drill or hand tool
Specially hardened screws treated for extended rust protection
Will withstand 500 hours salt spray results
Can be installed in wood and masonry
For concrete or brick drill pilot hole (0.138” dia. carbide drill) screw flush with power drill socket
Plastic plugs secure screws to strip and prevent torquing
Clips are scored to facilitate snap-off
Cable size stamped on clips
Strips eliminate fumbling for individual clips and screws
Clips made from high-quality aluminum
Specifications:
Quantity: 1 Strip (10 clips)
Cable Size: #12-14 AWG
Screw Size: No. 8x3/4in
Installation:
1. Position end clip on coaxial cable while holding clip next to end clip
2. Drive screw flush with the surface
3. Snap offend clip with “UP and DOWN” motion
4. Do not tear off
