Platinum Tools EZ-RJ45 CAT6 Connectors - Box of 100

Platinum Tools EZ-RJ45 CAT6 Connectors - Box of 100


Alternative Views:


TTS PRICE: $65.41
Sale Price: $61.87


STATUS:  IN STOCK

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: 100010B
QUANTITY:

PRODUCT DESCRIPTION

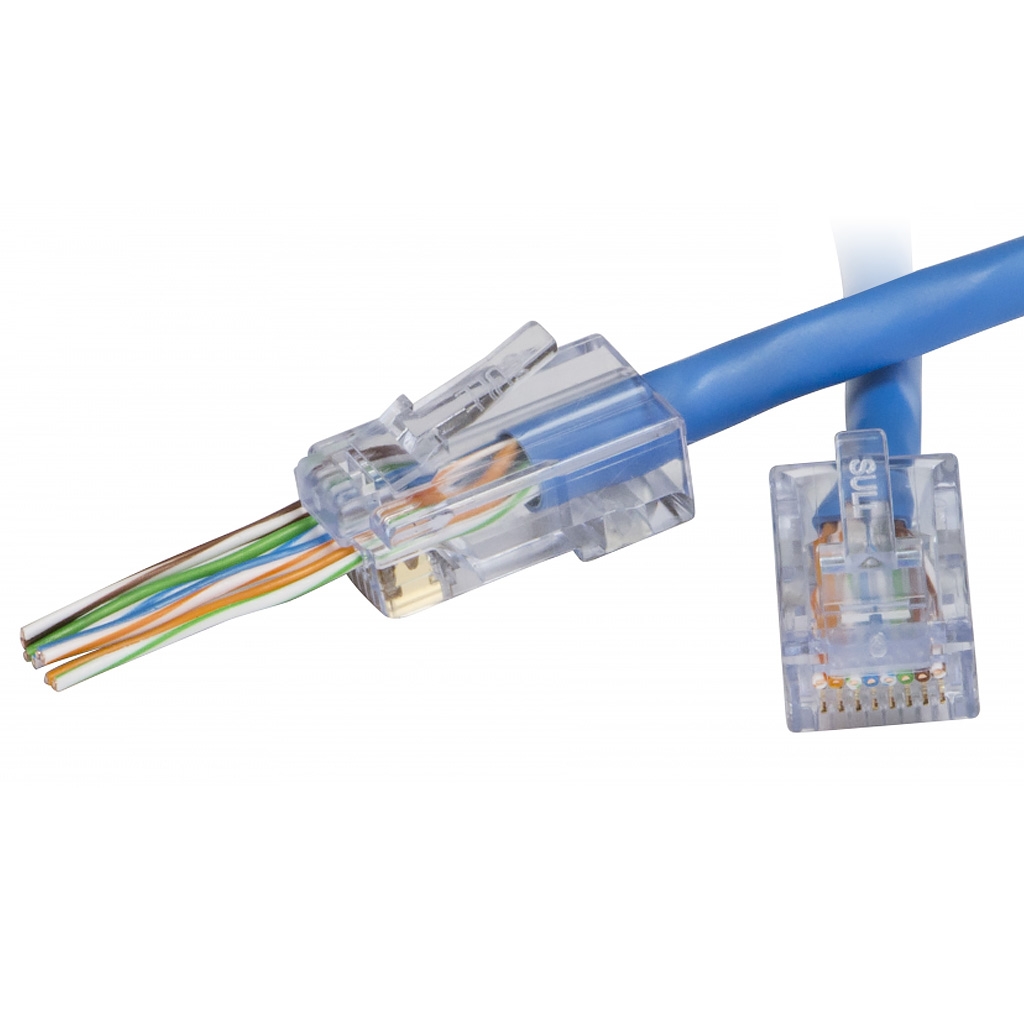

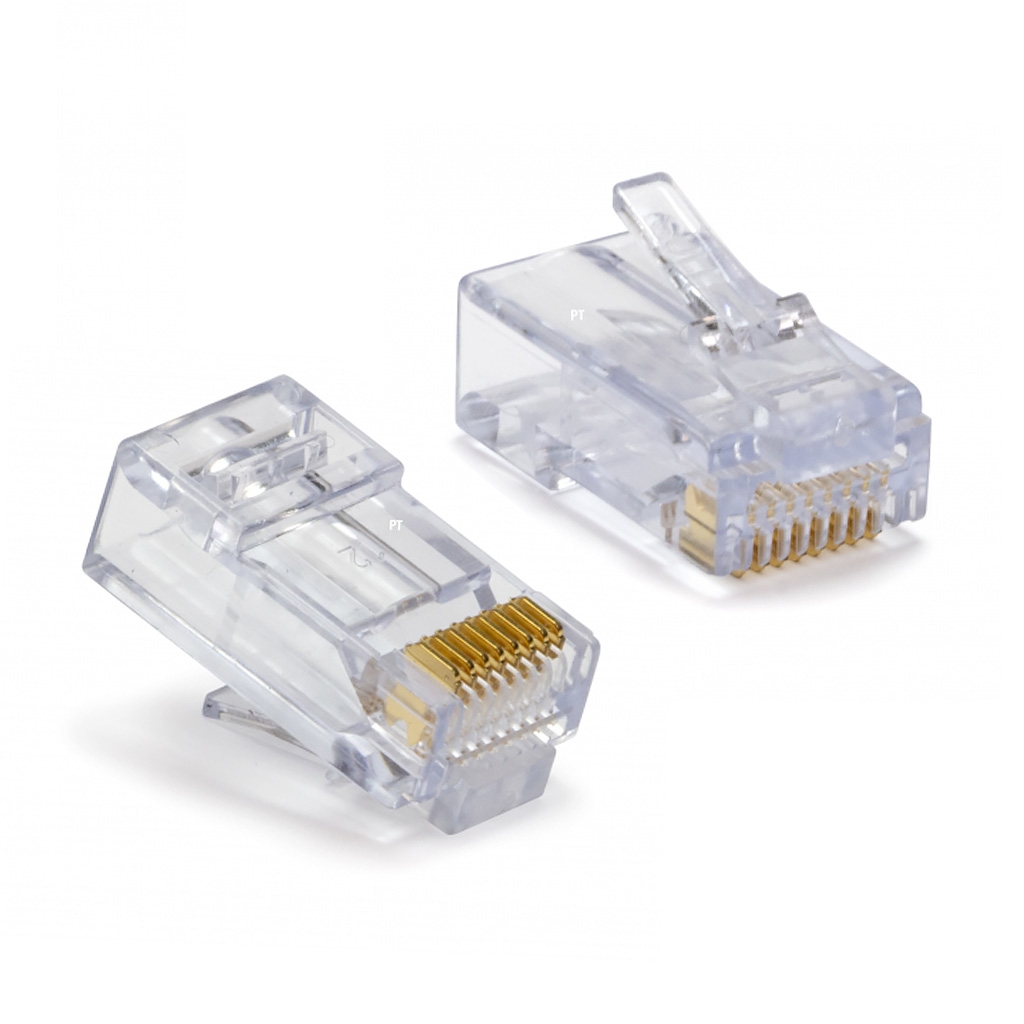

The Original 100010B EZ-RJ45 CAT6 Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician to easily verify the proper wiring order. The electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is optimized!

WARNING: Platinum’s EZ-RJ45 connectors and crimp tools are designed to work as a system. Platinum Tools’ products are NOT intended to be compatible with other brands and such unintended use can result in bad connections, breakage, and human safety hazards, and will also void the warranty. Platinum is not responsible for any unintended uses of its products.

Features:
  • For use in Cat 6 compliant data networks
  • EZ to verify wire sequence
  • Works with solid or stranded wire
  • Faster terminations with reduced scrap
  • Simple one piece design...no bars or liners
  • Rated to 1 Gb
  • Made in USA

  • Specifications:
  • Quantity: 100
  • Max Cable Outer Diameter: 0.275” (6.98mm)
  • Max Insulation Diameter (Conductors): 0.040” (1.016mm)
  • Solid or Stranded: 24 – 23 AWG
  • Contacts: 50 micron gold plated
  • Color: Clear/Transparent
  • Meets ANSI/EIA/TIA/TAA specifications
  • UL Listed E188111, UL94 V-0 and RoHS3/FCC compliant

  • Compatible Crimp Tools:
  • PLA-100062C - Platinum Tools EXO Crimp Frame w/ EZ-RJ45 Die
  • 100054 - Platinum Tools Heavy Duty EZ-RJ45 Crimping Tool
  • 100004C - Platinum Tools EZ-RJ45 Crimp Tool

  • CAT6 Cable/Connector Compatibility
    Please Note: Pictured strain relief is not included
