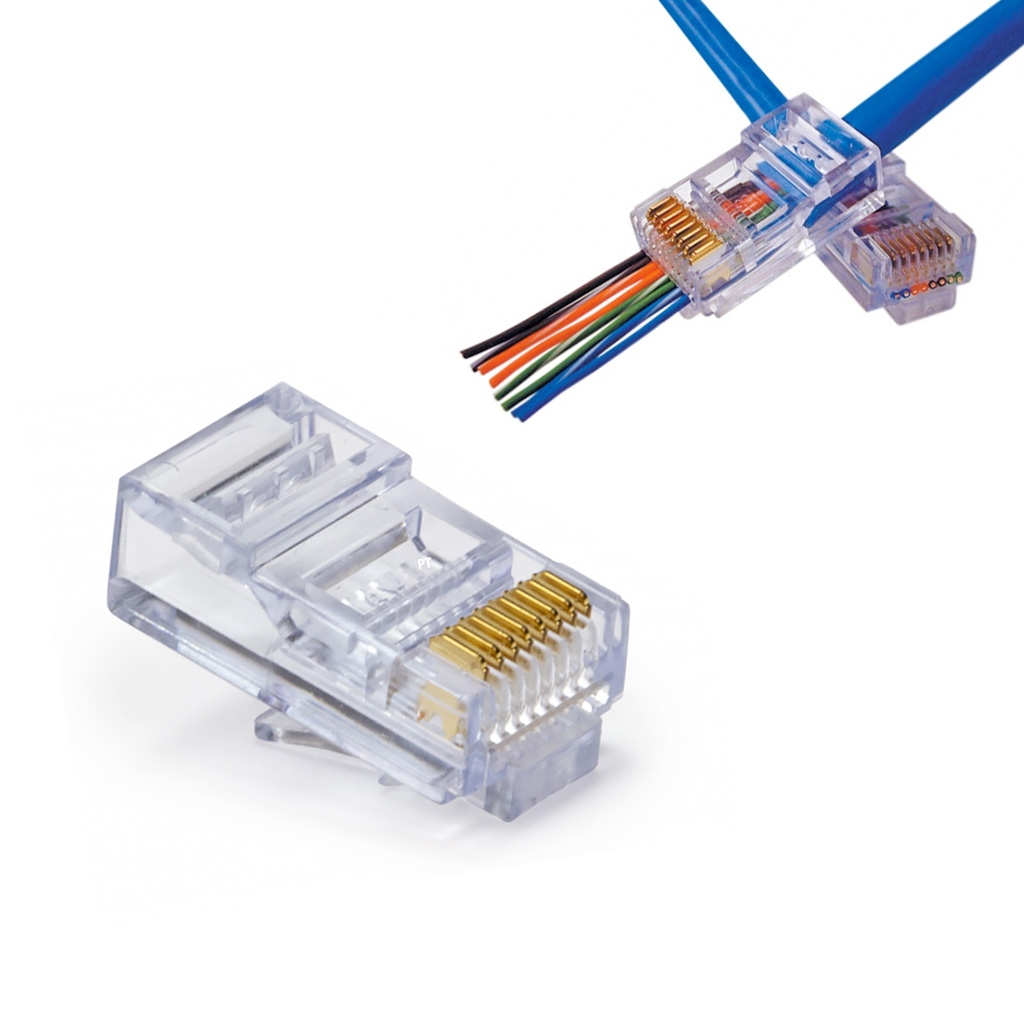

The Original 100003B EZ-RJ45 CAT5e Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician to easily verify the proper wiring order. The electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is optimized!
WARNING: Platinum’s EZ-RJ45 connectors and crimp tools are designed to work as a system. Platinum Tools’ products are NOT intended to be compatible with other brands and such unintended use can result in bad connections, breakage, and human safety hazards, and will also void the warranty. Platinum is not responsible for any unintended uses of its products.
For use in Cat 5/5E compliant data networks
EZ to verify wire sequence
Works with solid or stranded wire
Faster terminations with reduced scrap
Simple one-piece design...no bars or liners
Rated to 1 Gb
Made in the USA
Max Cable Outer Diameter: 0.240” (6.09mm)
Max Insulation Diameter (Conductors): 0.040” (1.016mm)
Solid or Stranded: 24 – 23 AWG
Contacts: 50-micron gold plated
Meets ANSI/EIA/TIA/TAA specifications
UL Listed E188111, UL94 V-0 and RoHS3/FCC compliant
Compatible Crimp Tools:
PLA-100062C - Platinum Tools EXO Crimp Frame w/ EZ-RJ45 Die
100054 - Platinum Tools Heavy Duty EZ-RJ45 Crimping Tool
100004C - Platinum Tools EZ-RJ45 Crimp Tool
