Belden 1694ABHD1 6 GHz RG6 HD BNC Compression Connector - 1pc

TTS PRICE: $4.27

STATUS:

IN STOCK

Availability:

IN STOCK & READY TO SHIP

PRODUCT CODE: BEL-1694ABHD1

QUANTITY:

PRODUCT DESCRIPTION

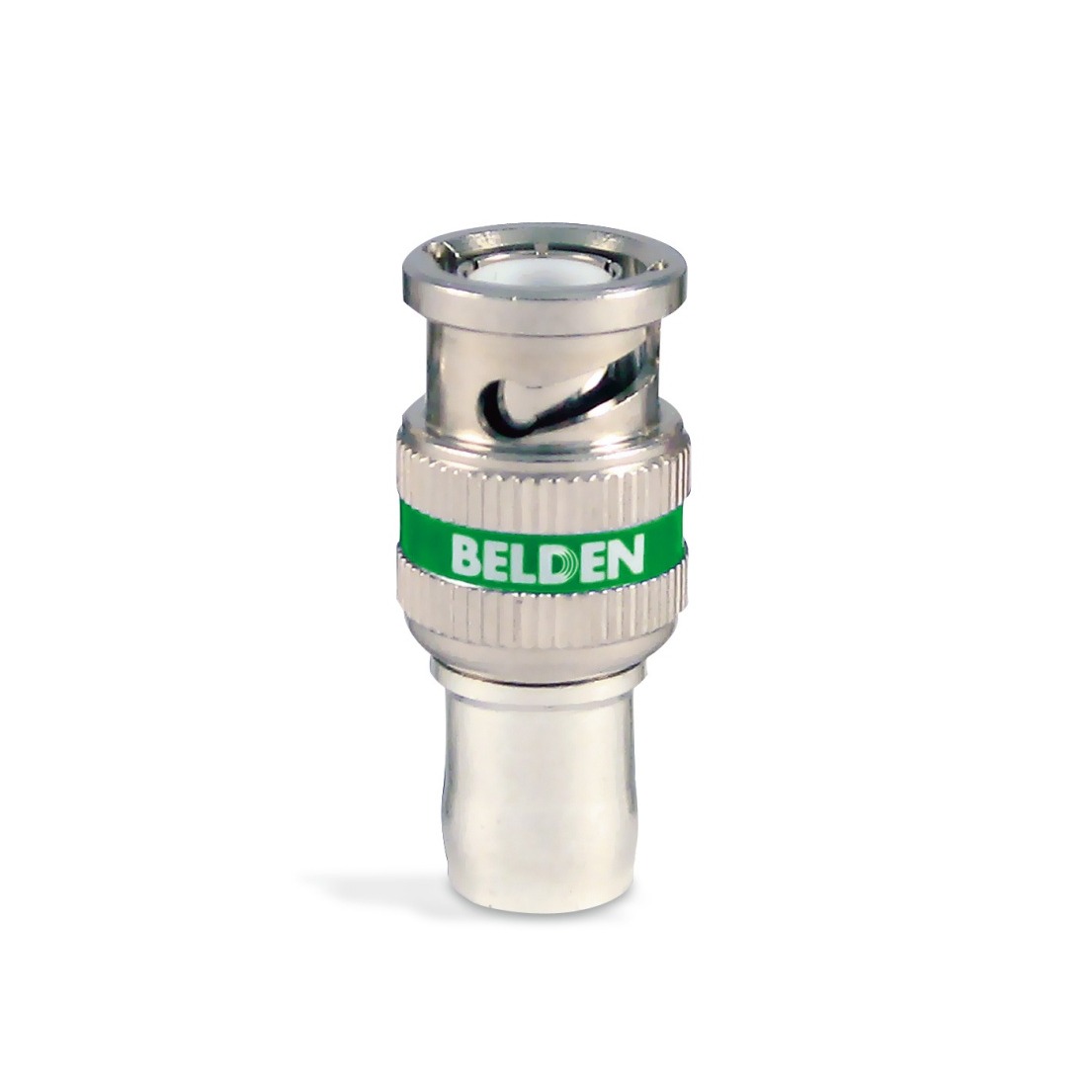

Belden 1694ABHD1 6 GHz RG6 HD BNC Compression Connector - 1pc

The Belden 1694ABHD1 is a one-piece 6 GHz HD BNC compression connector for RG6 coax, built for broadcast and pro video runs on Belden 1694A. It is rated for SMPTE 2081-1 6 Gb/s UHDTV and SMPTE 424M 3 Gb/s HD-SDI 1080P signals, so the connector is never the weak link in an HD-SDI or 4K video chain.

Nickel plated brass nut and body, a gold plated brass contact and a PTFE insulator hold a true 75 Ohm path, with return loss that meets or beats SMPTE 2081-1. The green color band marks it as an RG6 connector on the patch panel.

Compresses with the Belden CPLCRBC-BR Double Bubble Compression Tool; strip with the Belden PSA59/6 Coax Stripper.

Features:

One-piece HD BNC compression connector for RG6 (Belden 1694A)

6 GHz rated - SMPTE 2081-1 6 Gb/s UHDTV and SMPTE 424M 3 Gb/s HD-SDI 1080P

Return loss meets SMPTE 2081-1 or better

Gold plated brass contact; nickel plated brass nut and body; PTFE insulator

True 75 Ohm impedance

Green color band (RG6)

Specifications:

Model: 1694ABHD1

Series: Belden HD

Interface: BNC male plug
