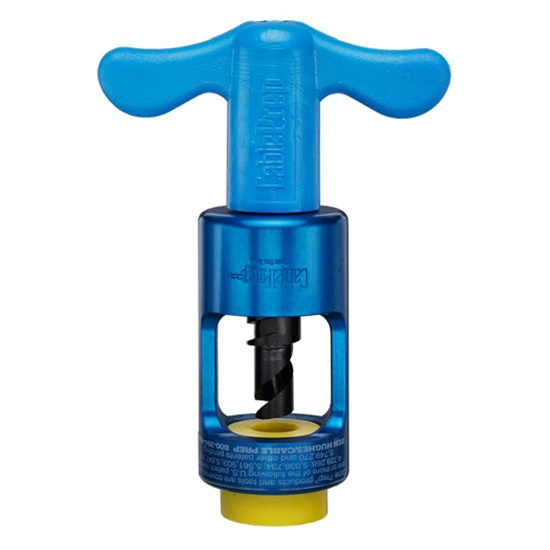

Cable Prep SCT-565-ALU, PIII and TX Cable Strip/Core Tool

Cable Prep SCT-565-ALU, PIII and TX Cable Strip/Core Tool


TTS PRICE: $93.99


STATUS: ON ORDER

Free Shipping

Availability:
SHIP ESTIMATE 5-7 DAYS

PRODUCT CODE: CPR-SCT-565-ALU
QUANTITY:

PRODUCT DESCRIPTION


The SCT-565-ALU stripping/coring tool is two tools in one. SCT cable strippers remove the aluminum sheath without scoring, while the cable coring function cores the dielectric and bevels the outer conductor on hardline cables. SCT stripping/coring tools work on 0.412″ through 1.000″ hardline cables, including PIII, T10, TX10, CommScope® Power Feeder, Times Fiber 50-ohm, PB10, MC2, and comparable HFC cables.

Features:
  • Performs 3 functions at once: strips back and bevels the outer conductor and cores the dielectric in one operation
  • Perfectly aligned coring and stripping blades
  • Blades manufactured from high-alloy tool steel that is heat treated to full hardness
  • Beveled edges remain sharp over long life
  • Precision performance
  • Prevents O-Ring damage
  • Operate manually or with a drill

    • Specifications:
  • Cable: 565
  • Color Code: Orange
  • Body: Aluminum
  • Weight: 11.5

    • Available Sizes:
    Part #CableColor Code
    CPR-SCT-412-ALU.412 PIII & T10Light Blue
    CPR-SCT-500-ALU.500 PIII & T10Yellow
    CPR-SCT-565-ALU.565 PIII & TX10 (this item)Orange
    CPR-SCT-625-ALU.625 PIII & T10Green
    CPR-SCT-625/50-ALU.625 Times Fiber 50-OhmGreen
    CPR-SCT-625/PF-ALU.625 CommScope Power FeederGreen
    CPR-SCT-700-ALU.700 PIII & TX10Maroon
    CPR-SCT-750-ALU.750 PIII & T10Red
    CPR-SCT-840-ALU.840 PIII & TX10Light Grey
    CPR-SCT-875-ALU.875 PIII & T10Grey
