Simply45 Standard Cat5e UTP RJ45 Connectors - 100pc Jar

Simply45 Standard Cat5e UTP RJ45 Connectors - 100pc Jar


Alternative Views:
TTS PRICE: $47.99

STATUS:  IN STOCK

Free Shipping

Availability:
IN STOCK & READY TO SHIP

PRODUCT CODE: S45-1000
QUANTITY:

PRODUCT DESCRIPTION

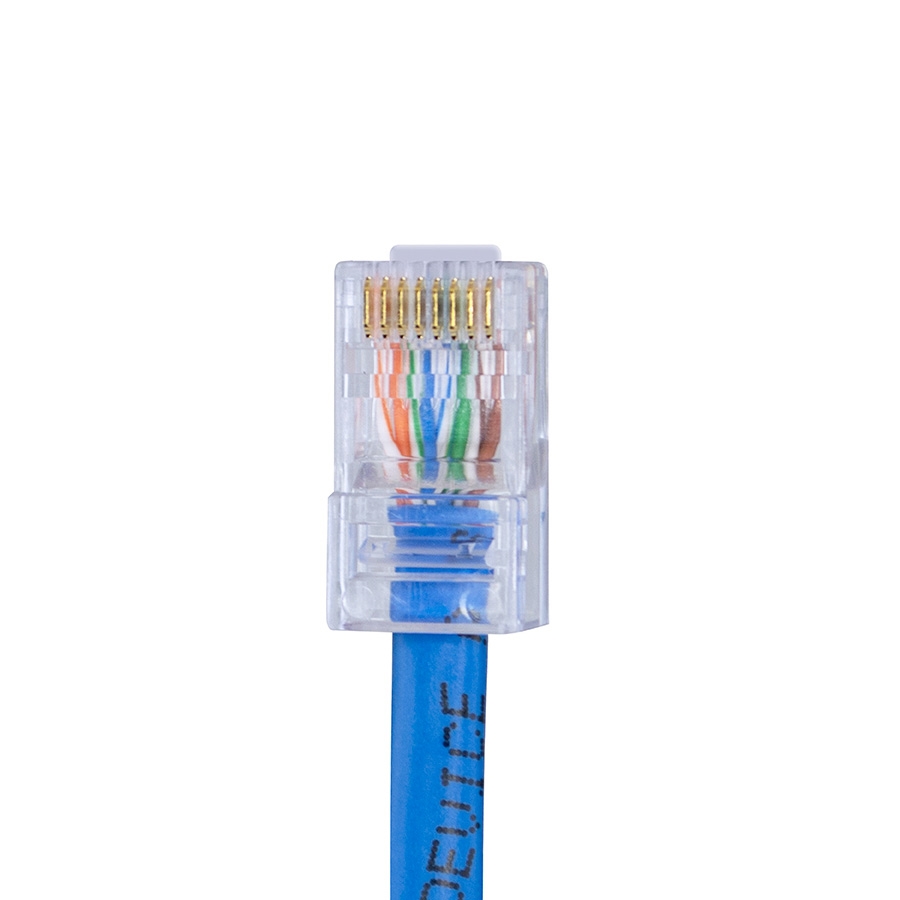

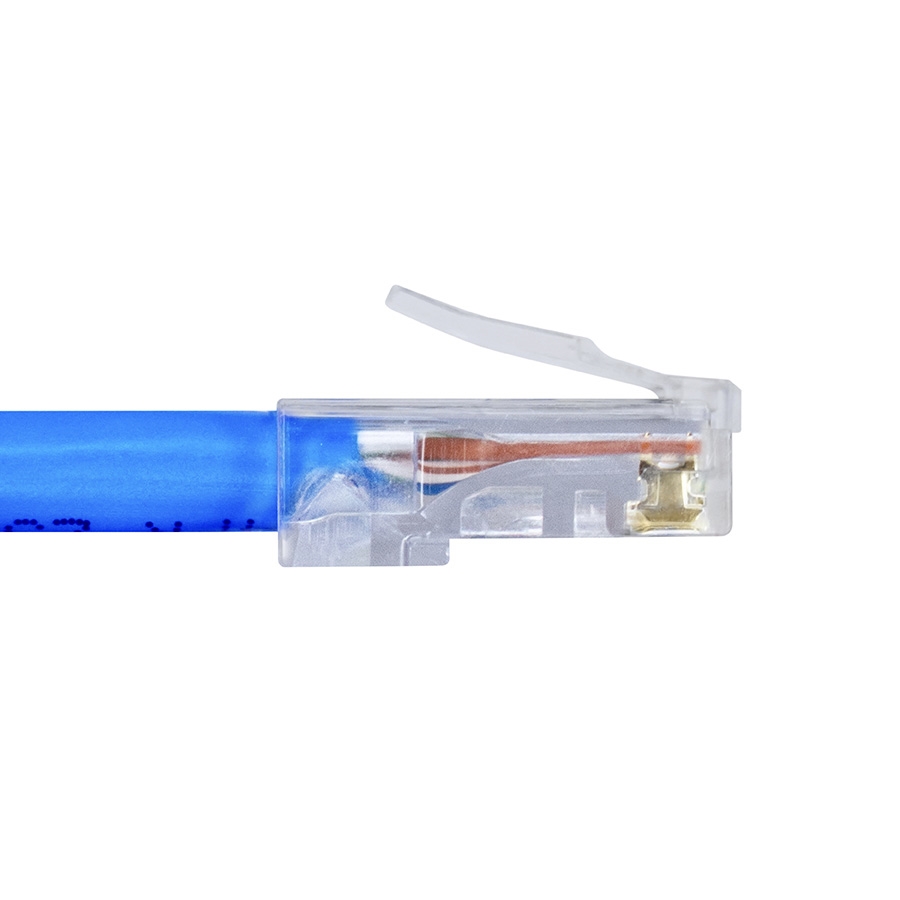

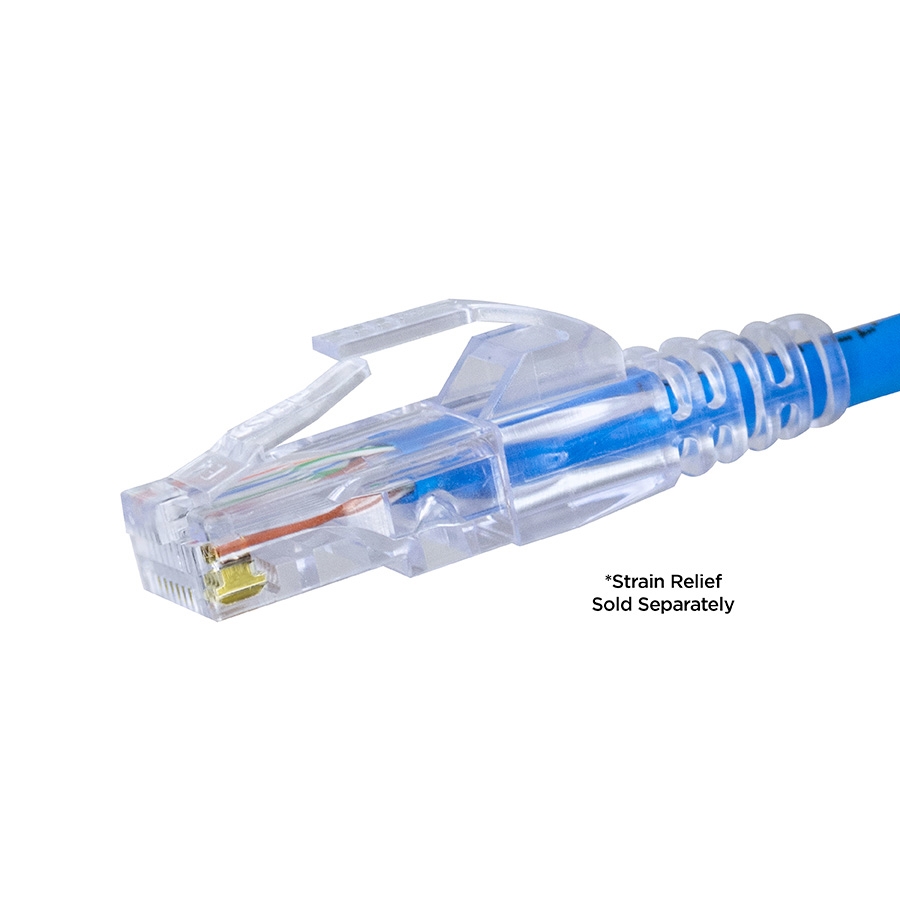

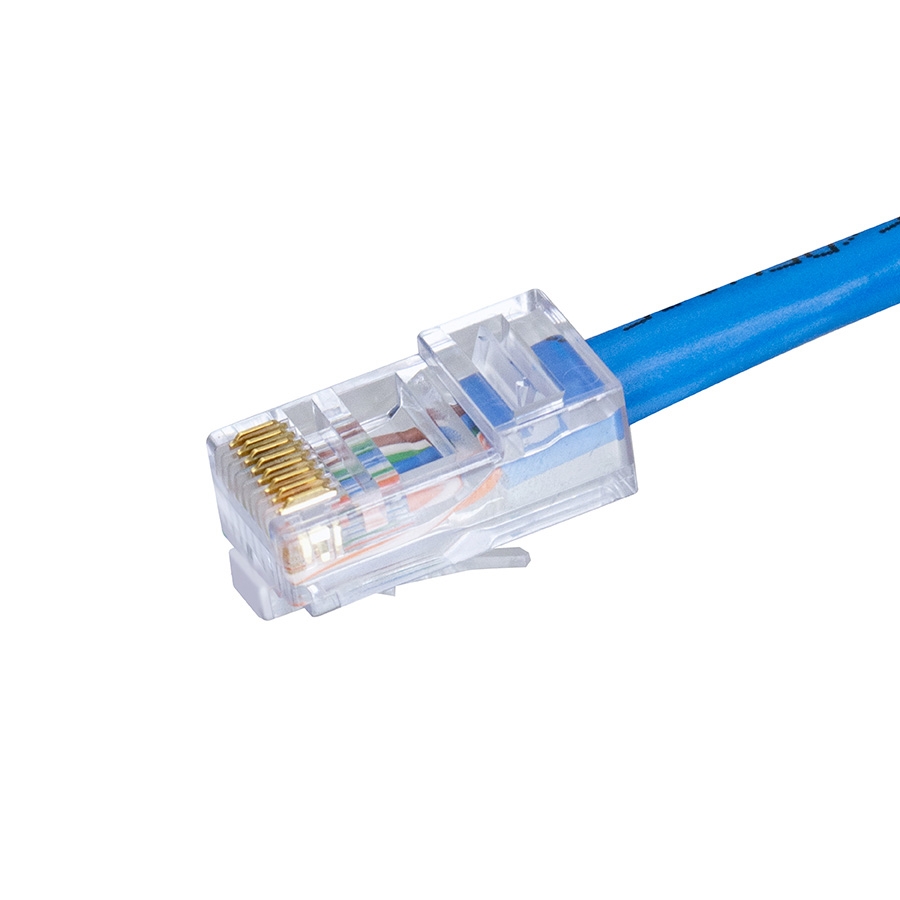

The S45-1000 is a single piece unshielded Standard WE/SS RJ45 modular plug for unshielded LAN cables. No-load bar required. It supports performance standards: ANSI/TIA 568.2-D for Cat5e; ISO/IEC 11801 Class D; and applicable patch cord standards for Cat6 and Cat5e.

The S45-1000 is ideal for most Cat5e UTP (unshielded twisted pair) solid 24 AWG LAN cables and stranded 28-26 AWG with wire conductor sizes 0.95mm – 1.05mm (0.037” – 0.041”). The S45-1500 works great with most Cat6 and Cat5e stranded unshielded LAN cables used for patch cords/leads.

Features:

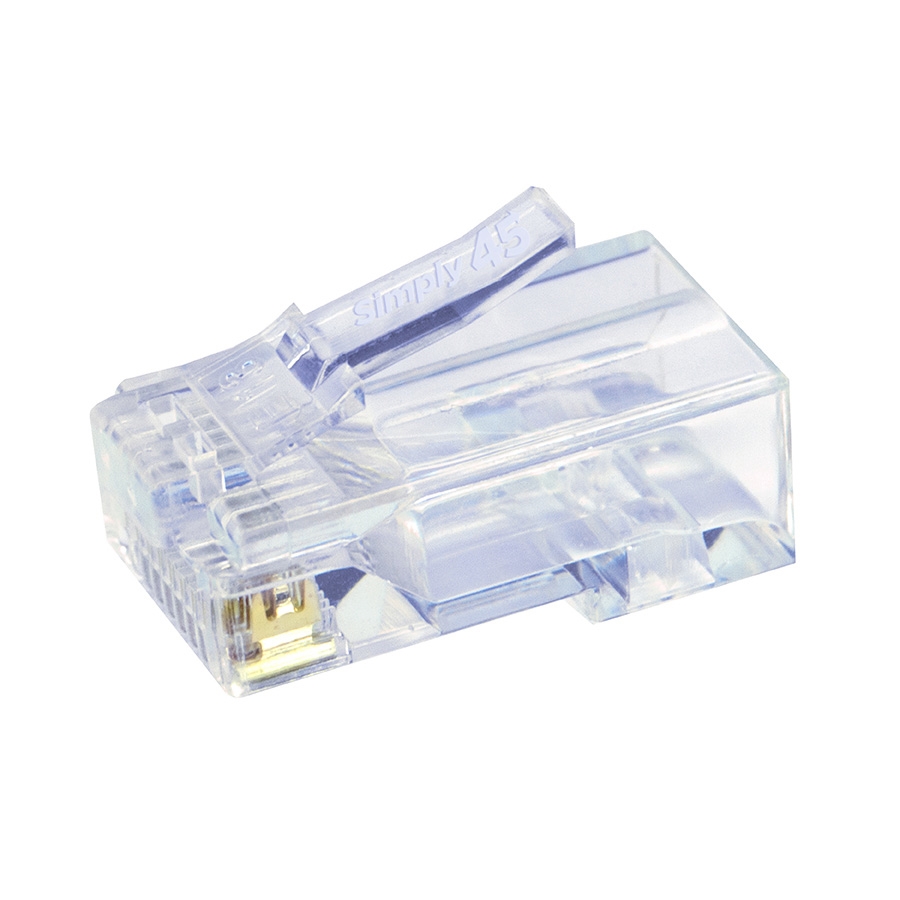

  • Single Piece Design

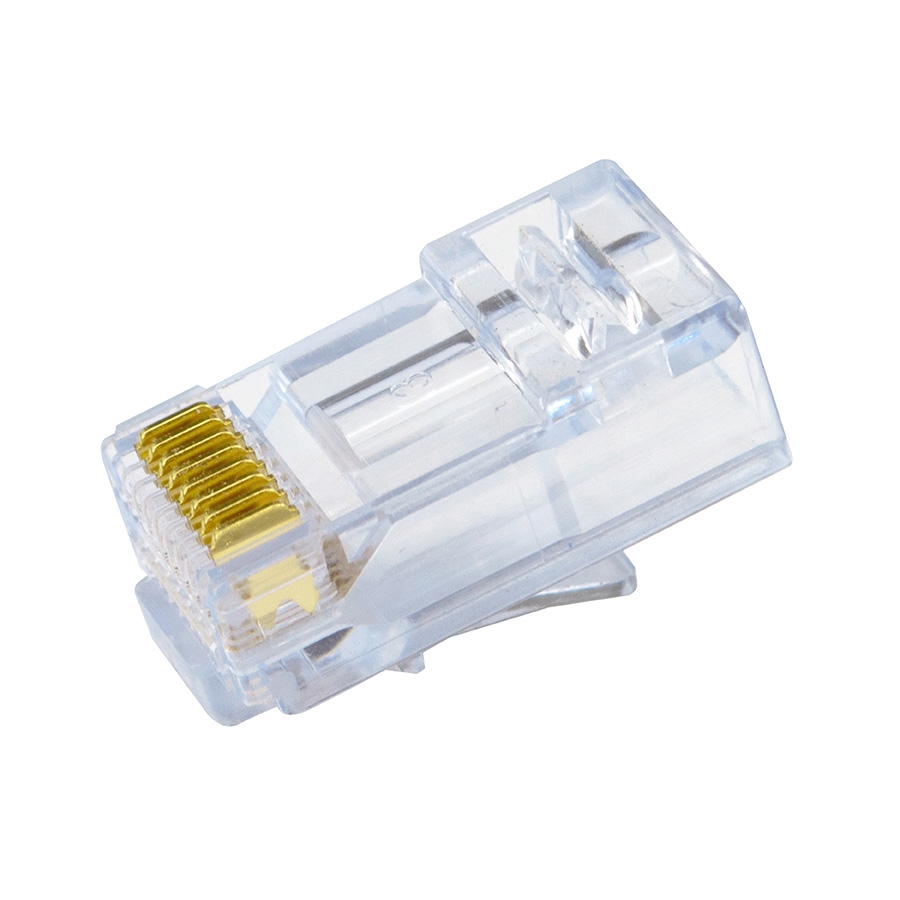

  • 3 Prong Pin Design with 50µ of True 24ct Gold Plating
  • Solid and Stranded LAN Cables
  • Improved Crosstalk Performance
  • Commercial Rated
  • Color Tinted RJ45 Modular Plugs

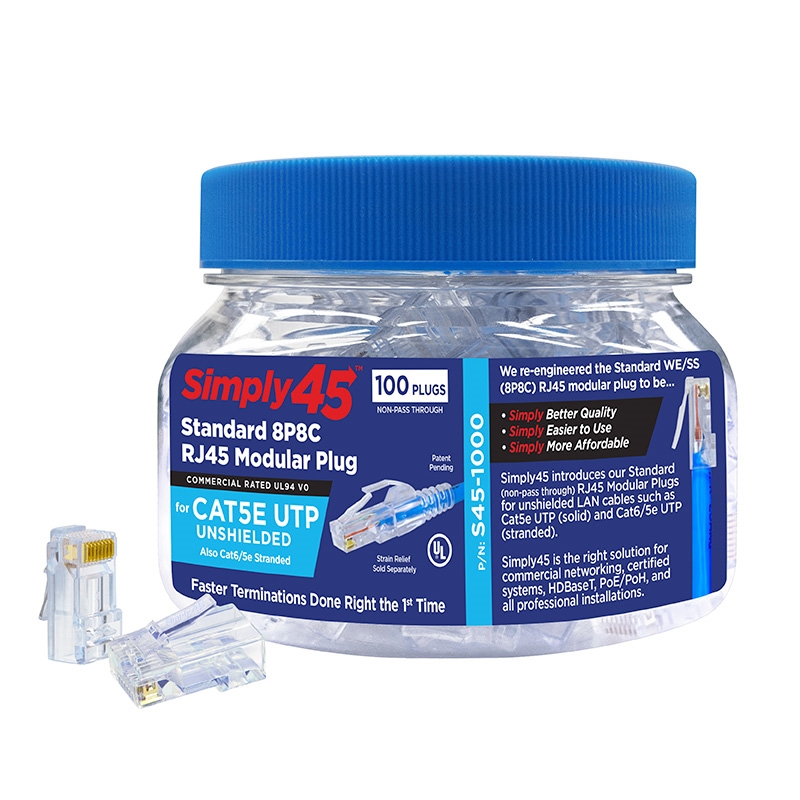

  • Wide Mouth Jar for Easy Hand Access
  • Color-Coded Jar Cap
  • UL Listed
  • PoE/PoH Rated
  • Compliant with Industry Standards
  • Lifetime Warranty

    • Specifications:
  • Performance: Meets or Exceeds ANSI/TIA 568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
  • Wire Cond(s) OD: 24 AWG Solid/ 28-26 AWG Stranded: 0.95mm - 1.05mm (0.037” - 0.041”)
  • Max LAN Cable OD: 6.4mm (0.252”)
  • Supports PoE/PoH: Yes
  • Cable Fire Resistance Ratings: Commercial Rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroClass
  • Flame Autoextinguish: UL 94V-0, IEC 60695-11-10
  • Contact Material: Phosphor Bronze - .012" thick
  • Contact Plating: Min 50 Micro-Inch Pure Gold - 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68)
  • Plug Material: Polycarbonate
  • Plug Tolerances and Dimensions: Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68)
  • Conductor Type(s): Solid and Stranded
  • Operating Temperature: -40º C to +70º C
  • Insertion/Extraction Life: 2000 Minimum Cycles
  • Contact Resistance: 20 Milli-Ohms max
  • Current/Voltage: 30 VAC/42 VDC at 1.5 Amps
  • Compliance: UL Listed, RoHS, FCC, NEC
    		•
